iiyama ProLite XUB2395WSU 23" IPS WUXGA 16:10 Height Adjustable Monitor with Speakers

Display Characteristics

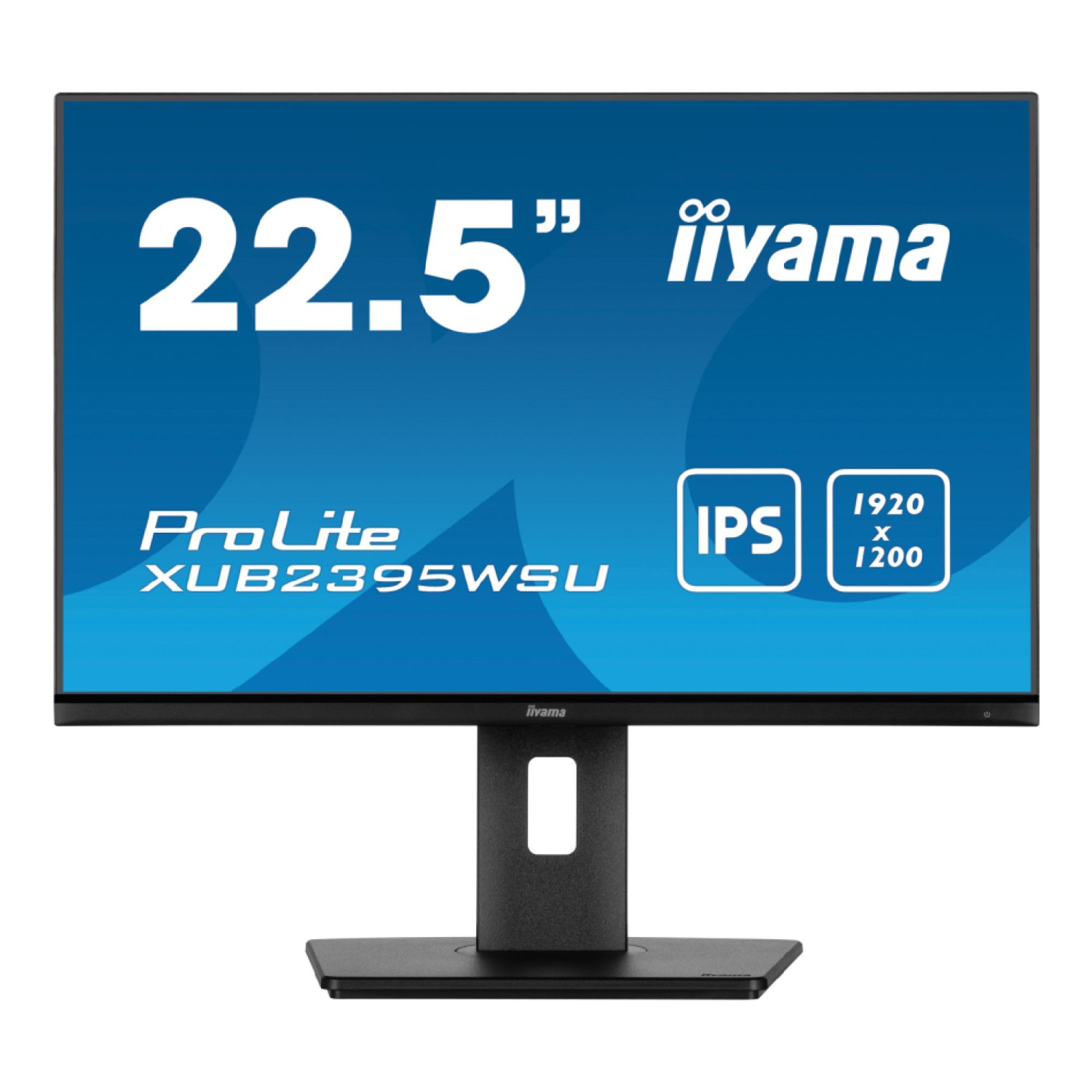

This monitor features a 3-side borderless design and has a screen diagonal of 22.5 inches (57 cm). It uses an IPS LED panel with a matte finish and supports a native resolution of 1920 x 1200 (2.3 megapixel WUXGA) with a 16:10 aspect ratio. The panel brightness is rated at 250 cd/m², with a static contrast ratio of 1000:1 and an advanced contrast ratio of 5 million to 1. It offers a response time of 4ms (GTG) and wide viewing angles of 178° horizontally and vertically, with 89° in each direction.

The monitor supports 16.7 million colours, covering 99% of the sRGB gamut and 72% of NTSC. The horizontal sync range is between 48 and 75 kHz. The viewable area measures 488.2 x 297.2 mm (19.2 x 11.7 inches), with a pixel pitch of 0.254 x 0.248 mm. The monitor comes in a matte black colour.

Interfaces, Connectors, and Controls

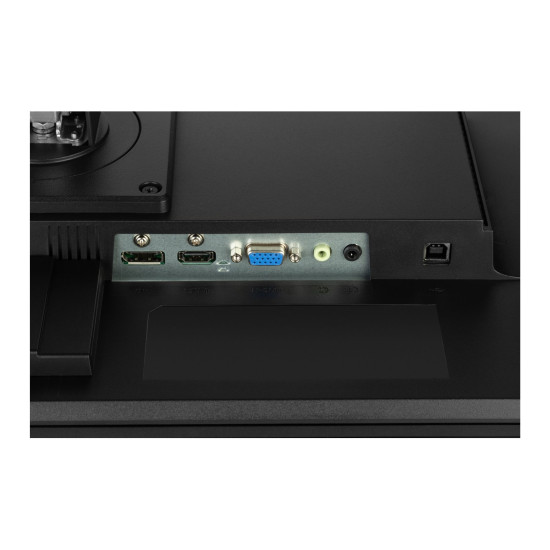

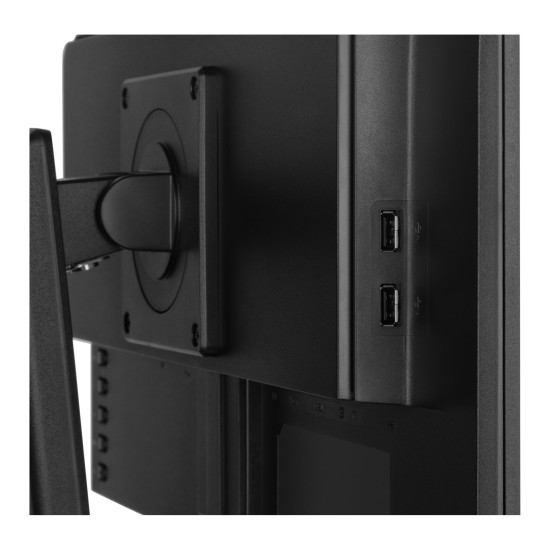

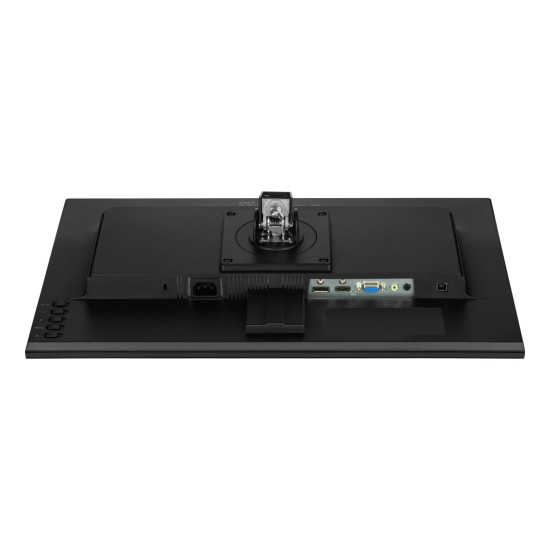

For connectivity, the monitor includes one VGA port (maximum resolution 1920 x 1200 at 60Hz), one HDMI port (1920 x 1200 at 60Hz), and one DisplayPort (1920 x 1200 at 75Hz). A USB hub is integrated with two USB 2.0 ports (DC 5V, 500mA). It supports HDCP and includes a headphone connector.

Features

This monitor is equipped with blue light reduction and flicker-free technology. Adaptive Sync is supported via DisplayPort. Additional features include i-Style Colour and support for multiple OSD languages, including English, German, French, Russian, Japanese, Dutch, and Polish.

The control buttons include Auto/Signal Select, -/ECO, +/Volume, Menu, and Power. User controls allow for adjusting luminance (contrast, brightness, i-Style colour, ACR, Eco), image settings (pixel clock, phase, horizontal and vertical position, aspect ratio), colour settings (gamma, 6-axis colour control, colour temperature), and OSD settings (position, timeout, language). Extra features include reset, DDC/CI, signal selection, overdrive, audio source selection, opening logo, FreeSync toggle, and system information.

Integrated audio is provided by two 2W speakers. Additional convenience features include Kensington-lock compatibility, DDC/CI, DDC2B, and Mac OSX support.

Mechanical Adjustments

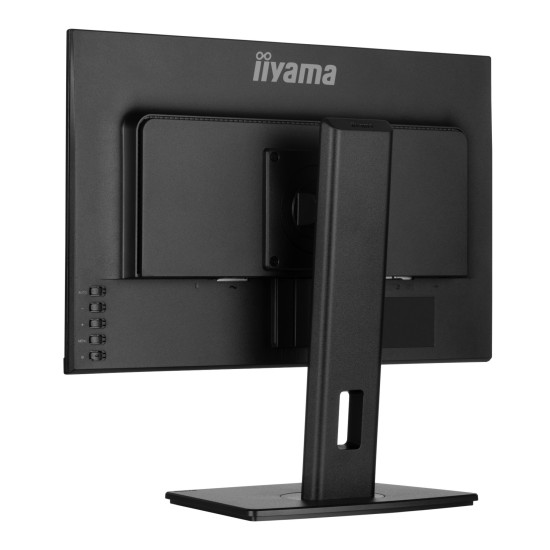

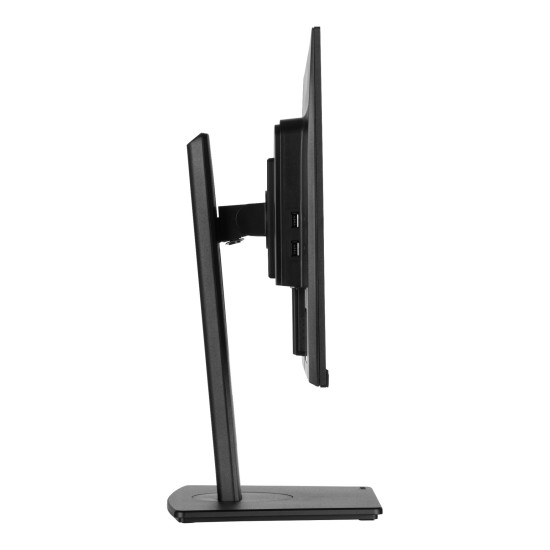

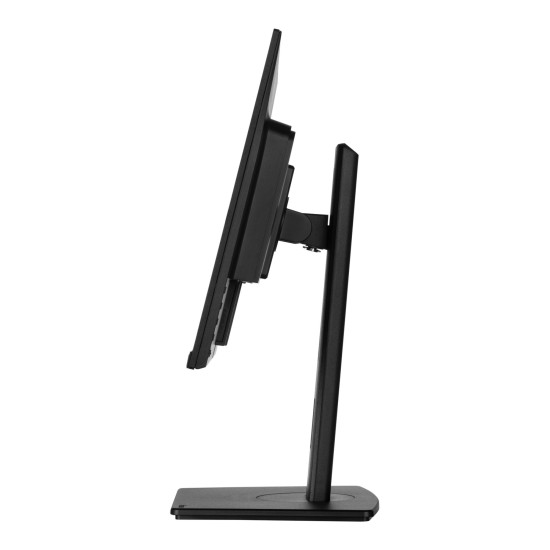

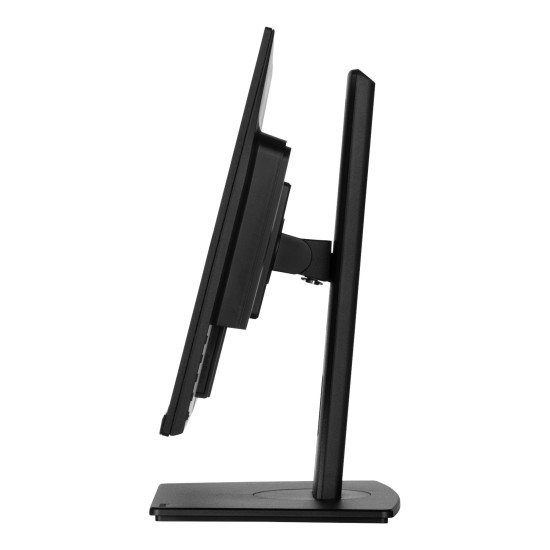

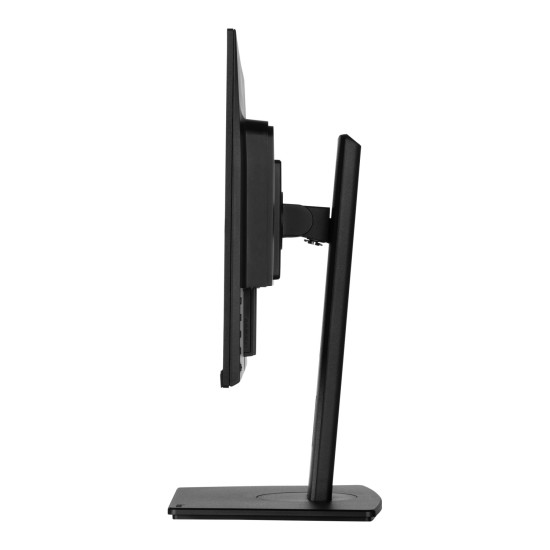

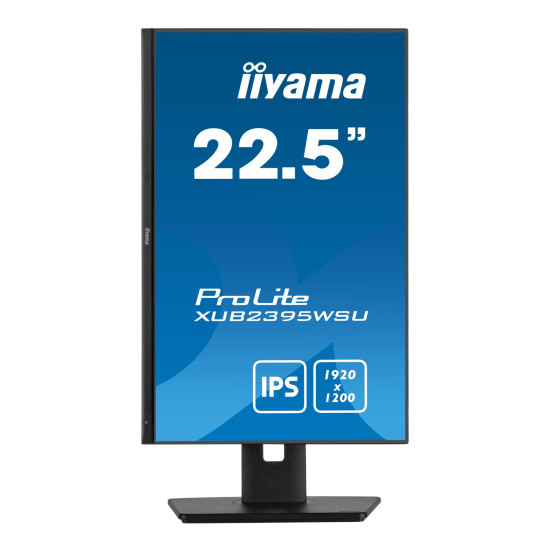

The monitor supports full ergonomic adjustments, including height, swivel, tilt, and pivot (rotation in both directions). Height adjustment is available up to 150 mm, with a pivot function allowing 90° rotation. The stand swivels 45° to the left and 45° to the right (90° total), and tilts 23° upwards and 5° downwards. VESA mounting is supported with a 100 x 100 mm pattern. A cable management system is also built-in.

Accessories Included

Included in the box are a power cable, USB cable, and DisplayPort cable. Documentation includes a quick start guide and a safety guide.

Power Management

The monitor uses an internal power supply and supports a voltage range of AC 100 - 240V at 50/60Hz. Typical power usage is 24 watts, with standby consumption at 0.5 watts and off mode at 0.3 watts.

Sustainability

The monitor complies with several environmental and safety standards, including TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS, ErP, WEEE, REACH, and UKCA. It contains lead in concentrations above 0.1%, as per REACH SVHC. It is rated energy efficiency class E under Regulation (EU) 2017/1369.

Dimensions and Weight

The monitor's dimensions are 499 mm wide, 353 mm high (503.5 mm including the stand), and 209.5 mm deep. It weighs 4.5 kg without packaging and 6 kg with packaging.
