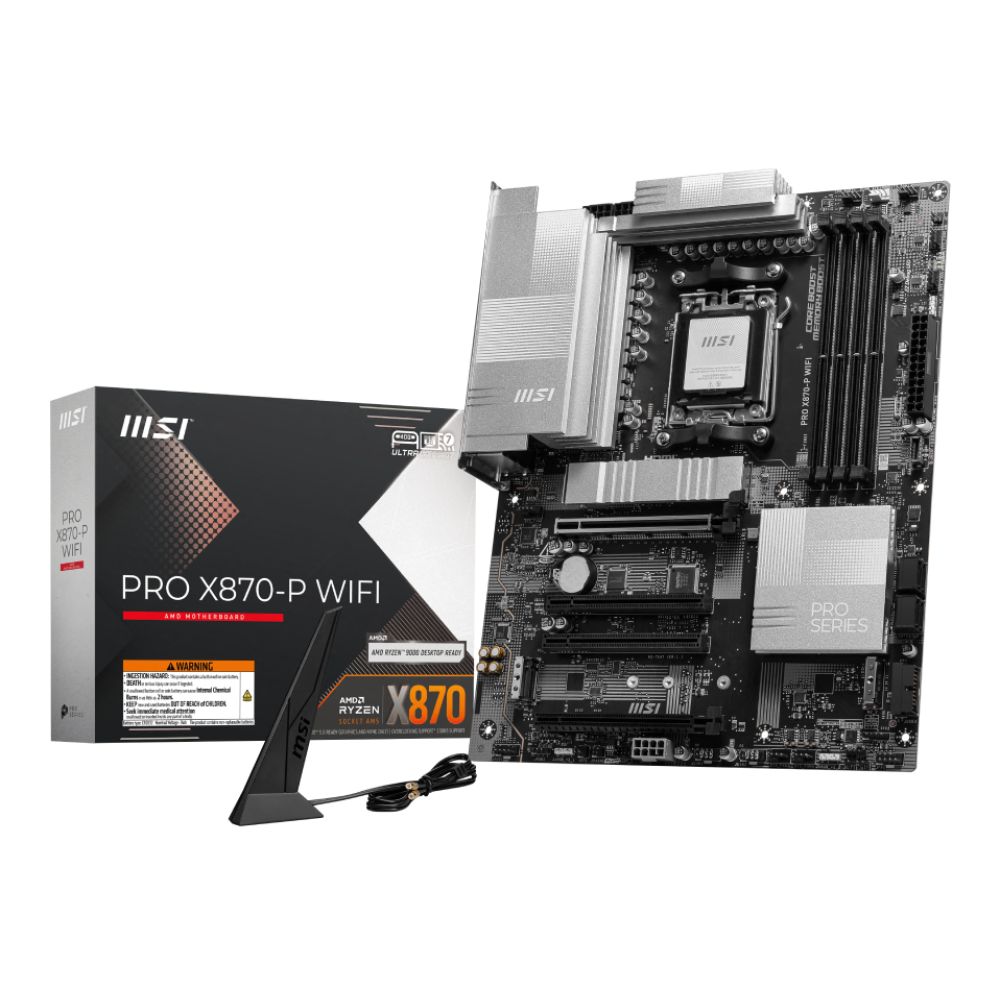

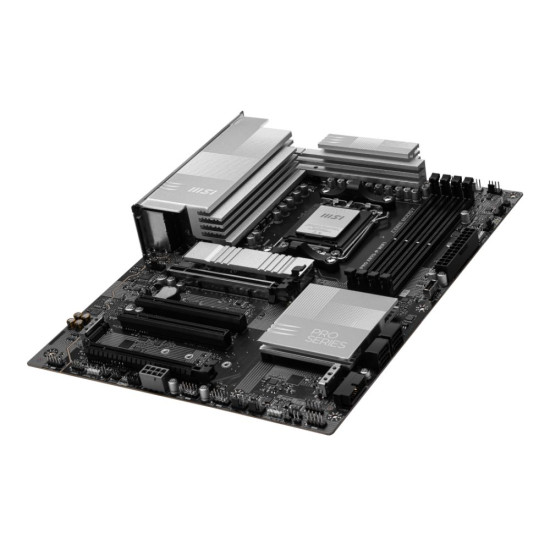

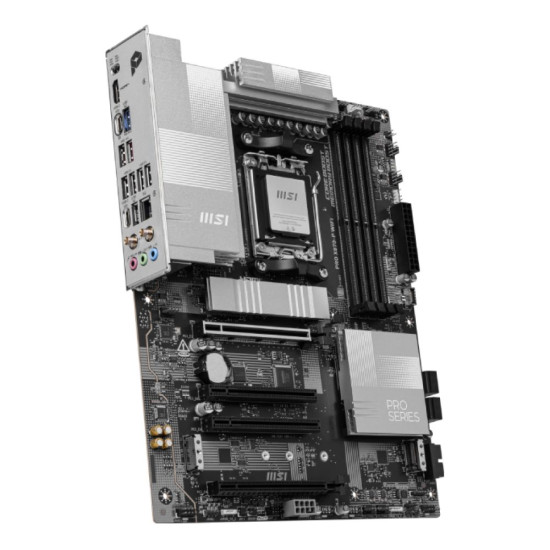

MSI PRO X870-P WIFI AM5 AMD X870 PCIe 4.0 (x16) Motherboard

Overview
The MSI PRO X870-P WIFI is a high-performance motherboard designed for advanced computing needs, including gaming, content creation, and AI applications. It supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors and offers a range of features to ensure optimal performance and connectivity.

Key Features

Processor Support
Socket AM5
Supported Processors AMD Ryzen 9000 / 8000 / 7000 Series

Memory
Type DDR5
Capacity Up to 256GB
Speed Supports up to DDR5 8200+ MT/s (OC)

Connectivity

Network
Wi-Fi Wi-Fi 7
LAN 5G LAN

USB Ports
Rear USB 40Gbps Type-C, USB 20Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, USB 2.0
Front USB 10Gbps Type-C, USB 5Gbps Type-A, USB 2.0

Expansion Slots
PCIe 4x PCIe x16 slots (Gen 5.0, Gen 4.0, Gen 3.0)

Storage
M.2 Slots 3x M.2 slots supporting PCIe 5.0 and 4.0
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Audio
Audio Boost Realtek ALC897 7.1-Channel High Definition Audio

Thermal Solution
Heatsinks Extended Heatsink, M.2 Shield Frozr II, Heavy Plated VRM Heatsink
Thermal Pads High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads

Design and Build
Power Design 14+2+1 Duet Rail Power System with 60A SPS MOSFETs
PCB 8-layer server-grade PCB with 2oz thickened copper

EZ DIY Features
EZ M.2 Shield Frozr II
EZ PCIe Clip II
EZ Antenna with Magnetic Stand

Additional Features
BIOS Flash BIOS Button
Operating System Support for Windows 11 64-bit

Conclusion
The MSI PRO X870-P WIFI motherboard is a robust and versatile choice for users looking to build a high-performance PC. With its advanced features, excellent connectivity options, and superior thermal solutions, it is well-suited for both professional and gaming environments¹²³.
