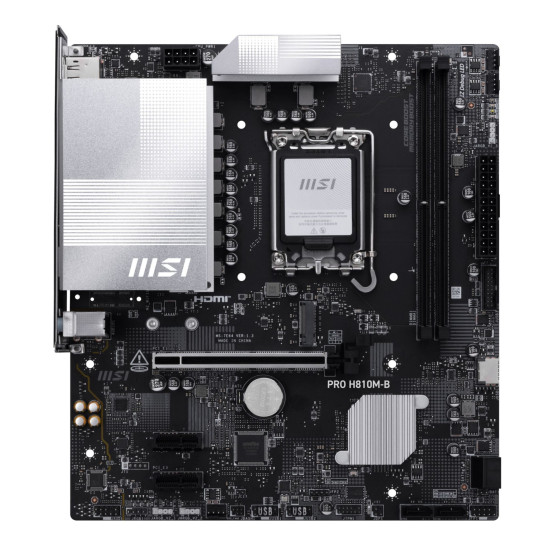

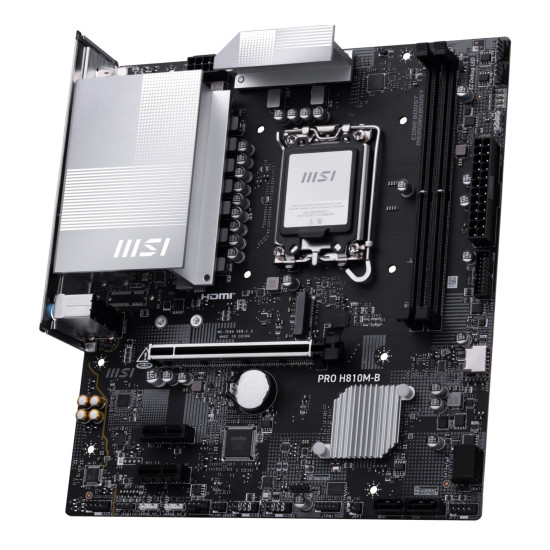

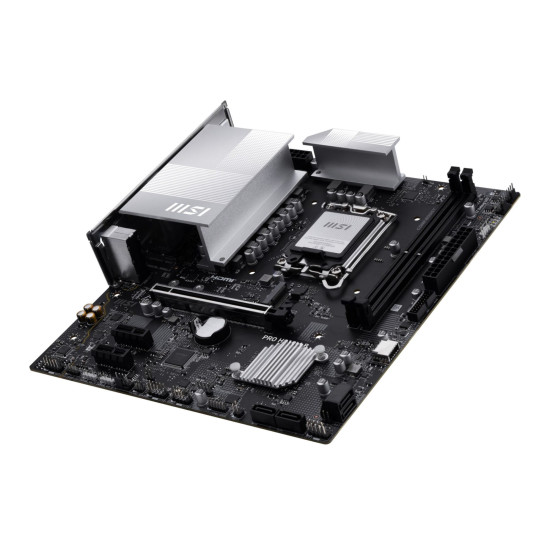

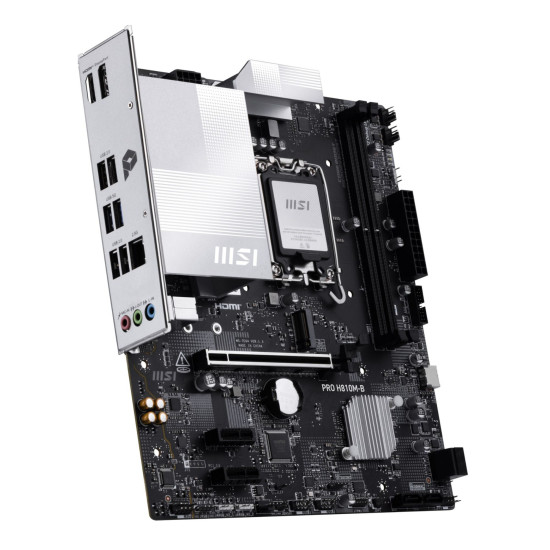

MSI PRO H810M-B DDR5 Intel LGA1851 micro-ATX Motherboard

The PRO H810M-B motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: mATX

Socket Type: LGA 1851

Chipset: Intel H810

With exclusive Core Boost technology and EZ OC Tuning functions, the PRO H810M-B is able to sustain heavy CPU power loads to support system-demanding settings: Digital PWM IC

6-Phase direct CPU power (P-PAK)

1-Phase SA Power

1-Phase GT Power

1-Phase VNNAON Power

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, and extra choke thermal pads for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A) and system fans (1A).

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal overclocking performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400 MT/s, supports Intel XMP.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)*

2 x PCIe 4.0/3.0 x1 slots

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

The PRO H810M-B motherboard features MSI's M.2 slot:

1 x Gen4 x4 64Gbps slot

The DIY Friendly designs optimize the assemble process and experience.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.

USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
