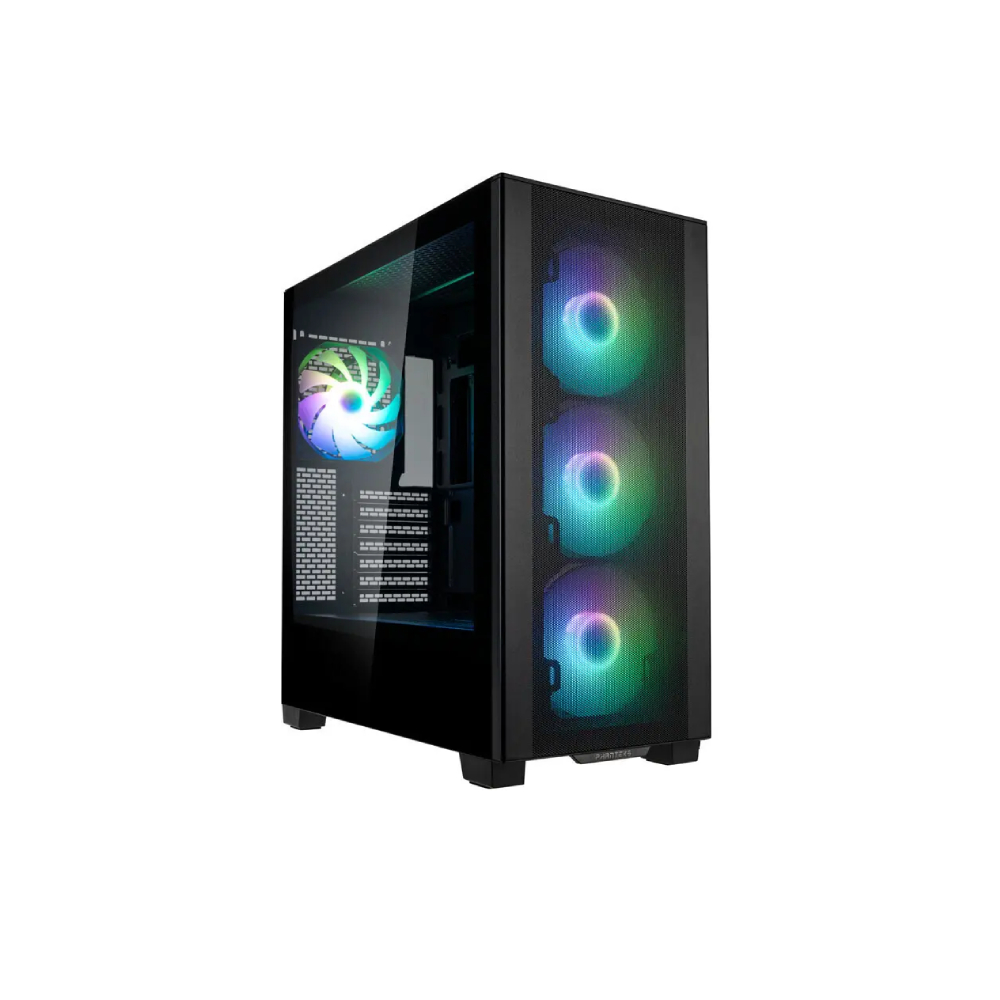

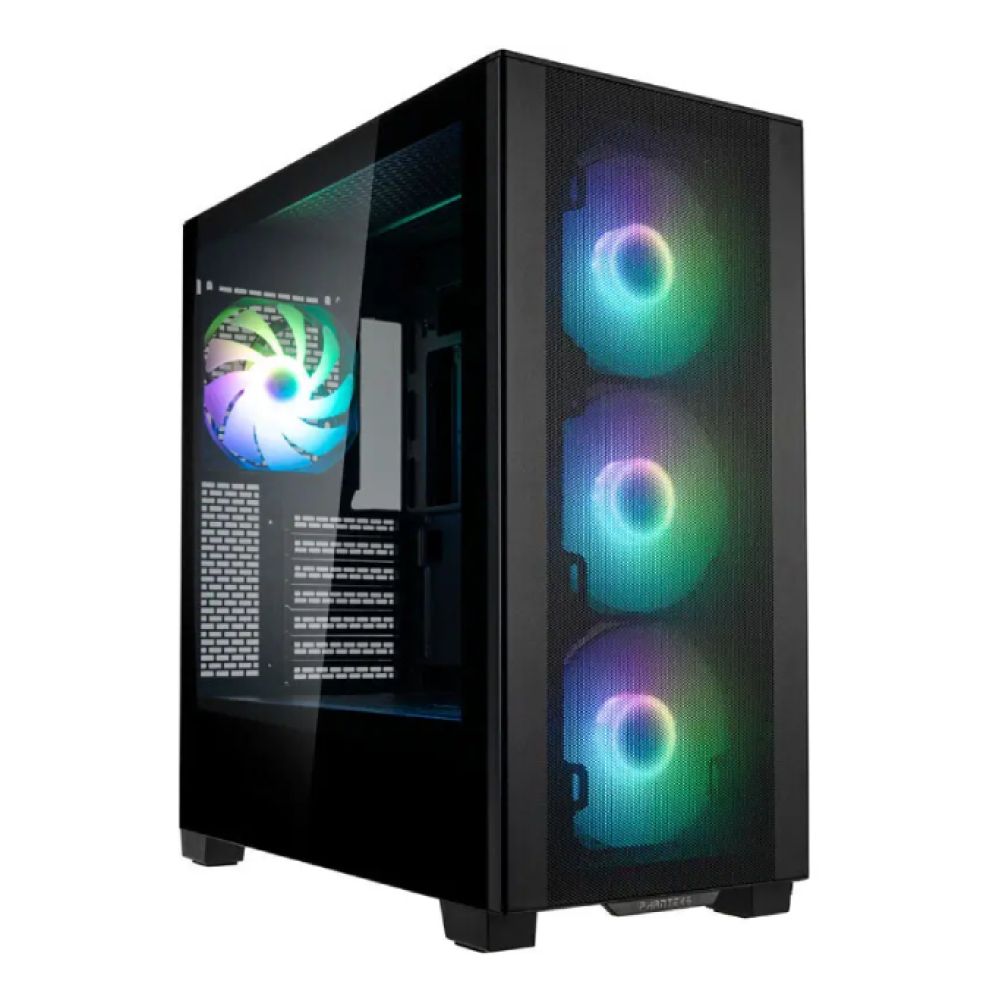

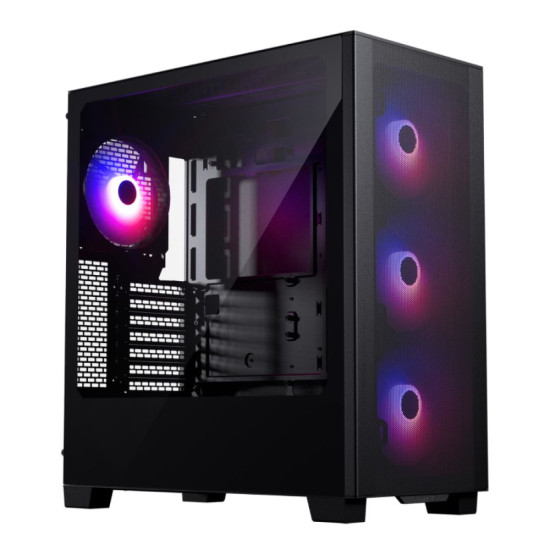

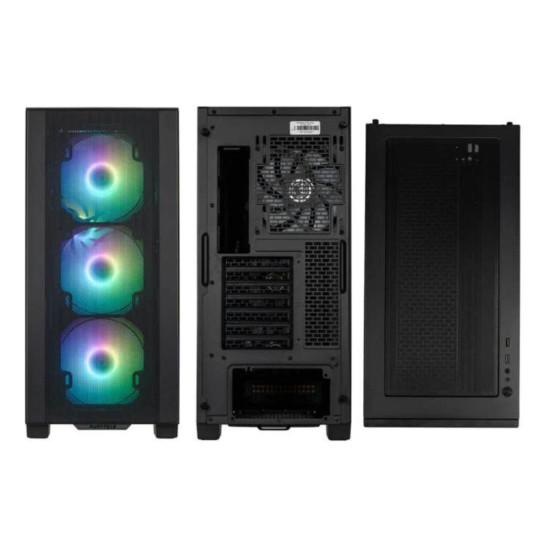

Phanteks XT Pro Ultra ATX Tempered Glass Case - Black



  • Motherboard Support: ATX, Micro ATX, Mini ITX, E-ATX
  • Fans: 3x 120 mm
  • Window Construction: Tempered Glass
  • GPU Max Length: 415 mm
  • Black Colour
  • 5 Years Warranty
  • PH-XT523P1_DBK01
More Info Add to Wishlist
£66.95 inc. VAT.

Order by 3pm
for Free Next Day


Pay over 3 Months
with 0% Interest*

Product Description

Build the ultimate zero clutter gaming PC with the Phanteks XT Pro Ultra. This chassis is compatible with the innovative hidden connector motherboards produced by both MSI and ASUS, allowing for almost all cables to be hidden in the rear compartment. The XT Pro Ultra provides a selection of passthroughs, which give easy access to the cable connectors located on the back of these motherboards. Alongside this inventive new technology, the Phanteks XT Pro Ultra also supports a wide range of gaming hardware such as modern GPUs, multiple storage drives, along with plenty of fans and radiators. The main chamber of this case has ample space for even the largest graphics card, with clearance for GPUs 415mm long and 184mm wide. Moreover, keeping you PC at optimum temperatures is simple. There are a variety of options for both air cooling and water-cooling solutions, with clearance for large CPU tower coolers, room for up to three radiators to be installed simultaneously, as well as mounting points for up to ten fans. Additionally, the XT Pro Ultra boasts gorgeous aesthetics, as it features four DRGB fans, and a DRGB controller which can produce a variety of lighting displays, without requiring the use of software.


  • Mid tower design, with ample room for modern hardware
  • Compatible with MSI Project Zero and ASUS BTF motherboards
  • Supports up to ten fans for outstanding cooling
  • Accommodates large components such as E-ATX motherboards and 415mm GPUs
  • Crystal clear tempered glass side panel providing excellent view of all your components

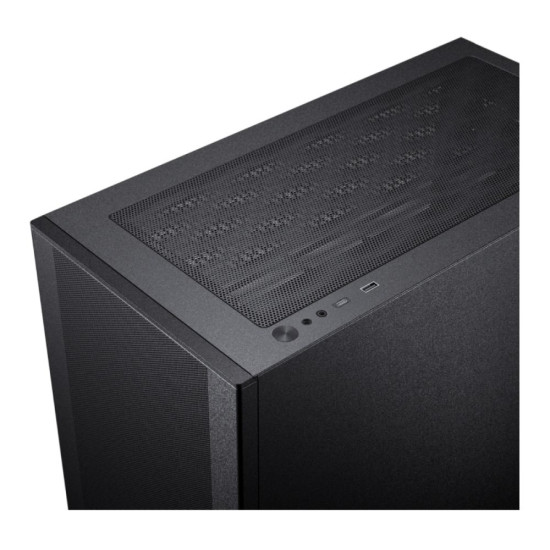

  • Fully featured front I/O with USB Type A and C ports

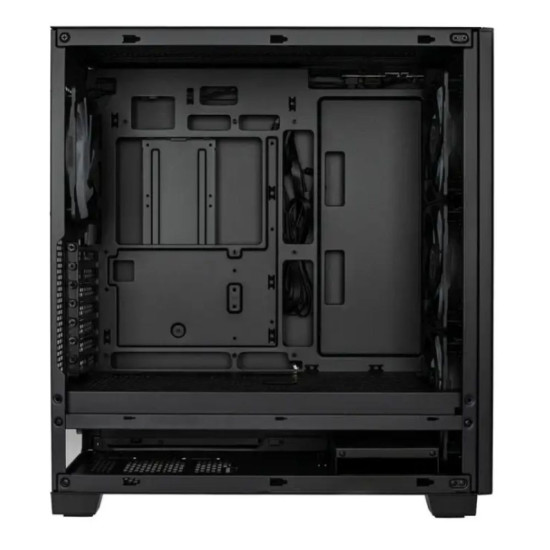

The Phanteks XT Pro Ultra provides full compatibility with both the MSI Project Zero and ASUS BTF motherboards. These innovative mainboards locate their cable connectors such as the 24-pin to the rear. To facilitate the unique requirements of these boards, the Phanteks XT Pro Ultra provides extra passthroughs from the main chamber to the rear compartment. This provides access to all the connectors, allowing for cables to be easily connected. By doing this any cables required to power your PC are hidden away in the rear compartment of the chassis. Thanks to this, a gaming PC built with the XT Pro Ultra will feature almost zero visible cable clutter. However, the wires for components that cant draw their power from the motherboard, such as high-end GPUs, and AIO pumps will still need to be routed through the main chamber.

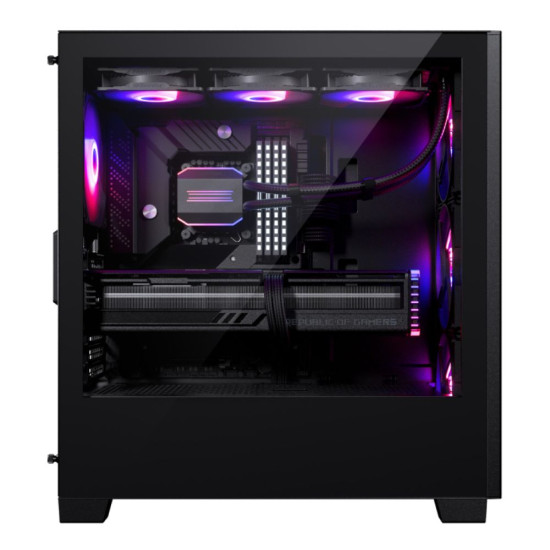

With its spacious main chamber, the Phanteks XT Pro Ultra can easily accommodate the latest powerful gaming hardware. The motherboard tray can facilitate a wide range of boards, including ATX, Micro-ATX, Mini-ITX, and E-ATX models under 280mm wide. Alongside this, there is enough clearance for large CPU air coolers up to 184mm tall. Perfect for efficiently cooling the latest CPUs from both AMD and Intel. Moreover, with a GPU clearance of 415mm, you can easily install a powerful graphics card such as an NVIDIA RTX 4090. Moreover, you will have plenty of space even with all these components installed to easily create aesthetically pleasing cable runs.

In addition to the main chamber, the Phanteks XT Pro Ultra also offers a spacious bottom compartment and ample cable management options. The bottom chamber of this case can contain your PSU, alongside a drive cage to mount up to two 3.5" HDDs. Whats more, a removable bracket can also be mounted behind the motherboard tray, which can house up to three 2.5" SSDs. Whilst the drive cage is present in the bottom chamber, there is room for power supplies up to 270mm long to be installed, leaving plenty of room for cable management.


Maintaining your gaming PC at optimum temperatures is simple with the Phanteks XT Pro Ultra. This is thanks to the exceptional compatibility with a range of cooling hardware. There are three locations to mount radiators, which can all be utilised simultaneously. The top of the case can accommodate a 360mm radiator, meanwhile the front has space for a 240mm model, and a 120mm rad can also be supported by the rear panel.

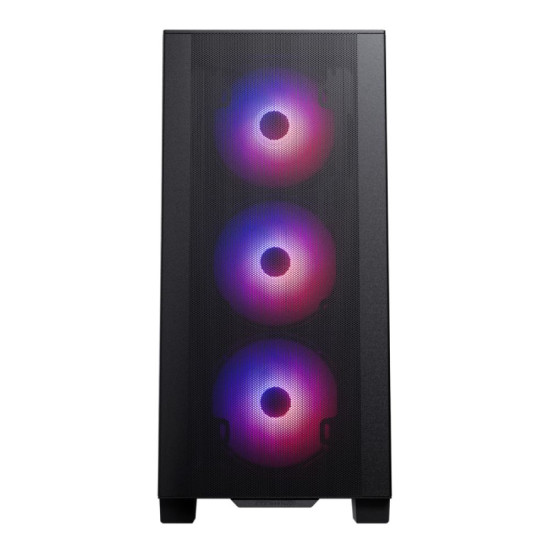

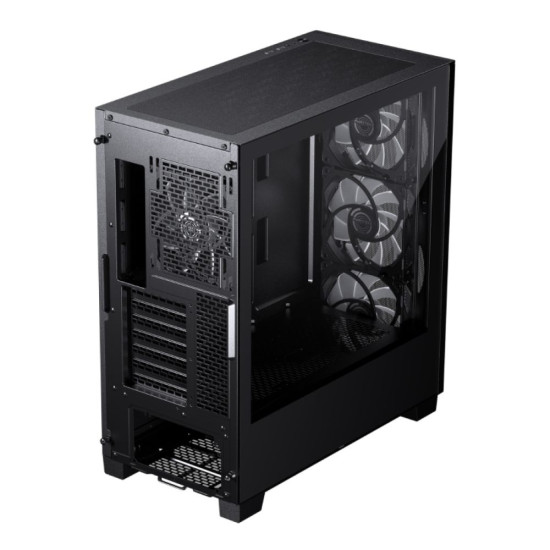

Alongside the excellent radiator options, a total of up to ten fans can also be installed within the Phanteks XT Pro Ultra. Three 120mm fans can be mounted to the top and front of the case, alongside these an additional 120mm fan can be secured to the rear panel. Finally, three 120mm fans can be also located atop the PSU shroud, which draws air from the bottom chamber, directing air into your GPU increasing its cooling performance. You can also utilise multiple 140mm fans with the XT Pro Ultra, there are mounting points for two fans at the top, three in the front, and a single fan at the rear.

Technical Specifications

Condition New
Product Identifiers
EAN 886523303138
Type PC Case
Brand Phanteks
Series XT Pro Ultra
Model Phanteks XT Pro Ultra
Core Chassis Specifications
Case Edition XT Pro Ultra
Case Form Factor Mid Tower
Motherboard Form Factor ATX, Micro ATX, Mini ITX, E-ATX
I/O, Bays & Expansion
Drive Bays 5 x 2.5" Internal | 2 x 3.5" Internal
Standard Expansion Slots 7
Fan Bays 10 x 120 mm / 140 mm
Fans Included 3x 120 mm
Front Radiator Compatibility 1 x 240 mm
Top Radiator Compatibility 1 x 360 mm
Rear Radiator Compatibility 1 x 120mm
Max GPU Card Length 415 mm
Window/s Yes
Window Configuration 1 x Side
Window Construction Tempered Glass
Other Specifications
Warranty 5 Years
Colour Black
Item Weight 8.17 kg
Dimensions (WxHxD) 450 mm x 230 mm x 500 mm
