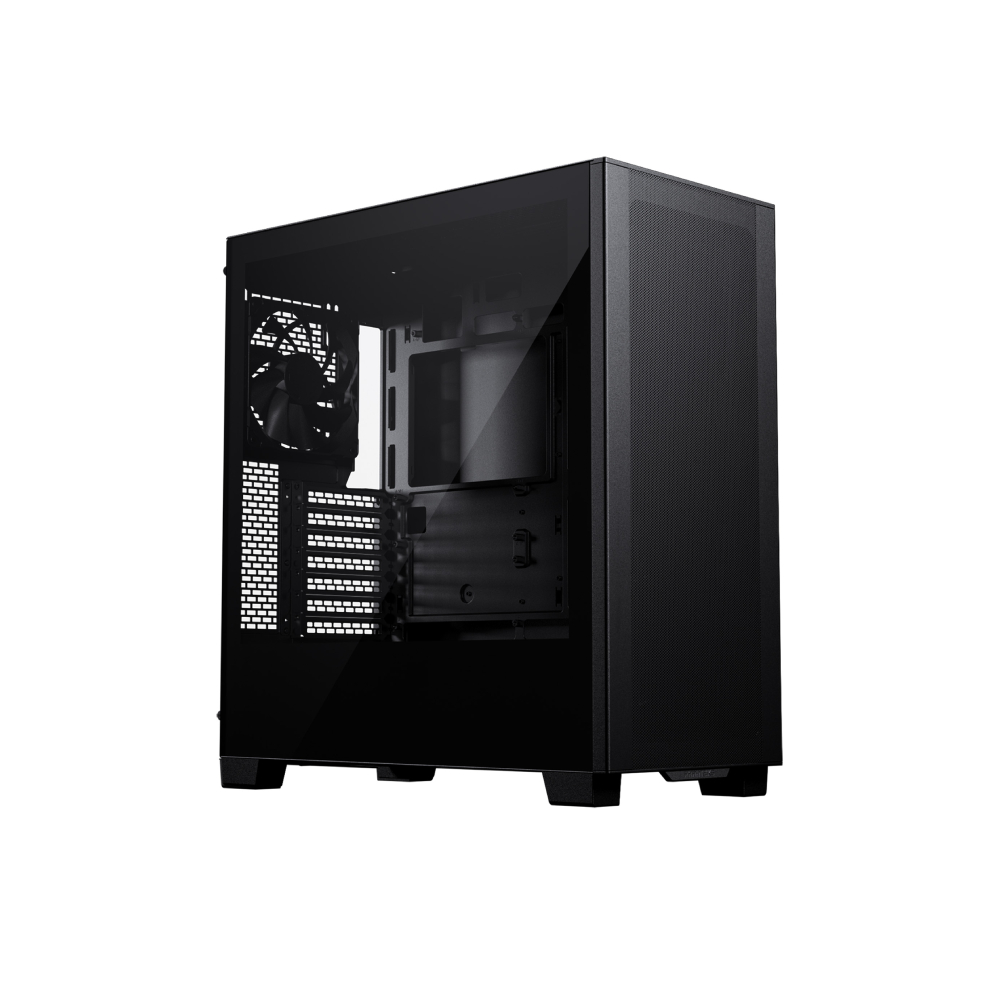

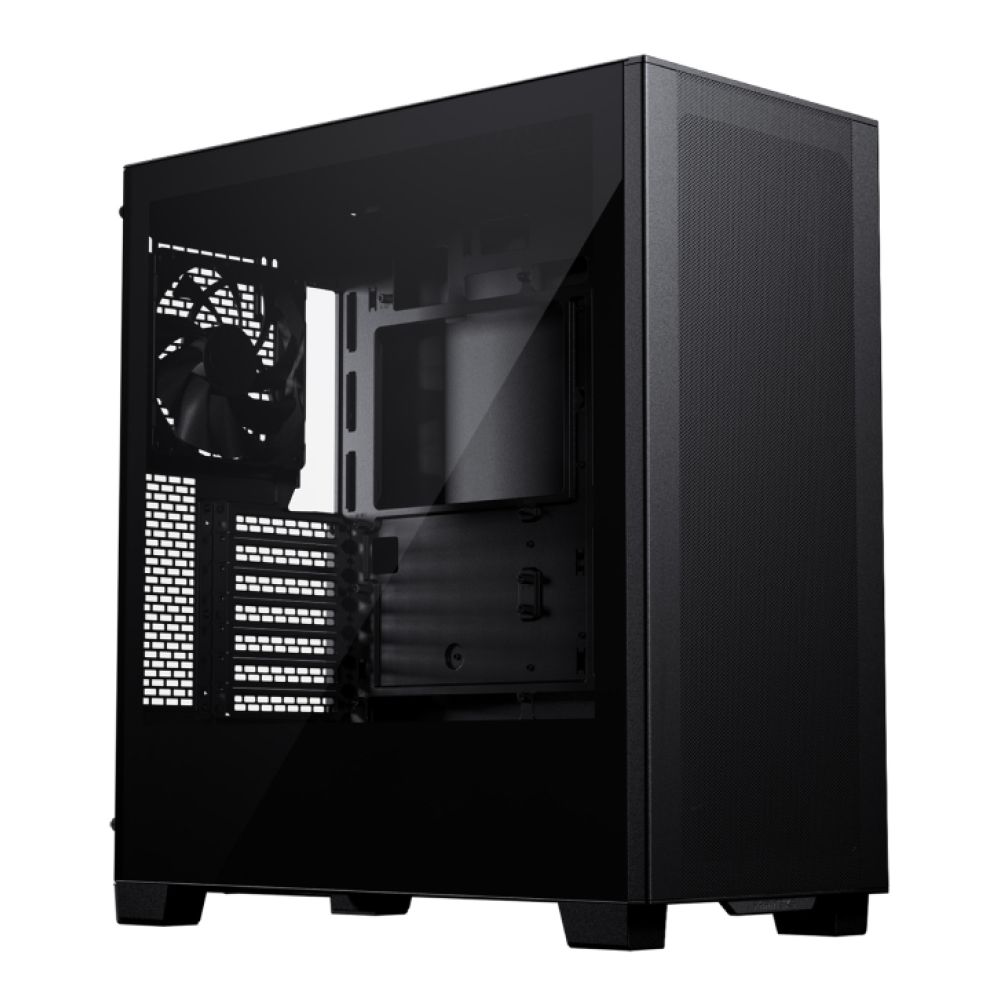

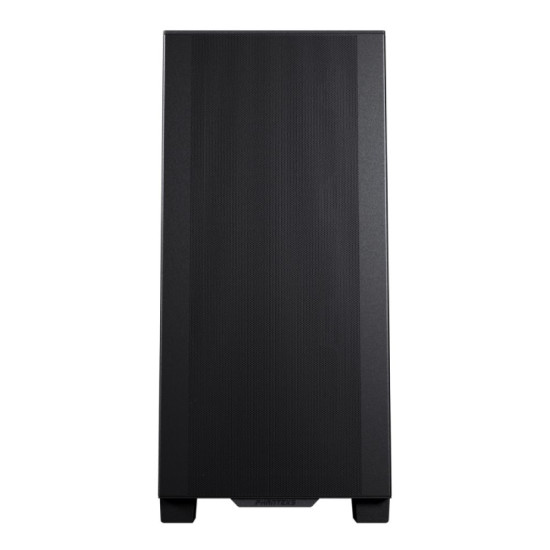

Phanteks XT Pro ATX Tempered Glass Case - Black



  • Motherboard Support: ATX, Micro ATX, Mini ITX, E-ATX
  • Fans: 3x 120 mm
  • Window Construction: Tempered Glass
  • GPU Max Length: 415 mm
  • Black Colour
  • 5 Years Warranty
  • PH-XT523P1_BK01
More Info Add to Wishlist
£50.99 inc. VAT.

Order by 3pm
for Free Next Day


Pay over 3 Months
with 0% Interest*

Product Description

Responsive HTML

Phanteks XT Pro ATX Tempered Glass Case - Black

Build the ultimate zero clutter gaming PC with the Phanteks XT Pro. This chassis is compatible with the innovative hidden connector motherboards produced by both MSI and ASUS, allowing for almost all cables to be hidden in the rear compartment. The XT Pro provides a selection of passthroughs, which give easy access to the cable connectors located on the back of these motherboards. Alongside this inventive new technology, the Phanteks XT Pro also supports a wide range of gaming hardware such as modern GPUs, multiple storage drives, along with plenty of fans and radiators. The main chamber of this case has ample space for even the largest graphics card, with clearance for GPUs 415mm long and 184mm wide. Moreover, keeping you PC at optimum temperatures is simple. There are a variety of options for both air cooling and water-cooling solutions, with clearance for large CPU tower coolers, room for up to three radiators to be installed simultaneously, as well as mounting points for up to ten fans.

  • EATX Form Factor
  • 360mm Radiator Support
  • 415mm Maximum Card Length
  • Integrated USB-C for charging and data transfer
  • Unbeatable value with a read mounted 120mm fan
  • Steel Chassis (Tempered Glass)

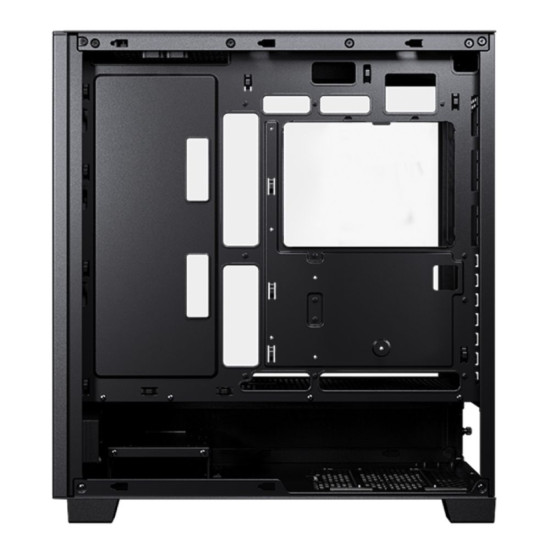

The Phanteks XT Pro provides full compatibility with both the MSI Project Zero and ASUS BTF motherboards. These innovative mainboards locate their cable connectors such as the 24-pin to the rear. To facilitate the unique requirements of these boards, the Phanteks XT Pro provides extra passthroughs from the main chamber to the rear compartment..

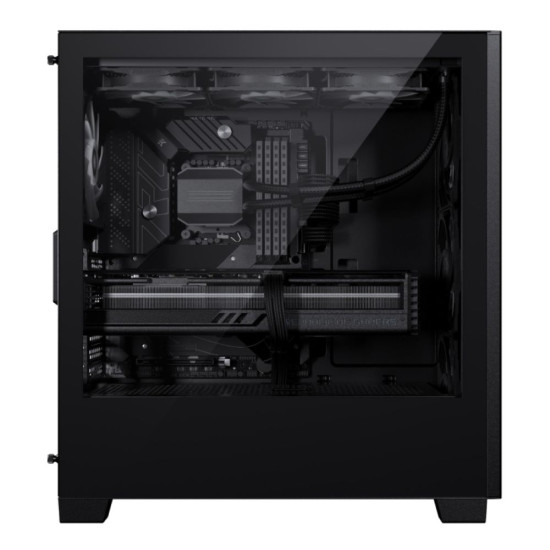

With its spacious main chamber, the Phanteks XT Pro can easily accommodate the latest powerful gaming hardware. The motherboard tray can facilitate a wide range of boards, including ATX, Micro-ATX, Mini-ITX, and E-ATX models under 280mm wide. Alongside this, there is enough clearance for large CPU air coolers up to 184mm tall.


This is thanks to the exceptional compatibility with a range of cooling hardware. There are three locations to mount radiators, which can all be utilised simultaneously. The top of the case can accommodate a 360mm radiator, meanwhile the front has space for a 240mm model, and a 120mm rad can also be supported by the rear panel.

Technical Specifications

Condition New
Product Identifiers
EAN 886523303091
Type PC Case
Brand Phanteks
Series XT Pro
Model Phanteks XT Pro
Core Chassis Specifications
Case Edition XT Pro
Case Form Factor Mid Tower
Motherboard Form Factor ATX, Micro ATX, Mini ITX, E-ATX
I/O, Bays & Expansion
Drive Bays 5 x 2.5" Internal | 2 x 3.5" Internal
Standard Expansion Slots 7
Fan Bays 10 x 120 mm / 140 mm
Fans Included 3x 120 mm
Front Radiator Compatibility 1 x 240 mm
Top Radiator Compatibility 1 x 360 mm
Rear Radiator Compatibility 1 x 120mm
Max GPU Card Length 415 mm
Window/s Yes
Window Configuration 1 x Side
Window Construction Tempered Glass
Other Specifications
Warranty 5 Years
Colour Black
Item Weight 8.17 kg
Dimensions (WxHxD) 450 mm x 230 mm x 500 mm
