Yealink MVC640 Wireless Microsoft Teams Room System for Medium Rooms

Start Teams Meeting with MVC640 Bundle Solution:

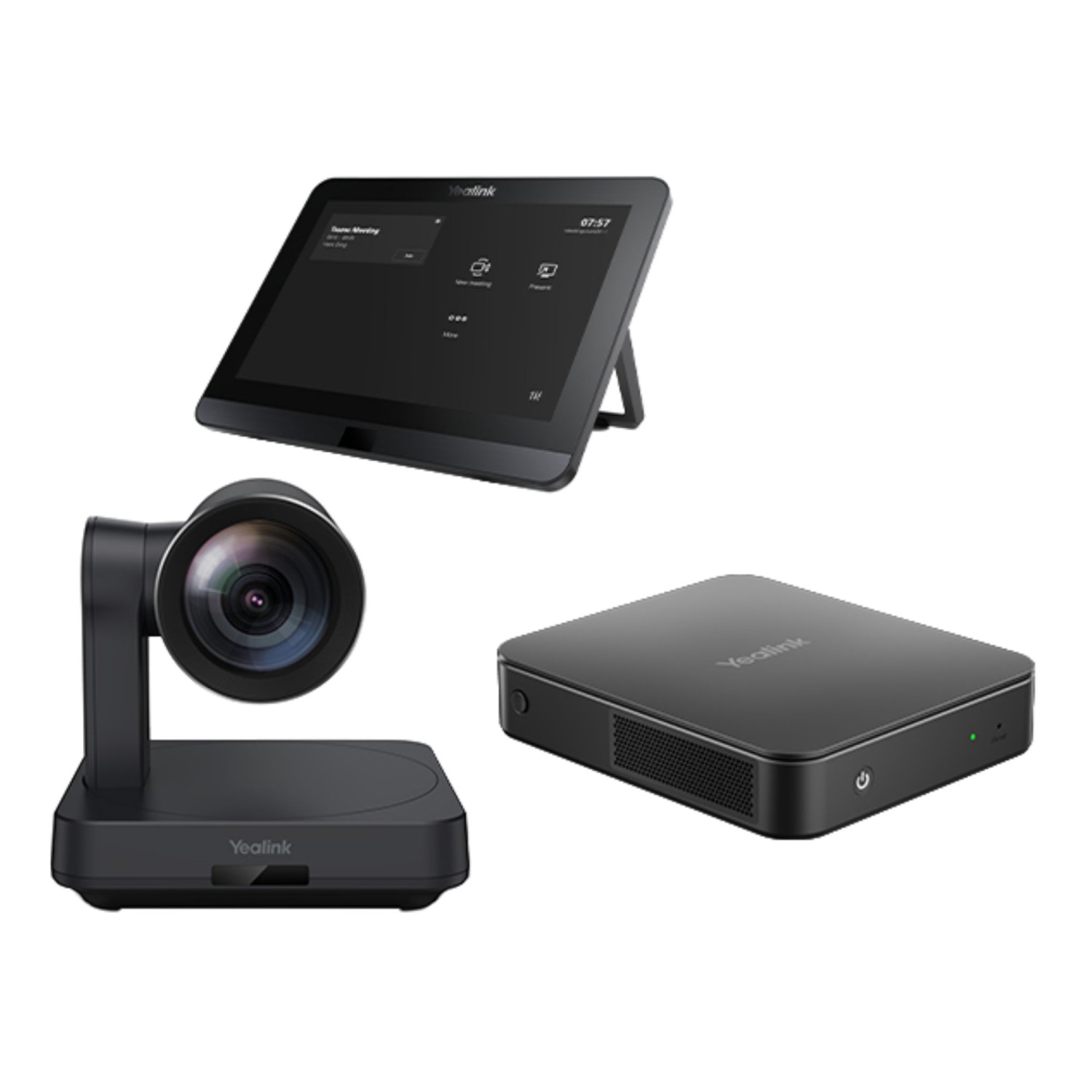

Designed for medium meeting rooms, the Yealink MVC640 Microsoft Teams Room system is a bundle video solution with MCore mini-PC, UVC84 4K camera, MSpeech speakerphone and touch panel, bringing everything you need to interact, connect, and collaborate with internal and external users seamlessly and intelligently.

4K Performance Capture All Movements:
Featured 4K sensor and 12x optical zoom, the UVC84 camera achieves a gorgeous video experience perfectly for medium and large rooms. The Auto Framing enables the UVC84 to recognize attendees and frame everyone automatically in the most appropriate view in rooms of any size. The auto-privacy protection design secures the safety of your meetings.

Pickup Ideas from Every Seats:
Supporting medium-size video conference rooms, the MSpeech speakerphone built-in three microphone matrix and 4W HD speakers deliver HD clarity and a great voice pickup range. The AI-powered features with voice recognition, voice transcription, and Cortana, bring more possibilities in the future of intelligent Microsoft Teams Rooms.

Multi-mounting Options Simplified Connections:
The MCore mini-PC can be set up according to particular room layout. Mounting on the wall, sticking to the table can be realized. Also, in all Yealink MVC II video conference room systems, the MCore cable management solution integrates data and power supply into one CAT5e cable, simplifying the complicated connections and reducing the deployment time of the whole video conference kits.

One-Click to Share:
Users can enjoy plugging in the Yealink WPP20 with one click to share the screen wirelessly via WPP20 within the video conference kits, or connecting the laptop to the meeting through the USB-C or HDMI port easily. In the Yealink MVC II video conference room system, all participants have the flexibility of choosing either wireless or wired ways of content sharing.

Remote Management:
Yealink MVC II series video conference room solution supports the Yealink Device Management Platform/Cloud Service. You can manage, monitor, configure, update and diagnose all Yealink audio and video devices within the video conference kits and peripherals on this platform remotely.

Features:

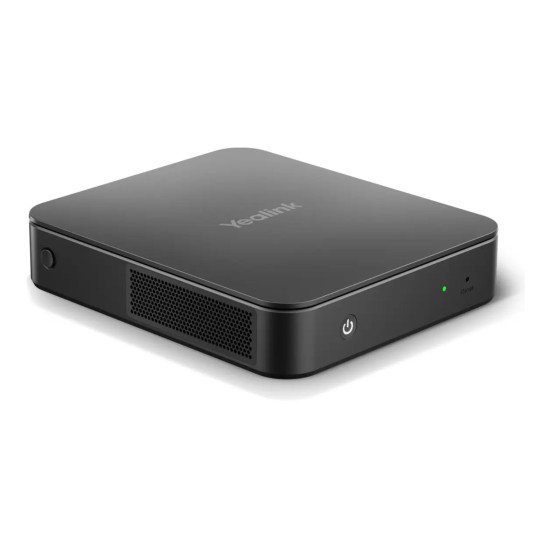

MCore Pro, Gen-3 Mini-PC:
11th Gen Intel® Core i5
Memory: 8 GB (2 x 4GB)
Storage: 128 GB SSD
3x HDMI video output with CEC supported
TPM2.0
Kernel DMA
EDID
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: BT 5.2
1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
4 x USB 3.0 Type-A
1 x 10/100/1000M Ethernet port
1 x Power port
1 x Security lock slot, Integrated cable management
Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
Windows 10 IoT Enterprise License
Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
Yeallink RoomConnect

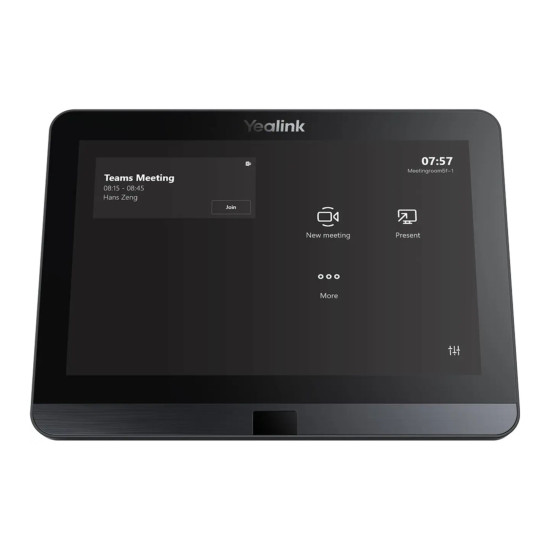

MTouch E2 touch panel:
8-inch IPS screen
1280 x 800 resolution
10-point capacitive touch screen
3.5 mm headset jack
Angle adjustable bracket (28° - 50°)
1080P/30FPS FHD for sharing
Support wired and wireless content sharing
Built-in Wi-Fi AP for Yealink wireless presentation device
HDMI/USB-C HD video input

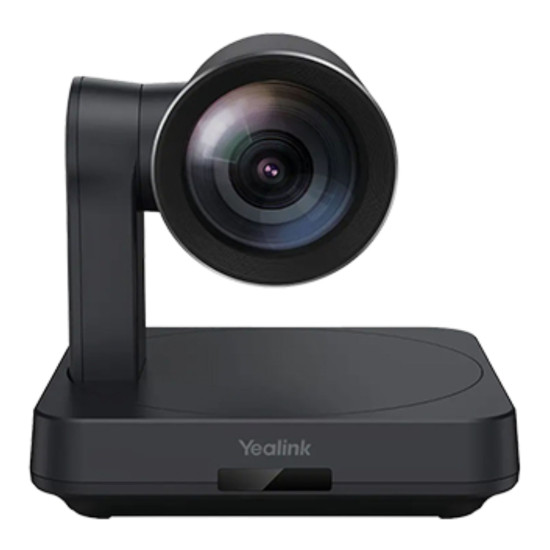

UVC84 USB PTZ Camera:
4KSensor
12x optical zoom
Field of view(diagonal):80°
Auto Framing
Camera presets
Panrange: 200°
Tiltrange: 130°
1x Line-out (3.5mm)
1x Yealink Microphone port( RJ-45)
1x USB2.0 Type-B
1x Powerport
1x Security lock slot
1x Reset slot
