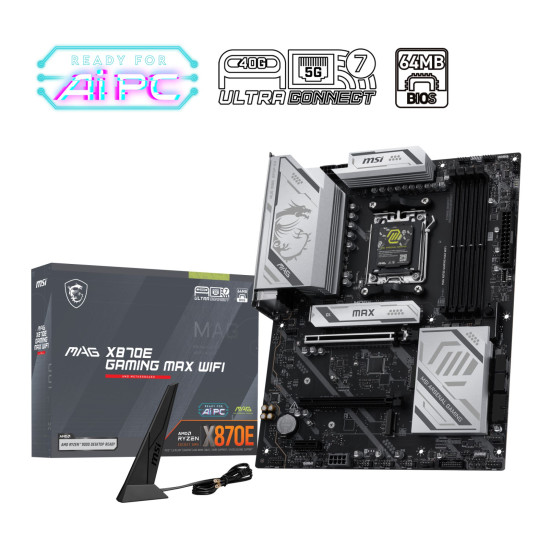

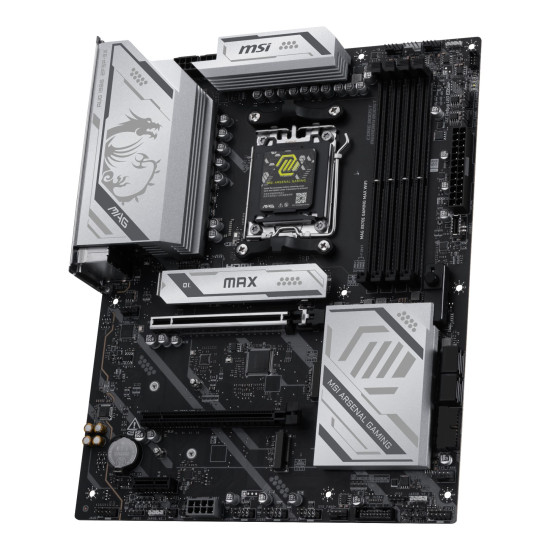

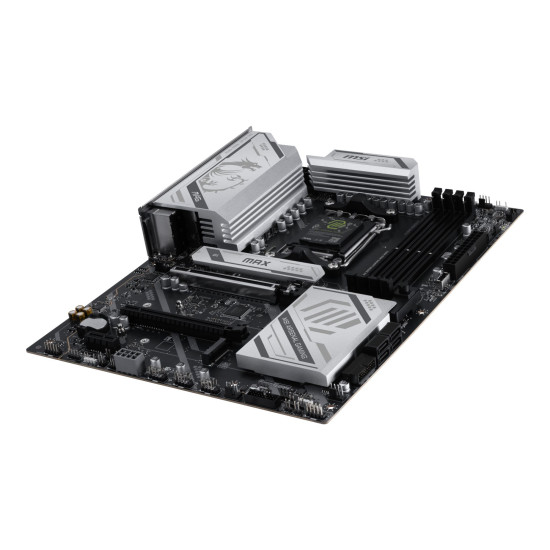

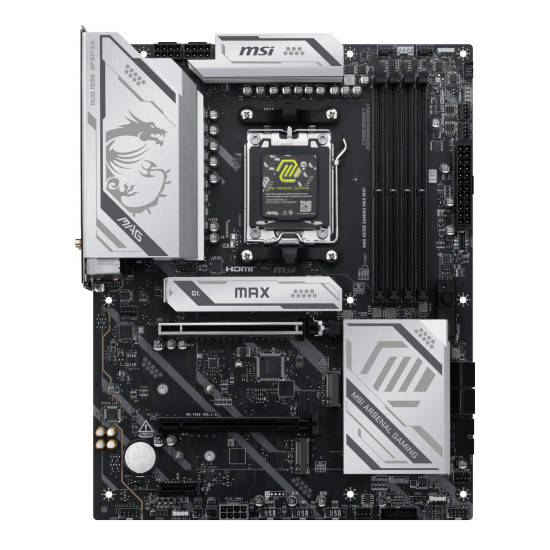

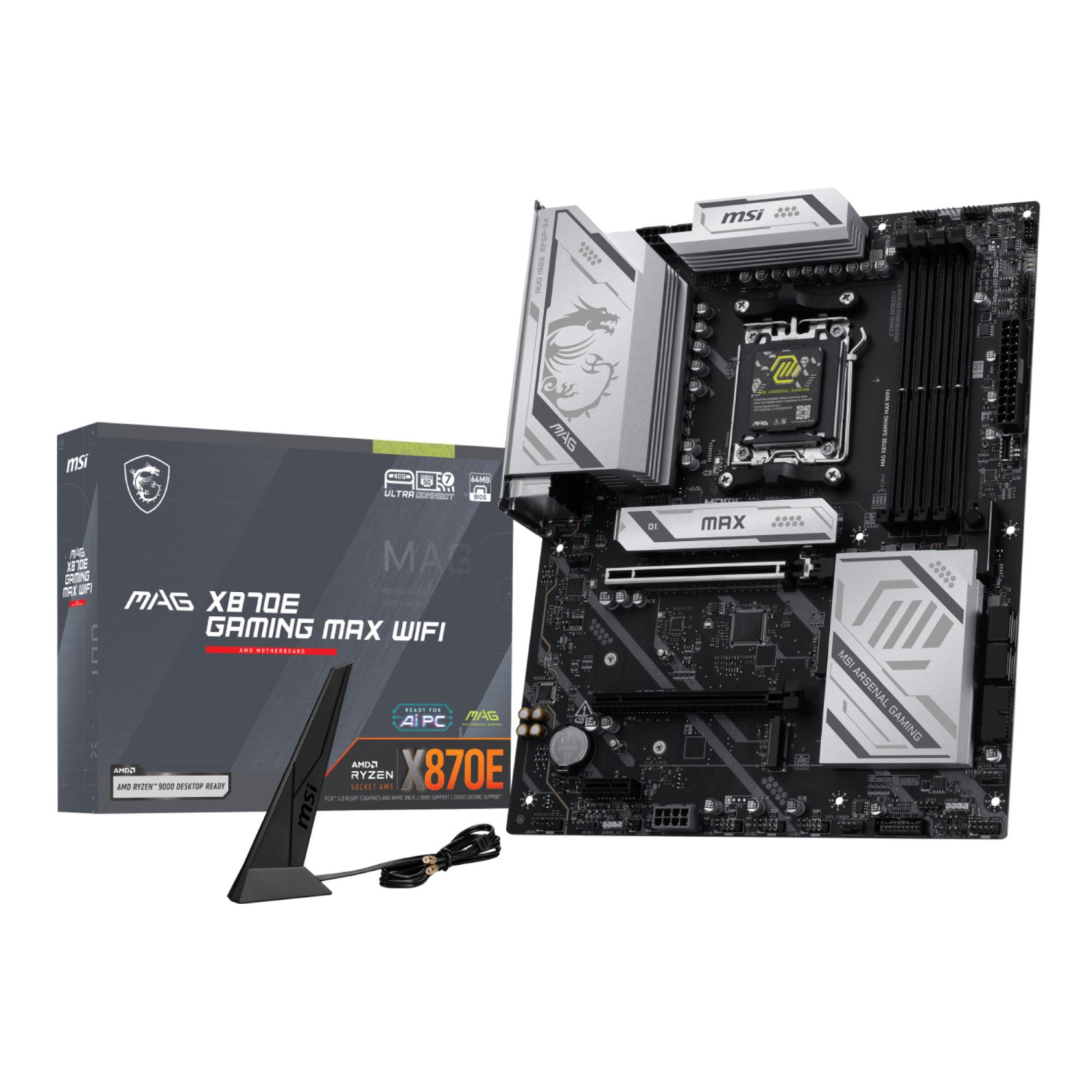

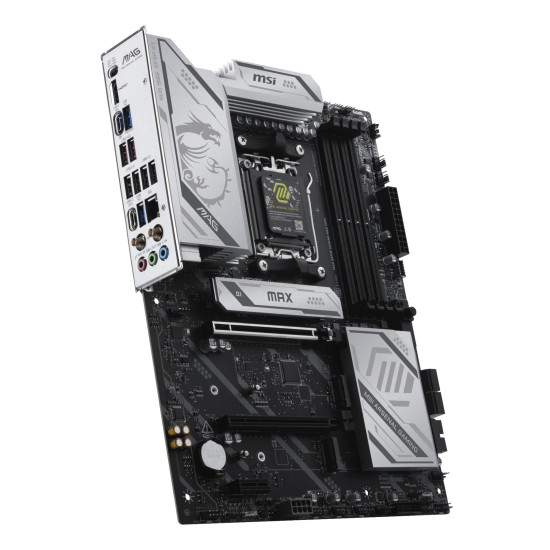

MSI MAG X870E GAMING MAX WiFi AMD X870E ATX Socket AM5 Motherboard

MAG X870E GAMING MAX WIFI

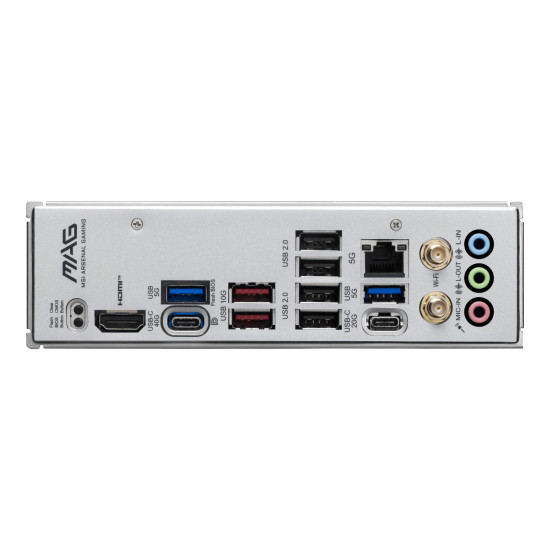

The MSI MAG X870E GAMING MAX WIFI is a high-performance ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. It features the AMD X870E chipset and supports up to 256GB of DDR5 memory with speeds up to 8200+ MT/s (OC). The motherboard offers advanced connectivity options, including PCIe 5.0 and 2x M.2 slots, USB 40Gbps ports, 5G LAN, and Wi-Fi 7. Its cooling system incorporates MSI's extended heatsink design and M.2 Shield Frozr II for optimal thermal management. The MAG X870E GAMING MAX WIFI also boasts Audio Boost 5 technology, EZ PCIe release for simplified graphics card installation, and a robust power delivery system.

12+2+1 DRPS POWER DESIGN

Maximize and maintain peak performance with the advanced VRM architecture, featuring a robust 12+2+1 digital power phase design. The MAG X870E GAMING MAX WIFI integrates dual power connectors and high-efficiency 60A Smart Power Stages, ensuring stable and reliable power delivery for even the most demanding high-end processors. This sophisticated power solution is engineered to meet the challenges of next-generation CPU performance, providing consistent operation under intense workloads and overclocking scenarios.

DDR5: From Strength to Strength

DDR5 memory represents a significant advancement in DDR performance. The MSI Memory Boost technology along with the specialised SMT welding process enable the MAG X870E GAMING MAX WIFI to provide top-notch memory performance.

Optimal Thermal Management

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Double-sided M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

WiFi 7 Solution

Wi-Fi 7 represents a significant advancement in wireless technology, offering substantial improvements to address the escalating demands of modern network traffic and the proliferation of connected devices. This latest standard introduces multiple innovative features that collectively enhance network capacity, reduce latency, and optimize performance across diverse environments.

Fast and Future Ready Storage

MSI MAG series motherboards support all the latest storage standards, allowing users to connect any ultra-fast storage device. Start games faster, load levels faster and gain a real advantage over your enemies.
