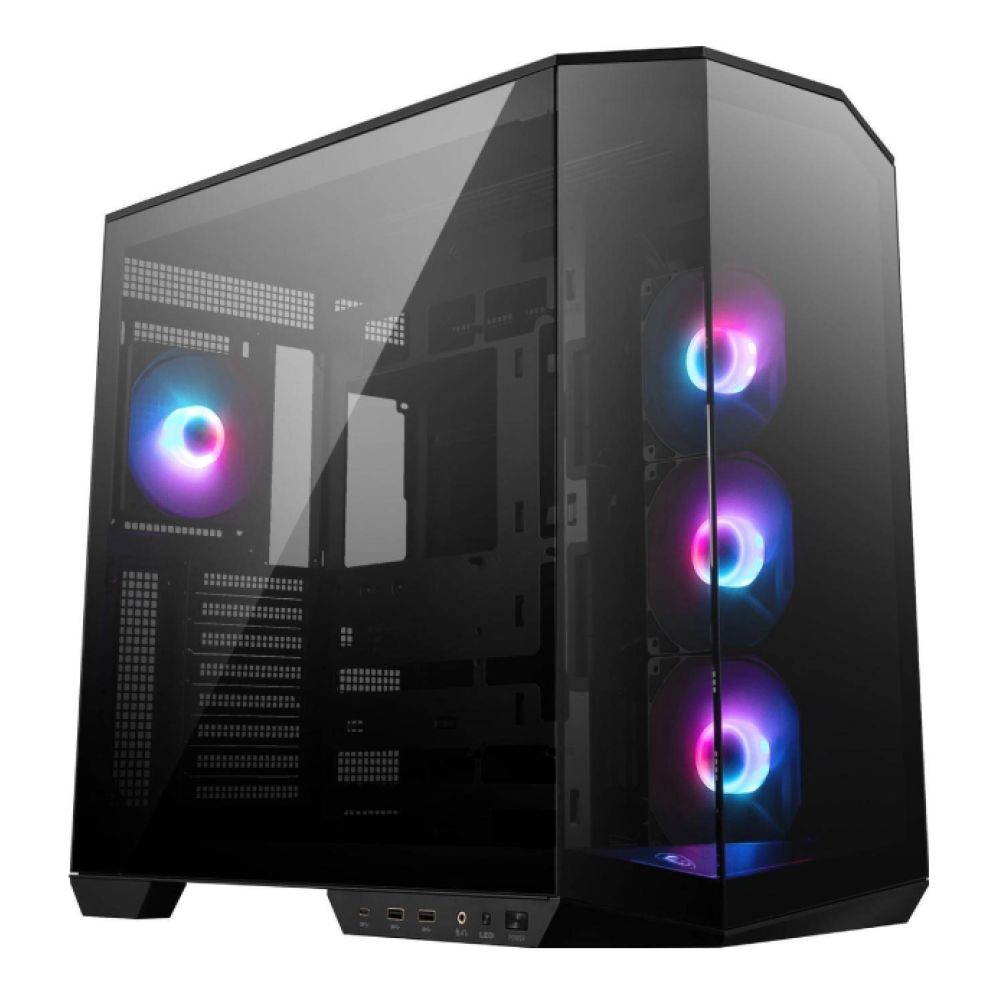

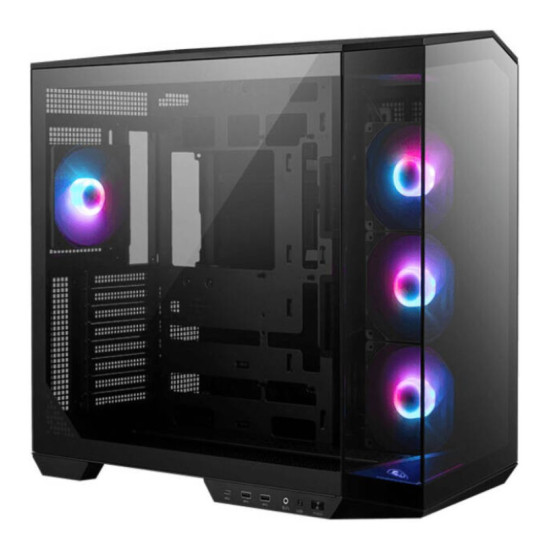

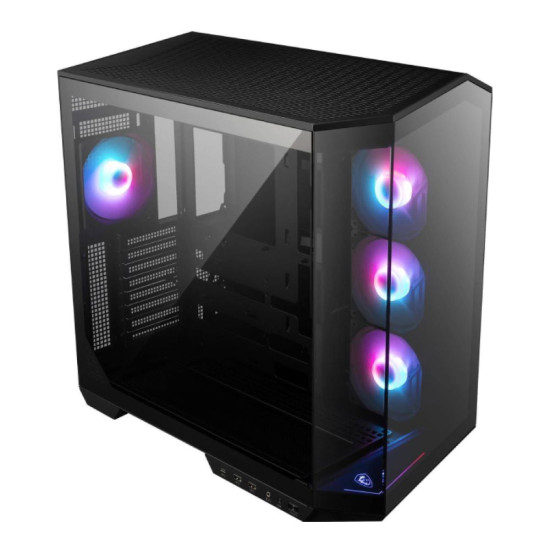

MSI MAG PANO 100R PZ Mid Tower Tempered Glass ATX Gaming PC Case - Black

Name: MSI MAG PANO 100R PZ Mid Tower Tempered Glass ATX Gaming PC Case - Black
Brand: MSI
SKU: MAG PANO 100R PZ
Price: 84.99 GBP
Availability: LimitedAvailability

MPN: MAG PANO 100R PZ

£84.99 SAVE £15.00 was £99.99

Payment options

Delivery Options

Get it on Mon, 8th Jun! Order within 20 hrs 24 mins

Get standard delivery within 3-4 working days

Key Features

Motherboard Support: ATX | micro ATX | Mini-ITX
Fans Included: 4 x 120mm
Window Construction: Tempered Glass
GPU Max Length: 380 mm
LED Lighting: RGB
270-degree Panoramic Display
GPU Support Stand
Tool-free dust filters on the top and the magnetic dust filter on the side
Screw-free panel removal
Pre-installed Reverse-blade fans
Black Colour
1 Year Warranty
MAG PANO 100R PZ

View brand store >

Product Overview

MAG PANO 100R PZ

Supported ATX and Micro-ATX Back-connect motherboard.
Supports 360 mm radiator on the top, side and bottom
270-degree panoramic tempered glass.
Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear.
1-to-4 ARGB-Fan control board.
Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
Removable dust filter at the top, side and bottom being easily removed for cleaning.
UNI front panel cable make your DIY process easier and create more possibilities to your system.

A New Turning Point

The MAG PANO 100R PZ WHITE comes with a 270-degree tempered glass panel and is compatible with two different sizes of Back-connect motherboards, adding to the cleanliness of your PC build while enhancing its overall aesthetics and organization. MAG PANO 100R PZ WHITE offers spectacular ambient illumination with 3 x 120 mm Reverse-blade ARGB PWM intake fans and 1 x 120 mm ARGB PWM exhaust fan pre-installed. This PC case offers a vertical graphics card installation bracket.

Organize Easily

Supporting Back-connect motherboards simplifies the installation process and makes cable management easier. It also prevents interference with cables in front of the motherboard, keeping the interior of the case much cleaner.

This PC case comes pre-installed with a 1-to-4 ARGB-PWM control board, helping to organize fan cables and control ARGB lighting easily.

Extensive Compatibility

Motherboard support: ATX and Micro-ATX (Back-connect and regular motherboard compatible) and Mini-ITX (regular motherboard compatible).

Graphics Card Support

This PC case comes with Switchable PCIe brackets for expansion slot options:

1. Standard 8-slot PCIe expansion plate (pre-installed).

2. Vertical 4-slot* PCIe expansion plate which includes additional exhaust fan docks.

Key features

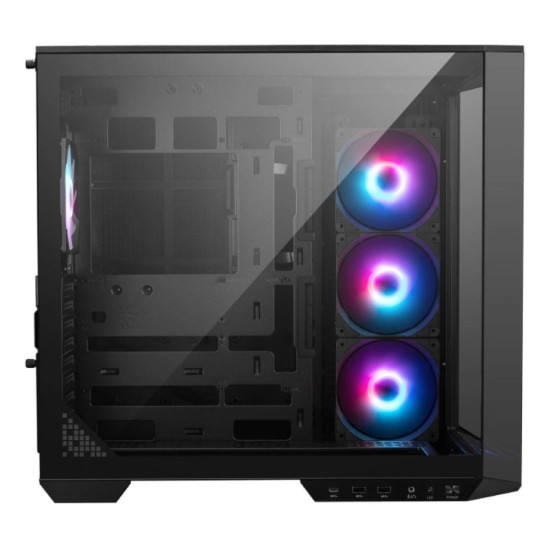

Reverse-blade fans are pre-installed on the side, allowing the beauty of the ARGB fan to be displayed unobstructed without any interference from the fan frames.
Support for rear-connect motherboards allows for easy installation without the worry of forgetting to connect cables, which might otherwise require the removal of graphics cards and coolers.
Create a distinctive design that embodies the unique characteristics of the case and your desires and passions. The front interior of the chassis incorporates a space for displaying miniatures, complemented by 270-degree panoramic tempered glass, turning it into a showcase.
Removable installation bracket for SSDs and HDDs, for simplified installation and rubber anti-vibration elements for silent operation.
ARGB fan control hub supporting up to four ARGB fans. It is controlled directly using the buttons on the side.

The MSI ARSENAL GAMING (MAG) series is designed to give gamers the edge they need to dominate the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG Series is designed to provide unwavering defense for every gaming scenario.

Draw inspiration from the MAG logo to create a distinctive structural line design that fully demonstrates the unique MAG beliefs.

In order to fully display the ARGB host, the MAG PANO 100 series case is equipped with a 270-degree panoramic view and can be used with a back-mounted motherboard, making it more concise and fashionable.

Chamfering process

The MAG PANO 100 series is equipped with a 270-degree panoramic side view and a chamfered design, which not only increases the sense of space, but also adds a sense of depth when paired with ARGB lighting effects.

Hardware compatibility

The gaming case provides extremely high compatibility and fully supports component installation requirements.

Supports back-mounted motherboards

Supports ATX and Micro-ATX back-plug series motherboards, which not only makes assembly easier and easier, but also clear at a glance

Interior space

Supports fans and water cooling radiators

3 x 360 mm fans can be installed on the top, side or bottom at the same time. Even if you configure customized water cooling, you can also configure the circuit settings. More functional options allow you to play more games.

Easy to install

The gaming case offers many thoughtful little designs and is easy to install.

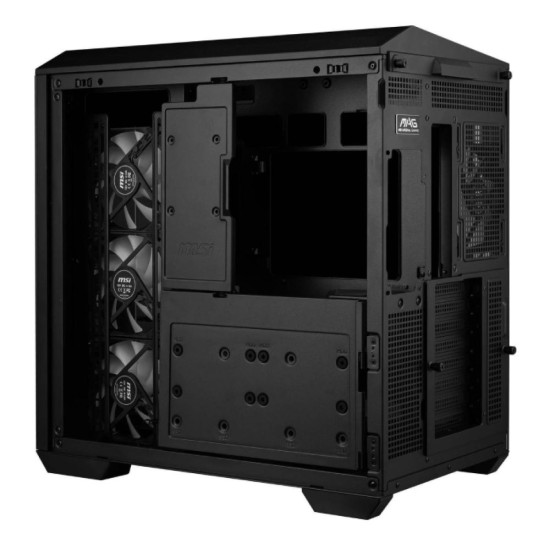

Two-cabin design

The ultra-wide space for the whole line reduces the difficulty of the whole line.

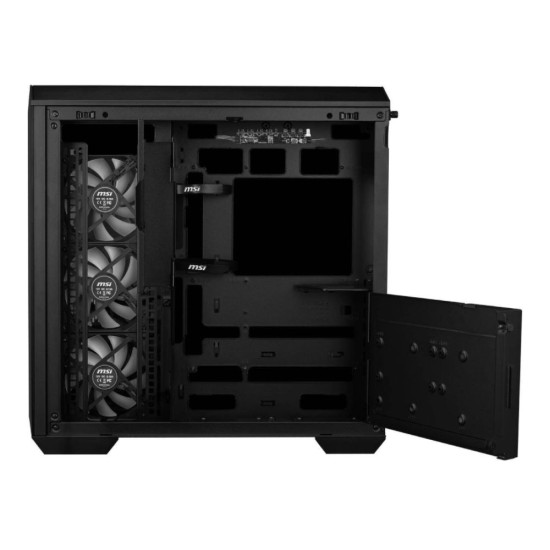

Multifunctional hard drive bracket

The multifunctional storage hard drive bracket with a revolving door can quickly cover messy wires after installing the SSD, making the inside of the host more concise and beautiful.

Dust filter

The three sides of the casing are equipped with dust-proof filters for easy cleaning at any time. At the same time, it can reduce the problem of dust accumulation on components and maintain smooth air flow and heat dissipation.

1 to 4 ARGB fan control board

Through the integrated control panel, users can easily and intuitively control lighting effects and adjust fan speed.

Easy to install

Screw-free panel removal

The front and side panels can be manually removed without screws, and there are no structural restrictions on large areas. Whether it is installing a fan or a radiator, it can be easily completed.

Specifications

Condition

New

Product Identifiers

Sku	MAG PANO 100R PZ
MPN	MAG PANO 100R PZ
EAN	824142371749
Type	PC Case
Brand	MSI
Series	MAG PANO
Model	MAG PANO 100R PZ

I/O, Bays & Expansion

Drive Bays	1 x 3.5" \| 1 x 2.5"/3.5" Internal Combo
Standard Expansion Slots	8
Vertical Expansion Slots	4
Fan Bays	Top: 3 x 120 mm / 3 x 140 mm \| Rear: 1 x 120 mm \| Side: 3 x 120 mm / 2 x 140 mm \| Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
Fans Included	4 x 120mm
Dust Filters	Top \| Side \| Bottom
Top Radiator Compatibility	120 / 240 / 360 mm
Bottom Radiator Compatibility	120 / 240 / 360 mm
Rear Radiator Compatibility	120 mm
Side Radiator Compatibility	120 / 240 / 360 mm
Max CPU Cooler Height	166 mm
Max GPU Card Length	380 mm
Cable Routing Space	Yes
Windows	Yes
Window Configuration	1 x Main Side
Window Construction	Tempered Glass
Tempered Glass Panels	Yes

Power Supply Compatibility

Psu Support

ATX

General

Warranty	1 Year
Colour	Black
Item Weight	5 kg
Dimensions	(WxHxD) 518.7 mm x 290 mm x 482 mm

Motherboard Information

Motherboard Form Factor

ATX | micro ATX | Mini-ITX

Features

LED Lighting Colour

RGB

Core Chassis Specifications

Case Edition	MAG PANO 100R PZ
Motherboard Form Factor	ATX \| micro ATX \| Mini-ITX

LED Lighting Functionality

LED Lighting Colour

RGB

Other Specifications

Warranty	1 Year
Colour	Black

Model Information

Brand	MSI
Model	MAG PANO 100R PZ
