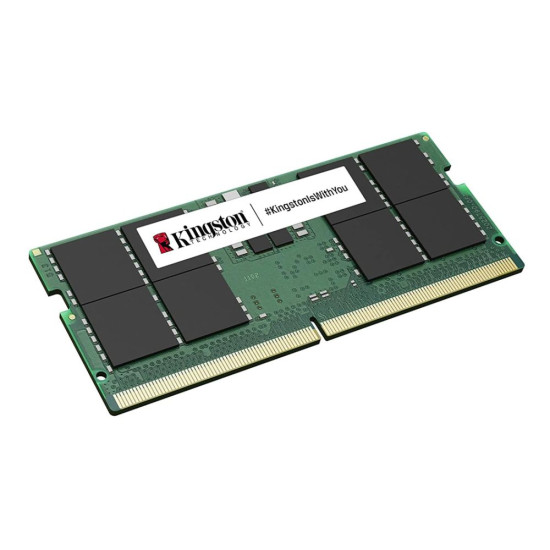

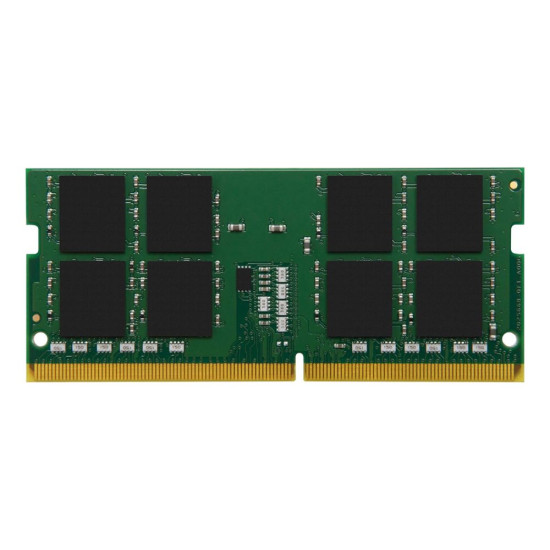

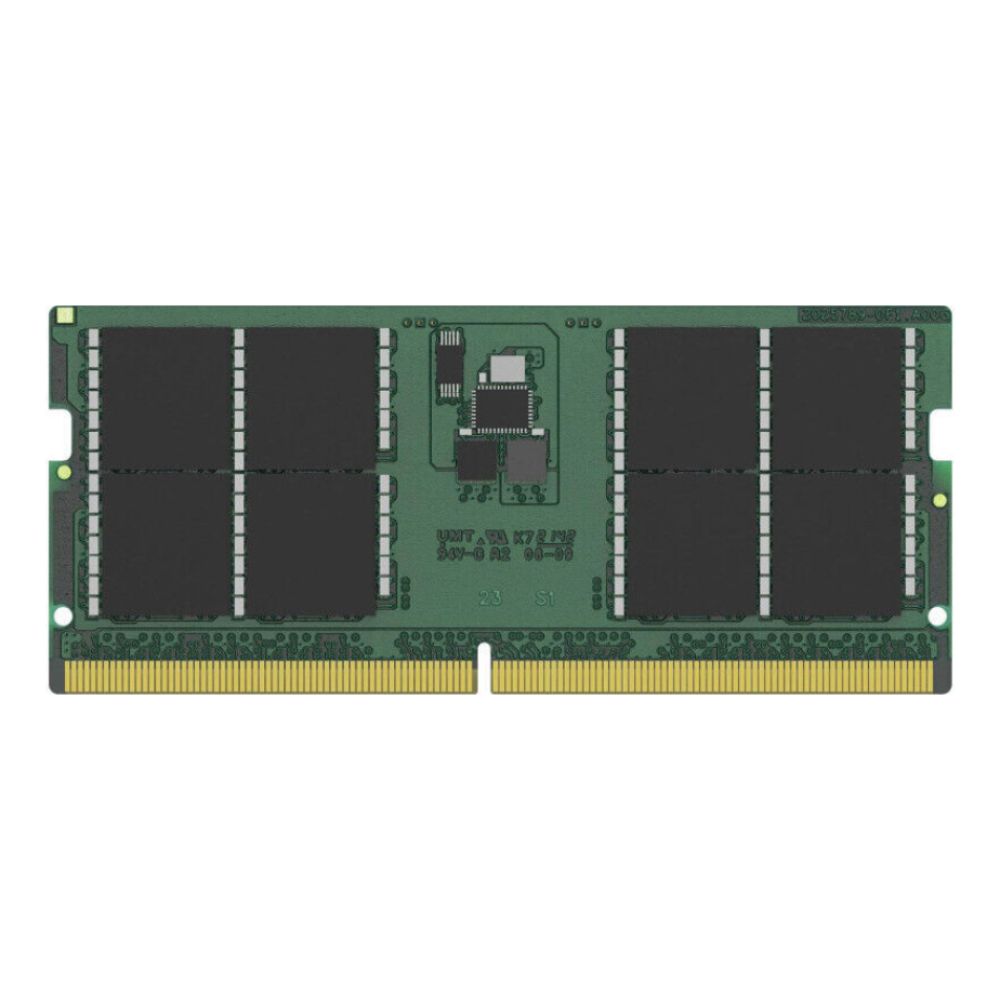

Kingston Technology ValueRAM 32GB DDR5 5600 MHz Laptop Memory Module
Kingston Technology ValueRAM
ValueRAM's
KVR56S46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous
DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of
46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The
electrical and mechanical specifications are as follows:
Power Supply: VDD = 1.1V
Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18 (30.00mm)
RoHS Compliant and Halogen-Free
Note: The content above is generic for the series.
For Correct info about this particular model, please refer to
Specifications section.
£127.99 Inc VAT
