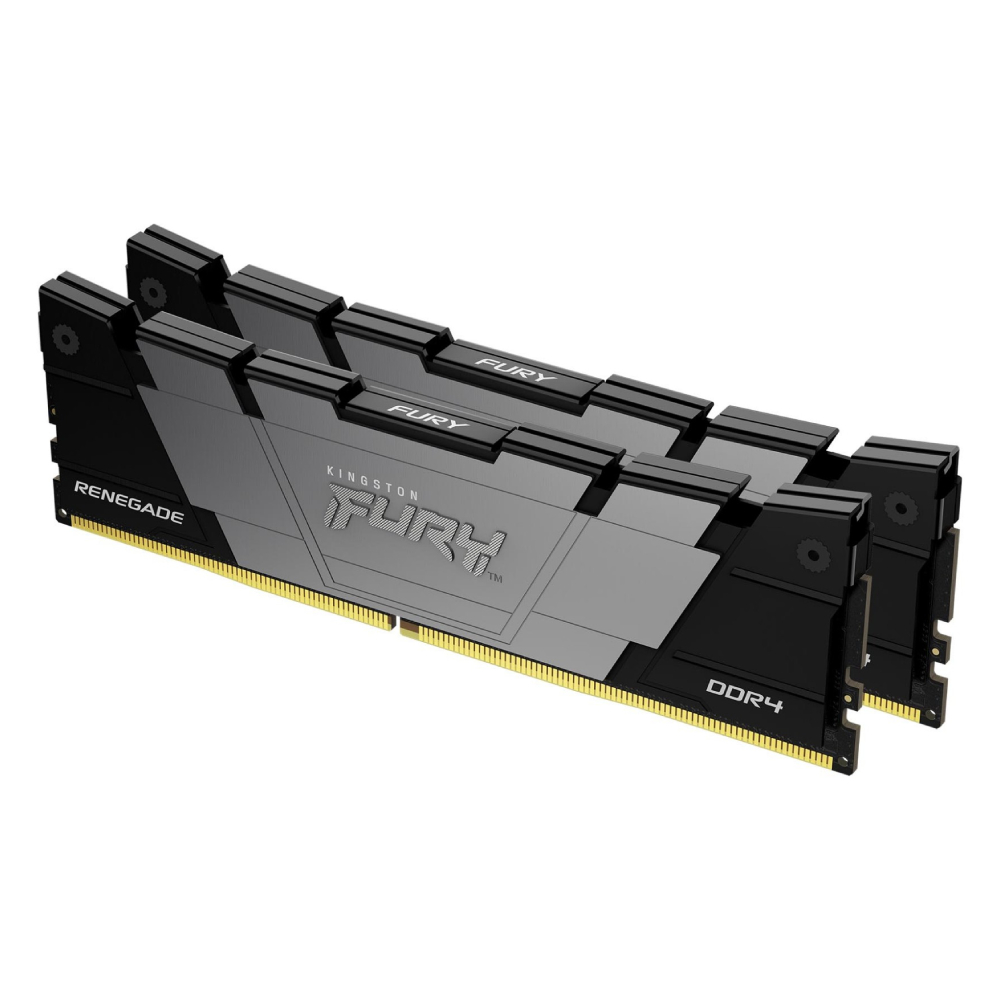

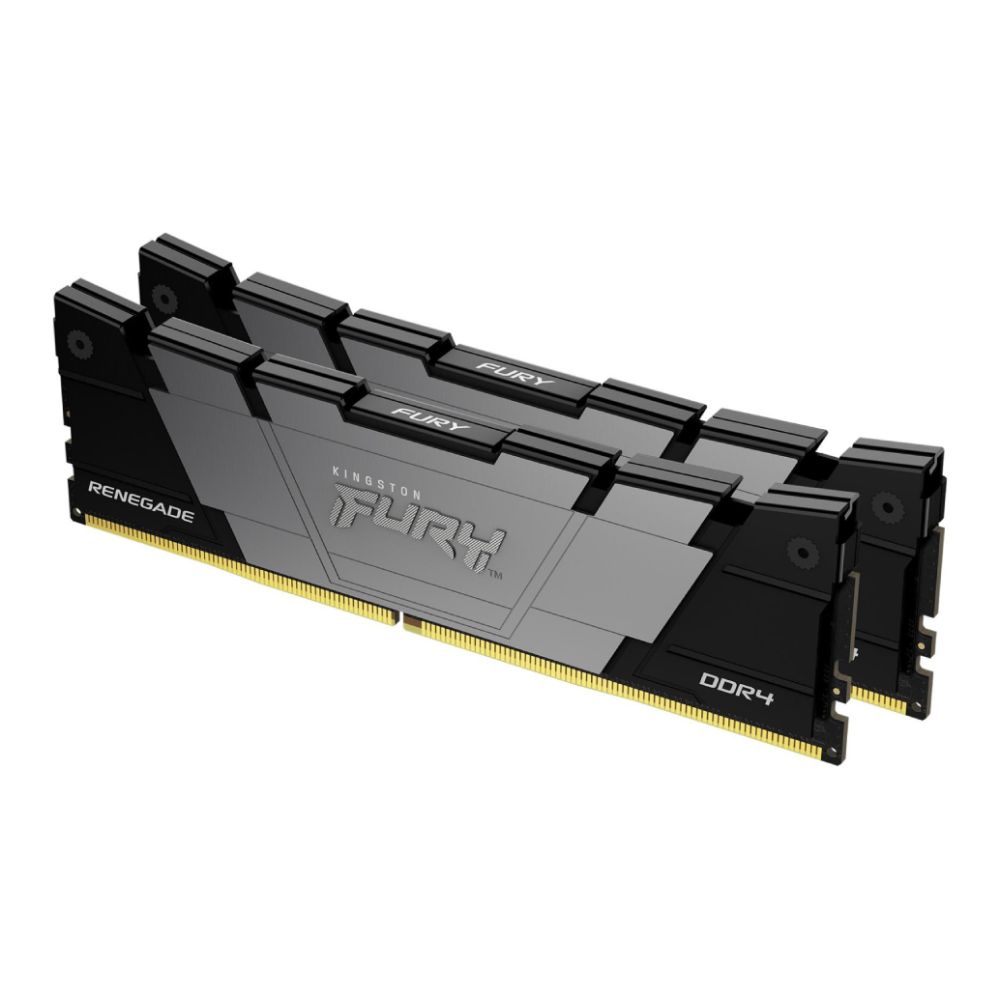

Kingston Technology FURY Renegade KF436C16RB12K2/32 32GB (2 x 16GB) DDR4 3600MHz (Kit of 2) Desktop RAM

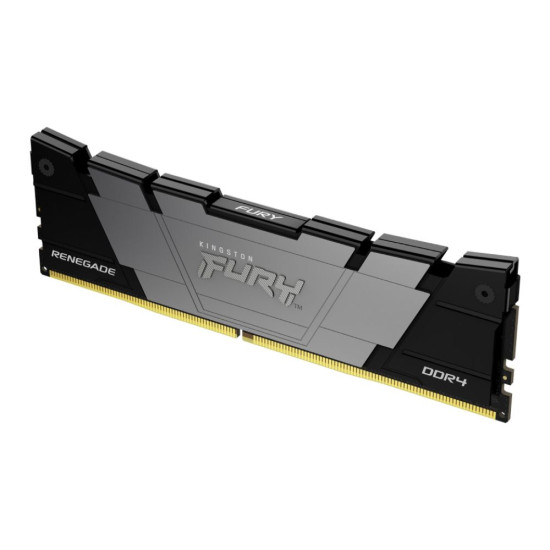

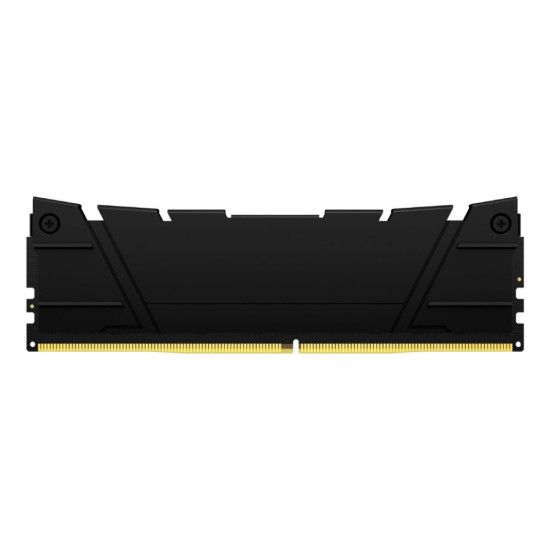

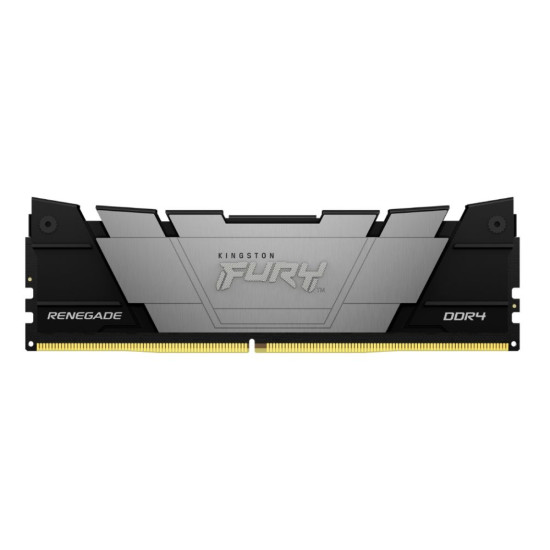

Kingston FURY KF436C16RB12K2/32 is a kit of two 2G x 64-bit (16GB) DDR4-3600 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Features
Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

On-Die termination (ODT)

16 internal banks; 4 groups of 4 banks each

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Height 1.65 (41.98mm), w/heatsink
