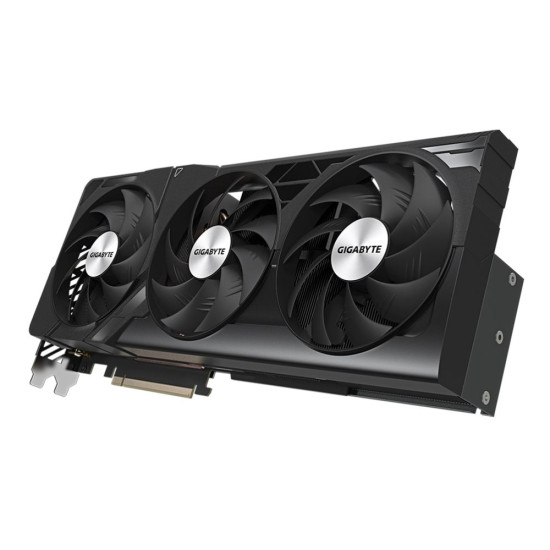

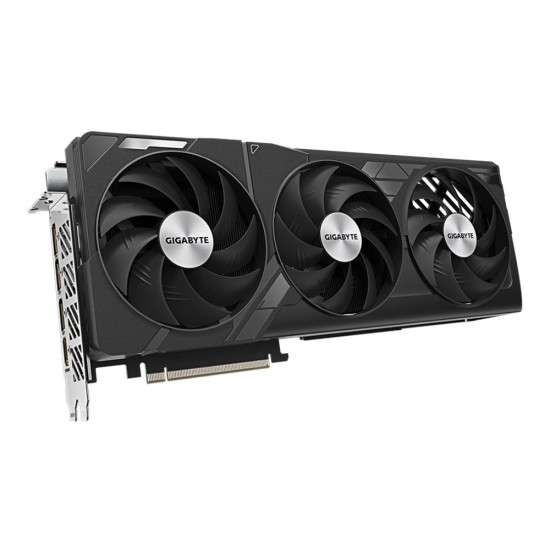

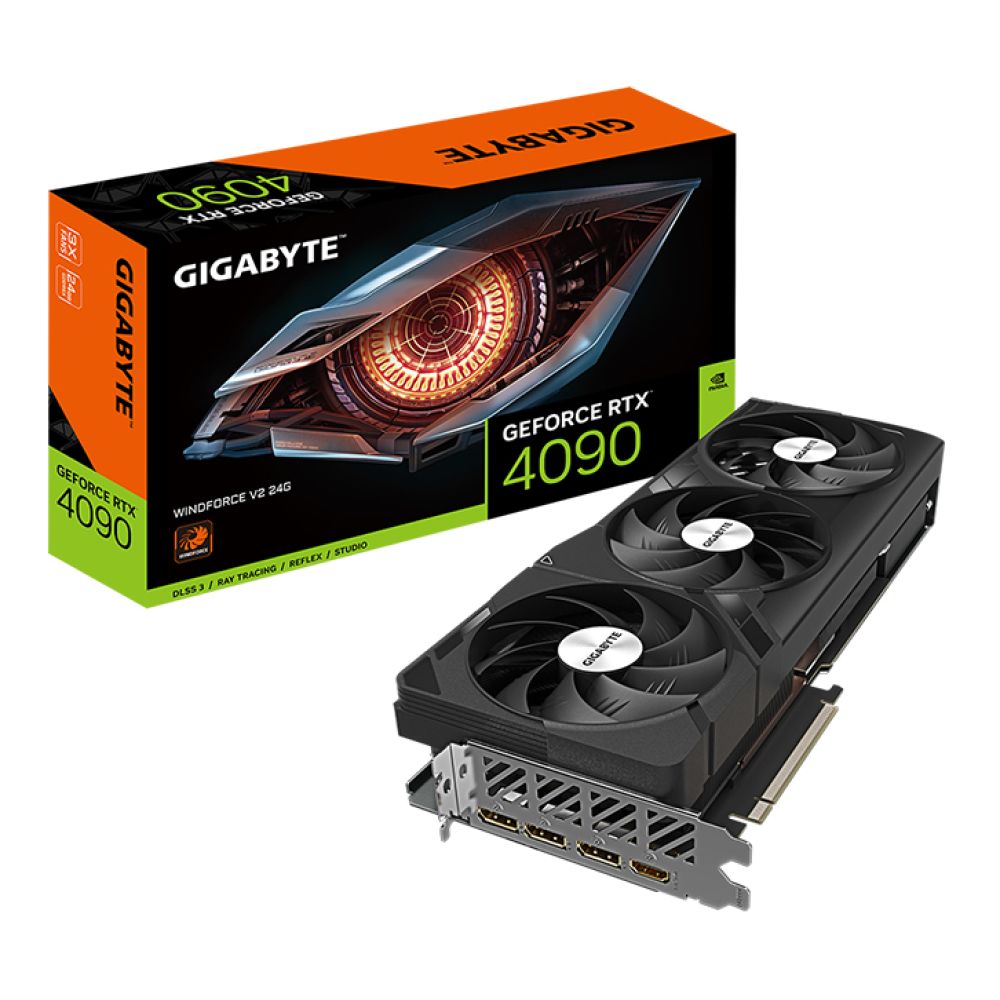

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24GB Ada Lovelace Graphics Card

SKU
GV-N4090WF3V2-24GD

Highlights

  • 24 GB GDDR6X Memory
  • NVIDIA GeForce RTX 4090 Graphics
  • 7680 x 4320 Max. Resolution
  • 3 x DisplayPort 1.4a, 1 x HDMI 2.1a
  • Speed: 21000 MHz
  • Black Colour
  • 3 Years Warranty
  • GV-N4090WF3V2-24GD
More Info Add to Wishlist
£1,759.99 inc. VAT.
In stock | *Free Next Working Day Delivery

Finance

Pay in 3 interest-free payment of £586.66
box.co.uk

Order by 3pm
for Free Next Day
Delivery*

Easy
Returns

Pay over 3 Months
with 0% Interest*

Product Description



GIGABYTE GeForce RTX 4090 WINDFORCE V2 24GB Ada Lovelace Graphics Card


WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.



LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

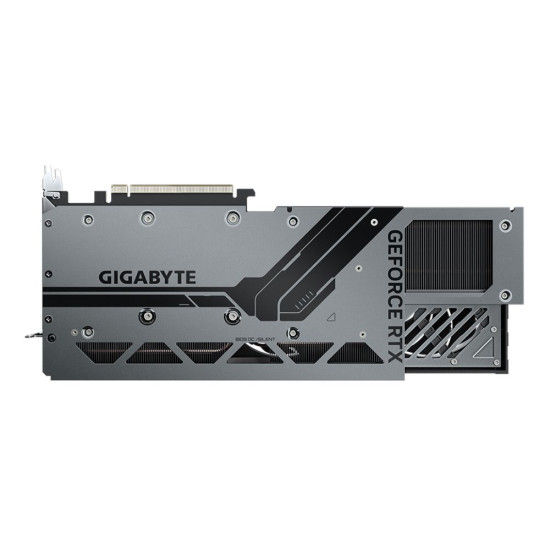

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ANTI-SAG BRACKET
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.


Note: The content above is generic for the series.
For Correct info about this particular model, please refer to Specifications section.

Technical Specifications
Condition
Condition New
Product Identifiers
MPN GV-N4090WF3V2-24GD
EAN 4719331313524
Type Graphics Card
Brand GIGABYTE
Model GeForce RTX 4090 WINDFORCE V2
Display
Max. Resolution 7680 x 4320
Cores & Clocks
CUDA Core 16384
Boost Chip Clock 2520 MHz
Memory (RAM)
Memory Type GDDR6X
Memory Size 24 GB
Memory Speed 21000 MHz
Memory Interface 384 Bit
Ports & Interfaces

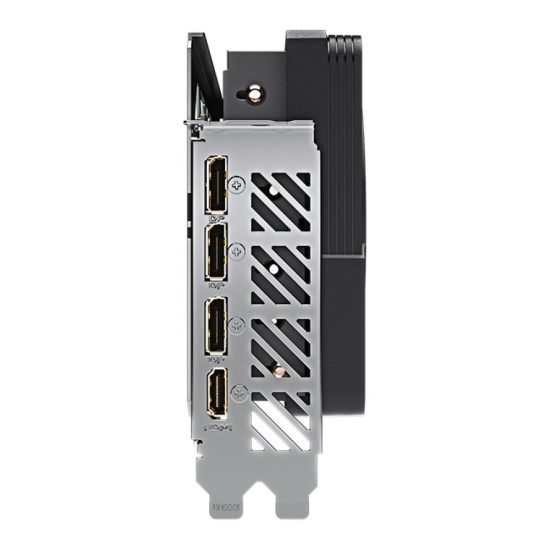

Connectivity 3 x DisplayPort 1.4a, 1 x HDMI 2.1a
Interface Type PCI Express 4.0
Compatible Port/Slot PCI Express 4.0
Features
AMD FreeSync No
NVIDIA G-SYNC Yes
Power Supply Compatibility
Power Connector 1 x 16-pin PCIe
Key Specifications
Chipset/GPU Manufacturer NVIDIA
Graphic Engine NVIDIA GeForce RTX 4090
Cooler type 3 Fan
Other Specifications
Warranty 3 Years
Colour Black
Dimensions 331 x 136 x 55.5 mm
