ROG Xbox Ally vs ROG Xbox Ally X - What’s the Difference?

“Portable Powerhouse… or Just Hype?”

That’s the question buzzing across the handheld gaming scene as ASUS teams up with Microsoft to unleash not one, but two new weapons in the war for your gaming hours: the ROG Xbox Ally and the more premium ROG Xbox Ally X.

Both promise console-grade performance in the palm of your hand. Both wear the Xbox badge. And both are built to blur the line between couch gaming and on-the-go domination.

But here’s the catch: they look similar, they feel similar, but under the hood, they’re playing a very different game.

So, what actually sets the Xbox Ally and the Xbox Ally X apart? In simple terms, the Xbox Ally vs Xbox Ally X decision comes down to performance, battery life, storage and how much future-ready hardware you actually need.

“You’ve Got Options — But Do You Have Answers?” Let’s find out in this in-depth showdown: ROG Xbox Ally vs ROG Xbox Ally X and help you figure out which one deserves your thumbs (and your wallet).

Update Note: This blog was updated in June 2026 after ASUS announced the ROG Xbox Ally X20 at Computex. We have added a new section covering what the X20 is, how it compares with the standard models and whether it is worth waiting for.

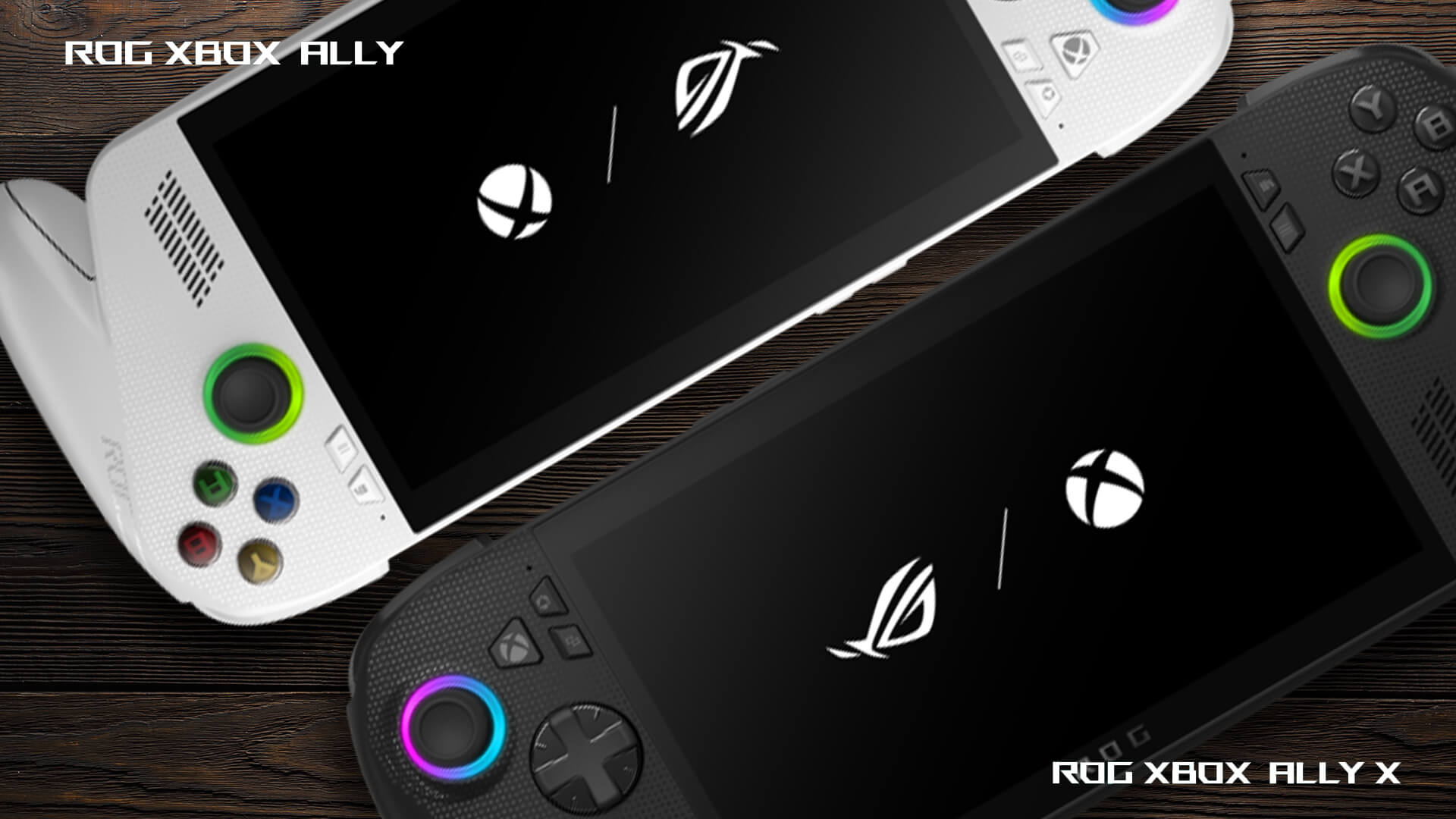

ROG Xbox Ally vs ROG Xbox Ally X – Full Specs Comparison

When two devices look nearly identical from the outside, the only way to see what truly separates them is to dig under the hood. Here’s the complete ROG Ally Xbox specification comparison for both variants.

Feature	ROG Xbox Ally X	ROG Xbox Ally
Operating System	Windows 11 Home	Windows 11 Home
Processor (CPU / GPU)	CPU: AMD Ryzen™ AI Z2 Extreme Processor, 2.0GHz (24MB Cache, up to 5.0GHz, 8 cores, 16 threads); AMD XDNA™ NPU up to 50TOPS GPU: AMD Radeon™ Graphics	CPU: AMD Ryzen™ Z2 A Processor, 2.8GHz (6MB Cache, up to 3.8GHz, 4 cores, 8 threads) GPU: AMD Radeon™ Graphics
Display	7-inch FHD (1920 × 1080), 16:9, IPS-level, Glossy, sRGB 100%, Adobe 75.35%, Gorilla® Glass Victus™ + DXC, 10-point touchscreen, 120Hz refresh, 500 nits, AMD FreeSync™ Premium	Identical to Ally X
Memory	24GB LPDDR5X (dual channel)	16GB LPDDR5 (6400MT/s dual channel)
Storage	1TB PCIe® 4.0 NVMe™ M.2 SSD (2280)	512GB PCIe® 4.0 NVMe™ M.2 SSD (2280)
I/O Ports	1 × 3.5mm Combo Audio Jack 1 × USB 3.2 Gen 2 Type-C (DisplayPort™ / Power Delivery) 1 × USB4 (Thunderbolt™ 4 compliant, DP 1.4, FreeSync, PD 3.0) 1 × UHS-II microSD card reader	1 × 3.5mm Combo Audio Jack 2 × USB 3.2 Gen 2 Type-C (DisplayPort™ / Power Delivery) 1 × UHS-II microSD card reader
Controls & Input	Identical on both: View/Menu buttons, L & R Hall Effect triggers and bumpers, D-pad, Command Center, Armoury Crate, ABXY, 2 × assignable grip buttons, dual full-size thumbsticks, HD haptics, 6-axis gyro	Same as Ally X
Audio	Dolby Atmos, Hi-Res certification (headphones), Smart Amp, AI noise-cancelling mic, dual speakers	Same as Ally X
Networking	Wi-Fi 6E (triple band, 2 × 2), Bluetooth® 5.2	Same as Ally X
Battery	80Wh, 4-cell Li-ion	60Wh, 4-cell Li-ion
Power Supply	Type-C 65W AC Adapter (20V, 3.25A, 100–240V AC universal)	Same
AURA SYNC	Yes	Yes
Weight	715g (1.58lbs)	670g (1.48lbs)
Dimensions (W × D × H)	29.0 × 12.1 × 2.75–5.09cm (11.42" × 4.76" × 1.08"–2.00")	Same
Security	Microsoft Pluton + Fingerprint Sensor	Microsoft Pluton + Fingerprint Sensor

In short, the ROG Xbox Ally vs ROG Xbox Ally X battle isn’t just about size, it’s about raw horsepower, battery stamina, and future-ready ports. But ASUS ROG Xbox Ally is a perfect upgrade from the previous ROG Ally and ROG Ally X launched in 2023 and 2024.

Box.co.uk is offering ASUS ROG Xbox Ally at excellent prices. Act fast, and get yours right now.

Shop ASUS ROG Xbox Ally (2025)



CPU, GPU & Performance Differences

Here’s where the two machines finally stop pretending to be twins. On paper they look close, but in reality, the Xbox Ally vs Ally X performance gap is wide enough to decide whether you’re sticking to lighter settings or pushing through more demanding AAA titles with fewer compromises.

The Xbox Ally X packs AMD’s Ryzen Z2 Extreme with 8 cores, 16 threads, and an XDNA NPU cranking out 50 TOPs of AI power. Translation? It chews through multitasking, holds frame rates steadier in demanding titles, and has headroom for future AI-driven upscalers. It’s the kind of chip that laughs at open-world chaos while still running Discord in the background.

The standard Xbox Ally settles for a Ryzen Z2 A with 4 cores, 8 threads, topping out at 3.8GHz. Perfectly fine for indies, lighter AAA games, or cloud gaming, but you’ll feel the ceiling when the action spikes.

Both use Radeon graphics, so visuals look sharp either way. But when you want stable FPS and a handheld that belongs in the same league as serious gaming handheld consoles, the Ally X is the one built to flex.

Memory, Storage & Upgrade Paths

The Xbox Ally X drops a massive 24GB of LPDDR5X RAM on the board, paired with a 1TB PCIe 4.0 SSD. That’s not just headroom, that’s breathing space for open-world monsters, mod-heavy RPGs, and streaming setups. With that much RAM, you can keep your game, voice chat, and background apps humming without the system gasping for air.

The standard Xbox Ally comes in leaner with 16GB RAM and 512GB SSD. Still solid, but once you start juggling big installs like Starfield, Cyberpunk, or multiple live-service updates, you’ll be reaching for a microSD sooner than you’d like.

Both handhelds support expandable storage, but the Xbox Ally X clearly wins here. It’s a machine designed to handle an expanding digital library, making it the crown jewel of the best ASUS Ally lineup.

Battery Life & Portability Trade-offs

For handhelds, battery isn’t just a spec, it’s survival. And in the Xbox Ally X vs Xbox Ally fight, the X brings the bigger lifeline.

The Xbox Ally X houses an 80Wh battery, a serious bump over the Ally’s 60Wh pack. That translates to extra hours in sprawling RPG sessions or cloud marathons without nervously eyeing your charger. It’s the difference between finishing that boss run or watching the screen fade mid-fight.

But stamina comes with weight. The Ally X tips the scales at 715g, while the Ally is lighter at 670g. Doesn’t sound like much, but in long handheld stints, your wrists will notice. The regular Ally wins in quick pick-up-and-play portability, but the X is built for gamers who live untethered.

Compared to other gaming consoles, both Allies punch above their weight, but only the X has the battery life to keep pace with hardcore sessions.

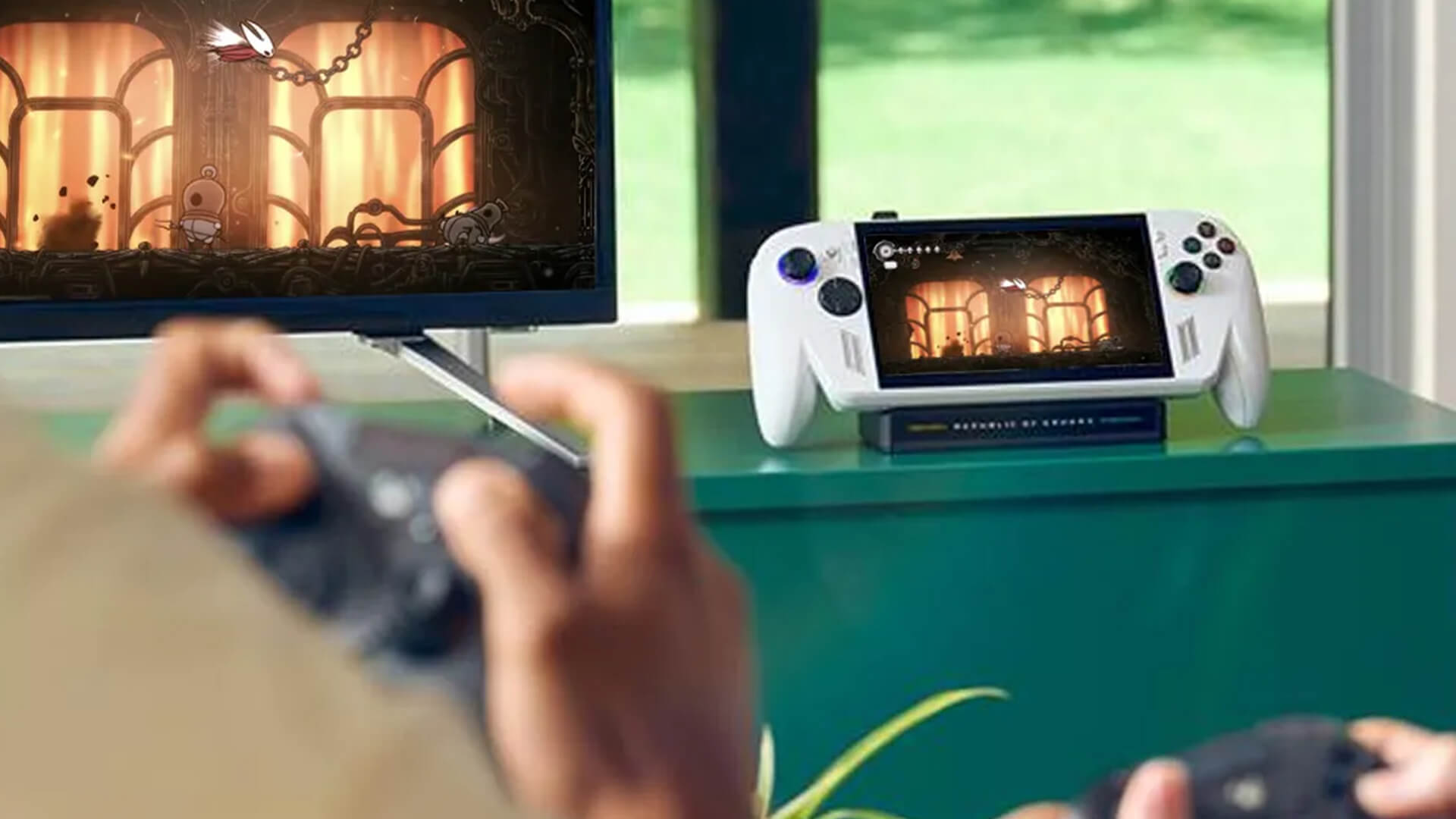

I/O, Connectivity & Docking Options

Ports might not sound that vital, but they decide how far your handheld can go and are an important part of every ROG Ally comparison. In the ROG Xbox Ally vs ROG Xbox Ally X matchup, the X comes out swinging.

The ROG XBOX Ally X specs also include USB4 support (Thunderbolt 4-level), which means docking to monitors, external GPUs, or even full battlestations is smooth. Hook it up, and suddenly your handheld is pulling desktop duties like streaming, editing, or playing maxed settings on a 4K screen.

The standard Ally sticks with dual USB-C 3.2 Gen 2 ports. Decent for charging and video out, but lacking the raw throughput that makes the X so versatile. Both share extras like UHS-II microSD slots and audio jacks, so storage expansion and headset support are covered either way.

For couch sessions, pairing with Xbox Controllers turns either handheld into a full co-op rig. But if you want a true plug-and-play setup that rivals a desktop, the ASUS ROG Xbox Ally X is the one built for docking dreams.

Controls, Ergonomics & Gaming Feel

When it comes to controls, the Xbox Ally and Xbox Ally X are basically clones. Both rock Hall Effect triggers, clicky bumpers, responsive thumbsticks, HD haptics, and even assignable grip buttons for custom setups. The 6-axis gyro adds motion precision for racers and shooters, giving handheld play a console-like edge.

Where they differ is comfort. The ROG Ally X Xbox handheld is heavier at 715g, so marathon sessions can feel chunkier compared to the lighter Ally. Still, with integration alongside Xbox Consoles and Game Pass, both feel like true extensions of the Xbox ecosystem.

That said, ASUS has now shown an even more premium control setup on the ROG Xbox Ally X20, so it is worth looking at what this special-edition model changes before making a final choice.

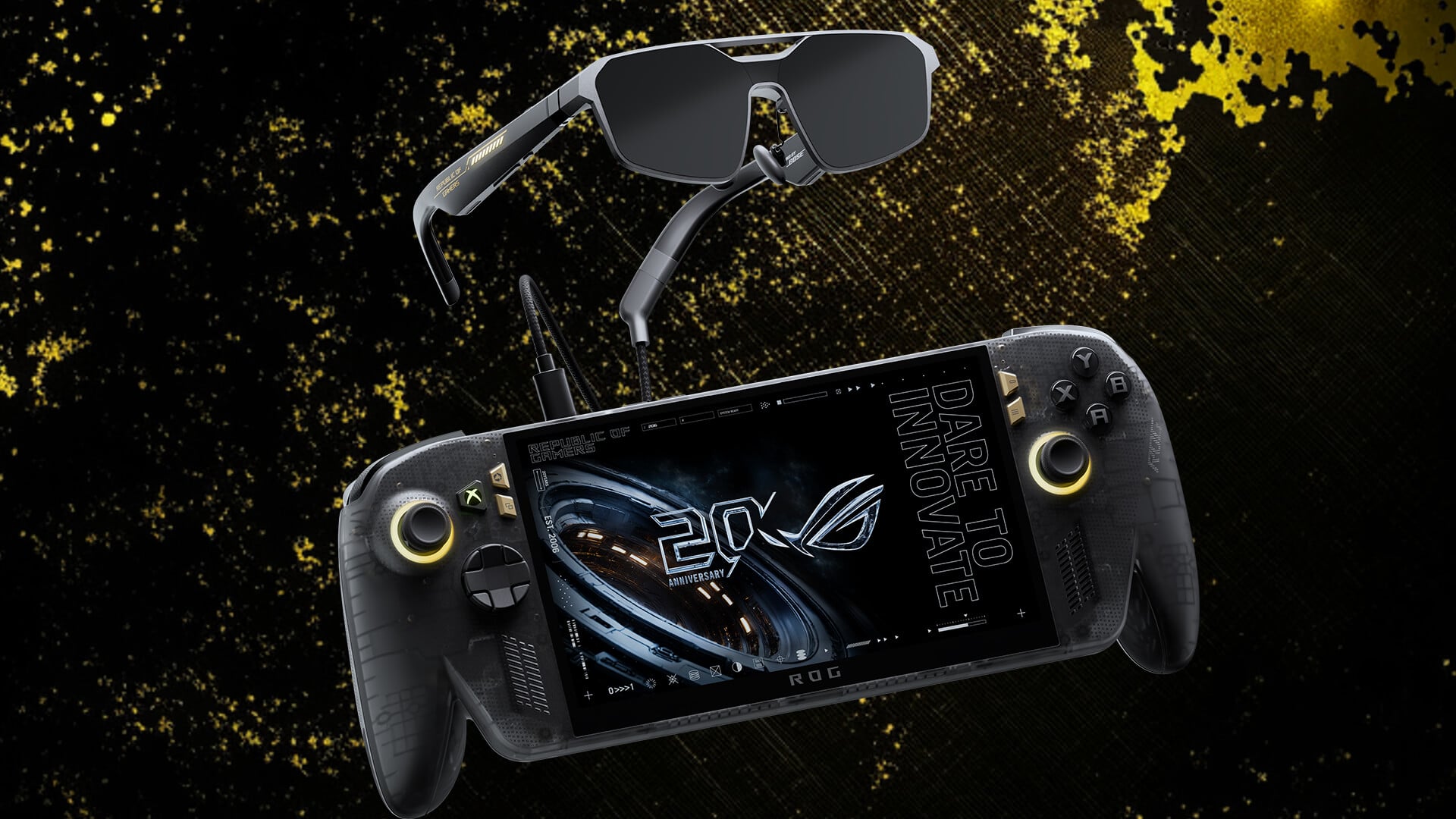

What About the ROG Xbox Ally X20?

In the battle of ROG Xbox Ally vs ROG Xbox Ally X, a new contender has entered the chat: the ROG Xbox Ally X20. ASUS announced the 20th-anniversary special edition at Computex on 1 June 2026, but there is no exact launch date confirmed yet. For now, it is expected to arrive in the second half of 2026.

The important thing is this: the X20 does not replace the main Ally vs Ally X decision for most buyers. It sits above them as a collector-style bundle for players who want the flashiest version of the handheld, not just the best value option.

Is the ROG Xbox Ally X20 a completely new model?

Not exactly. Think of it more like a limited-edition Ally X with some serious extras thrown in. It keeps the high-end direction of the ROG Xbox Ally X, including the Ryzen AI Z2 Extreme processor, 24GB LPDDR5X memory and 1TB PCIe 4.0 NVMe SSD.

Where it steps away from the standard X is in the screen, controls and presentation. ASUS has given the X20 a translucent black chassis with gold internal styling, an anniversary badge and a more premium “look at me” design. If the regular Ally X is the performance pick, the X20 is the showpiece.

What specs are different on the X20?

The biggest upgrade is the display. The ROG Xbox Ally X20 moves to a larger 7.4-inch OLED Nebula HDR screen with 120Hz refresh rate, FreeSync Premium Pro support and up to 1400 nits peak brightness. That is a proper jump from the 7-inch IPS-level display used on the standard ROG Xbox Ally and ROG Xbox Ally X.

Controls also get a lift. The X20 uses TMR joysticks, designed to help resist stick drift and reduce power use. It also adds smoother ergonomic face buttons and a transforming D-pad that can switch from a 4-way feel to an 8-way setup for better diagonal inputs.

Then there is the bundle itself. ASUS pairs the X20 with ROG XREAL R1 Edition 20 gaming glasses, giving players a 171-inch virtual screen experience when connected by USB-C. The glasses do not work on their own, so they are best seen as a bundled display accessory rather than a separate handheld feature.

Should you wait for the ROG Xbox Ally X20?

For most players, probably not. If you are choosing between the ROG Xbox Ally and ROG Xbox Ally X, the standard decision still comes down to price, power, battery life, storage and how serious your handheld gaming needs are. The ROG Xbox Ally X20 is more for collectors, ROG fans and players who specifically want the OLED display, anniversary design and bundled AR glasses.

Which One Should You Choose?

Choosing between the ROG Xbox Ally vs ROG Xbox Ally X or waiting for the X20 comes down to what kind of gamer you are. Ally is lighter and budget-friendly, X stacks power for the long grind, and the X20 is purely for collectors and enthusiasts.

• Who Should Buy ASUS ROG Xbox Ally: The Ally is for gamers who want a lighter, more affordable way into handheld PC gaming. It’s ideal for indies, cloud streaming, and quick Game Pass sessions without extra bulk.

• Who Should Buy ASUS ROG Xbox Ally X: The Ally X suits players who want extra RAM, bigger storage, longer battery life, and USB4 support. It’s built for extended play and heavier multitasking.

• Who Should Wait for ASUS ROG Xbox Ally X20: The X20 is for players who want the most premium version, not just the most practical one. It’s worth waiting for if you specifically want the OLED display, 20th-anniversary design, TMR joysticks, and bundled gaming glasses

The Originals: ROG Ally vs ROG Ally X

Before ASUS partnered with Microsoft on the Xbox editions, it had already been shaping the handheld scene with its own line. The ROG Ally (2023) was the debut, while the ROG Ally X (2024) arrived as its beefed-up successor.

The original ROG Ally made waves as ASUS’s first handheld PC, packing Ryzen Z1 and Z1 Extreme chips, 16GB RAM, and up to 512GB storage. It was sleek, fast, and opened the door for handheld PC gaming.

The newer ROG Ally X takes that foundation and dials everything up, more memory (24GB), more storage (1TB), a bigger 80Wh battery, and USB4 support. It’s not a redesign, but an evolution, aimed at gamers who want longer sessions, heavier multitasking, and future-ready ports.

Closing Thoughts

The ROG Xbox Ally vs ROG Xbox Ally X showdown proves one thing: ASUS is not just dabbling in handhelds. It is building a serious line-up. Both machines blur the line between portable and console-grade gaming, but they serve different players. The Ally is lighter, cheaper and still delivers for indies, cloud gaming and quick Game Pass sessions, while the Ally X doubles down on stamina, storage and future-ready power.

Then there is the ROG Xbox Ally X20, the 20th-anniversary version that adds an even more premium option to the mix. With an OLED display, special-edition design and bundled gaming glasses, it gives ROG fans another reason to keep an eye on ASUS’s handheld plans for late 2026.

Together, the newest additions in the ASUS ROG series carve out a spot in the same conversation as PS5 consoles and other heavy-hitting portables, proving handheld PC gaming is here to stay.

Frequently Asked Questions – ASUS ROG Xbox Ally X vs ASUS ROG Xbox Ally

What is the difference between the ROG Xbox Ally and the ROG Xbox Ally X?

The main differences lie in performance and endurance. The Ally X upgrades you with 8 cores + NPU, 24 GB RAM, 1 TB SSD, an 80Wh battery, and USB4 support, while the base Ally is lighter and more modest in specs.

How long will the battery last on the Ally X compared to the regular Ally?

With its 80Wh battery, the Ally X is expected to outlast the standard model’s 60Wh unit under similar loads. The extra capacity gives you more runtime before needing a recharge.

Can you upgrade storage (SSD/microSD) on both models?

Yes, both handhelds support a microSD via UHS-II and internal M.2 SSD slots, allowing you to expand your library beyond the factory drive.

Do both models support external displays/docking/eGPU?

The Ally X’s USB4 (Thunderbolt-level) gives you more flexibility for external gear, monitors or docks. The base Ally has capable USB-C ports, but less bandwidth for heavy extensions.

Which model is better for long gaming sessions and heavier usage?

For marathon sessions, mod-heavy games, and multitasking, the Ally X has the edge. The standard Ally is perfect for lighter gaming; cloud play or casual use without needing the extra headroom.

What is the ROG Xbox Ally X20?

The ROG Xbox Ally X20 is a 20th-anniversary special-edition handheld based on the ROG Xbox Ally X. It adds a larger OLED display, special translucent design, TMR joysticks and bundled ROG XREAL gaming glasses. It is expected in late 2026, but exact UK pricing and availability have not been confirmed yet.
