Seize Your Competitive
Edge

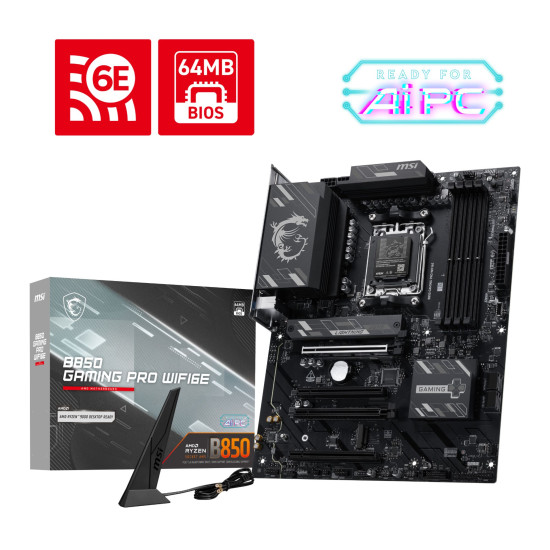

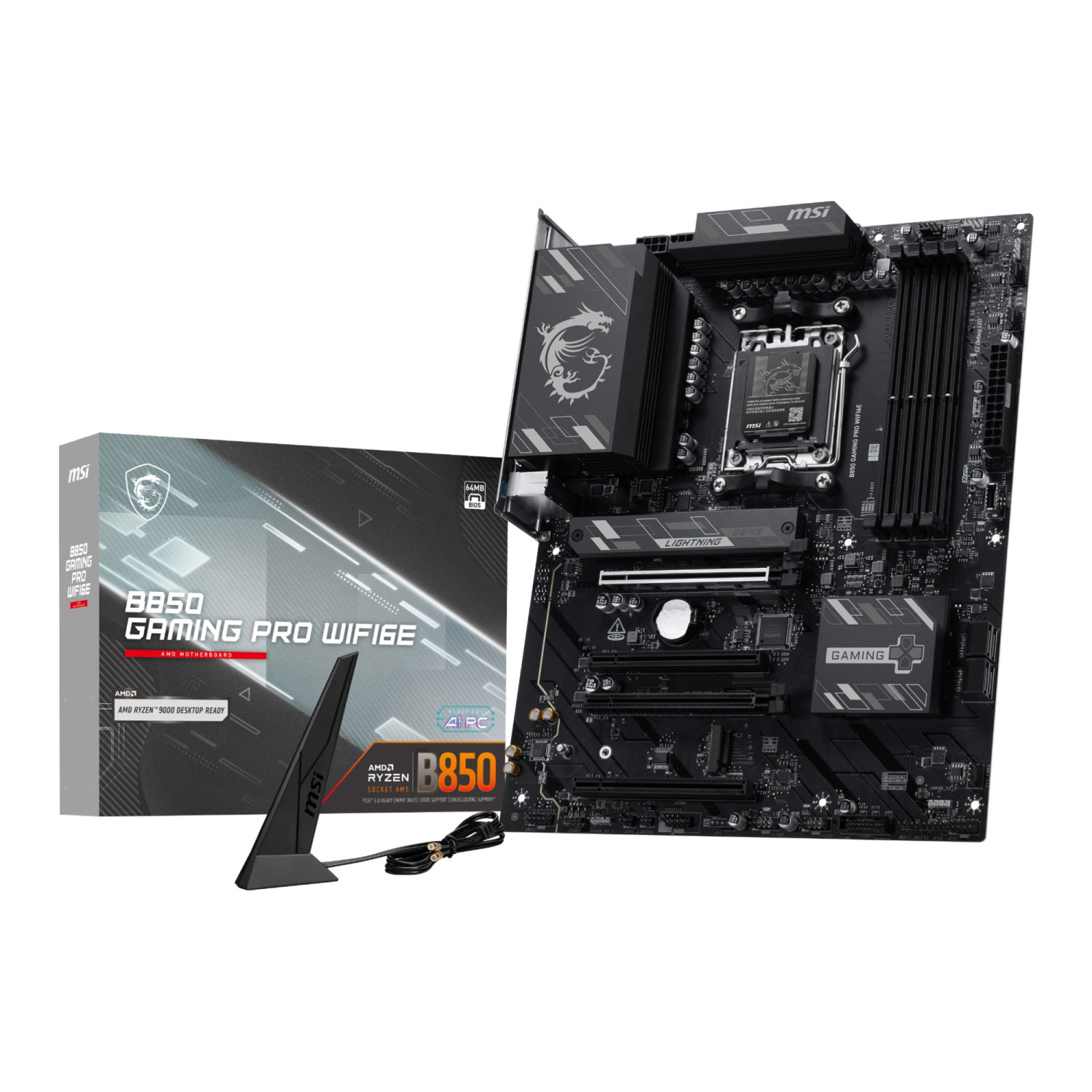

The MSI B850 GAMING PRO
WIFI is a high-performance ATX motherboard designed for both gamers and
enthusiasts. It features the cutting-edge AMD B850 chipset, supporting
the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors.
This powerful board boasts a robust 12-Duet Rail Power System, ensuring
stable power delivery for optimal performance. B850 GAMING PRO WIFI also
boasts ultra-fast DDR5 memory support and PCIe 4.0 technology, offering
lightning-fast connectivity for next-gen graphics cards and storage
devices. Users will appreciate the speedy 2.5G LAN and Wi-Fi 6E
capabilities, providing a seamless online gaming experience. Balancing
premium features with value, the B850 GAMING PRO WIFI is the perfect
motherboard for individuals looking for a new way to experience all that
the AM5 Socket has to offer.
Supporting The Latest
Ryzen Processors
The B850 GAMING PRO WIFI
motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B850
Robust 12 Duet Rail Power
System with P-PAK
Featuring exclusive MSI
Core Boost technology, dual 8-pin power connectors and EZ OC Tuning
functions, the B850 GAMING PRO WIFI is able to sustain heavy CPU power
loads to support resource-heavy games and software to suit your needs:
Digital PWM IC
12 Duet Rail Power System (P-PAK)
2 Phase SOC Power
1 Phase MISC Power
A Comprehensive Cooling
System
Frozr Guard: Extended
Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and
EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronise cooling with
strategically placed pin-headers - including your CPU fan header, Combo
fan and system fans.
Frozr Control: Manage speeds and temperature for each
of the fans of your system in MSI Center with Cooling Wizard and Frozr
AI Cooling.
4 x DDR5 Dual Channel
(8200+ MT/s OC)
Memory Boost: A
fully-isolated DDR circuit delivers pure data signals for optimal gaming
and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in
the MSI BIOS increases memory bandwidth and reduces latency. Four
different modes allow users to find out the optimal configuration based
on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily
enabled with auto power settings for optimised memory speed and
stability.
PCIe 4.0 x16 Slot
MSI PCI Express Steel
Armor slots are secured to the motherboard with extra solder points to
support the weight of heavy graphics cards. When every advantage in
games counts, Steel Armor also shields the point of contact from
electromagnetic interference.
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor*)
1 x PCIe 4.0/3.0 x16 slot
2 x PCIe 3.0 x1 slots
Gen5 M.2 Connector
The B850 GAMING PRO WIFI
motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
1 x Gen4 x4 64Gbps slot

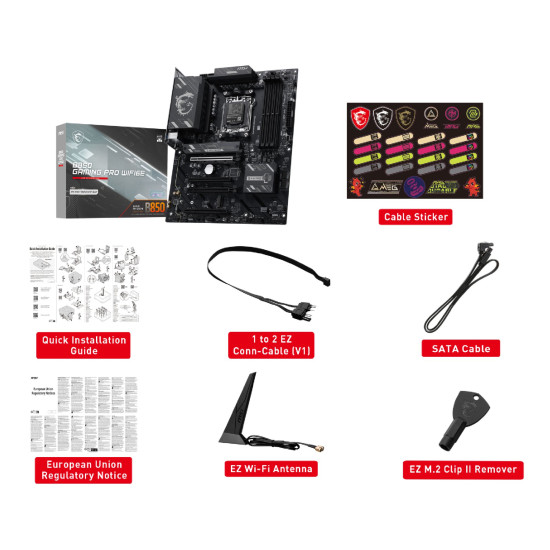

EZ DIY
The DIY Friendly designs
optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover
features a tool-free design so users don't have to worry about lost
screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple
push of the latch, without using any screws.
EZ PCIe Clip II: Allows for easy removal of the
graphics card by pressing the tail-like lock with one finger, even in
the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts
a beautiful appearance but also features a magnetic design, making it
easier to adjust the antenna's placement.

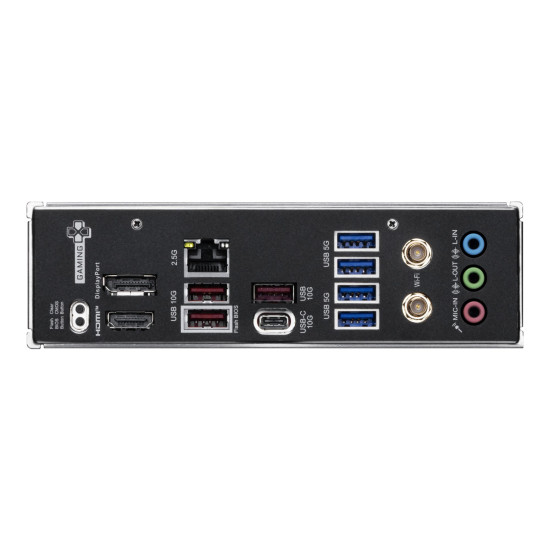

High-speed Connectivity
2.5G LAN: A
Realtek 2.5Gbps LAN controller delivers a premium network gaming
experience.
Wi-Fi 6E: Features the full-speed Wi-Fi 6E solution
(ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 10Gbps Type-C: Connect to devices and transfer
files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio
Boost.
