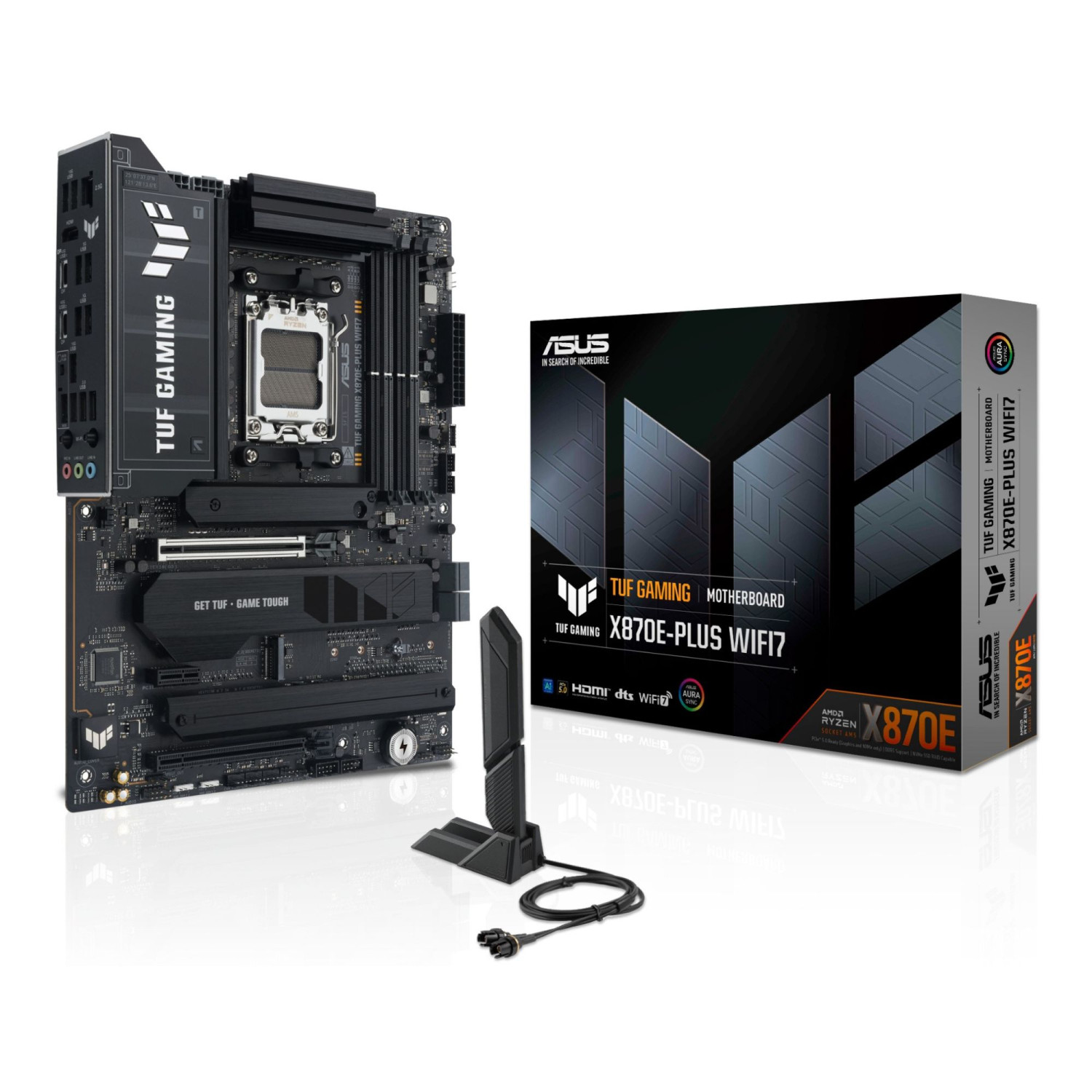

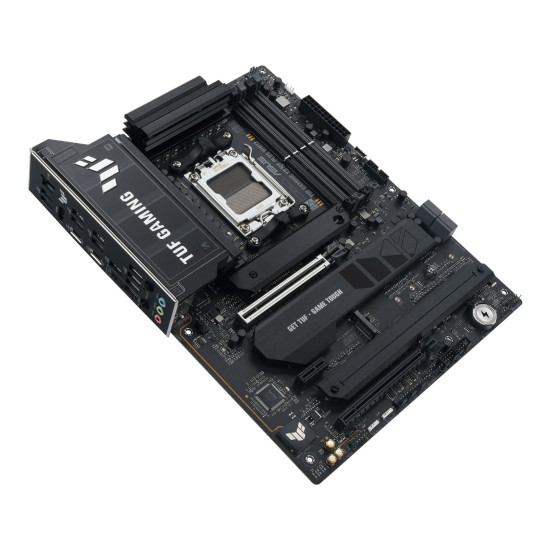

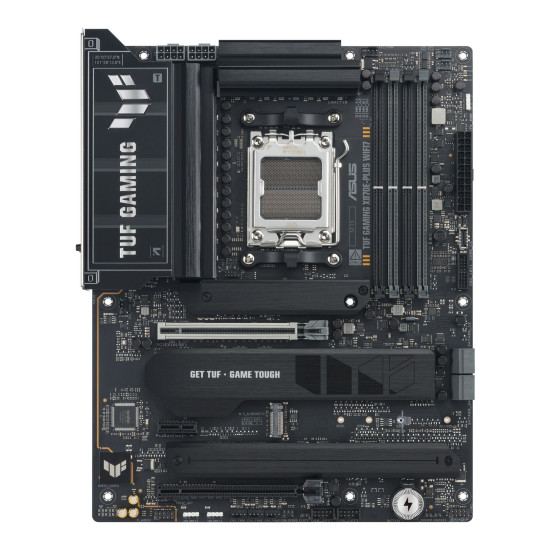

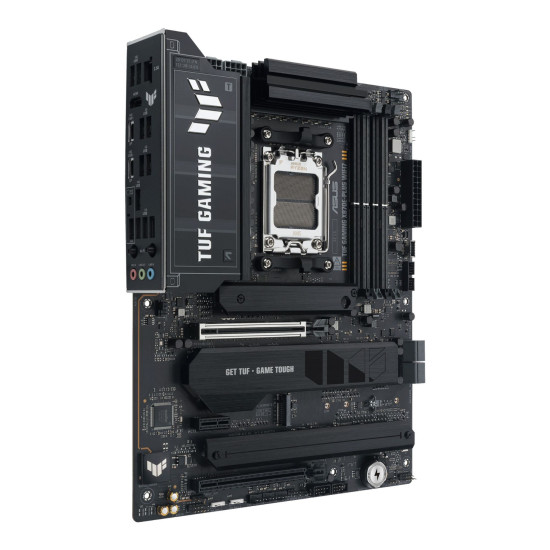

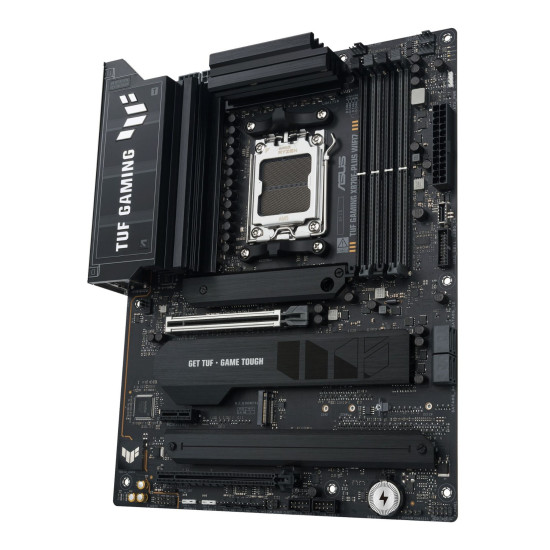

TUF GAMING
X870E-PLUS WIFI7 Motherboard
ASUS TUF
GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest
AMD Ryzen™ processors and combines them with game-ready features and
proven durability. Engineered with military-grade components, an
upgraded power solution and a comprehensive cooling system, this
motherboard goes beyond expectations with rock-solid and stable
performance for marathon gaming. TUF GAMING motherboards also undergo
rigorous endurance testing to ensure that they can handle conditions
where others may fail. This platform delivers the power and connectivity
that advanced AI PC applications demand.
Complete AI
Solution
ASUS AI
Solutions - including AI Advisor, AI Overclocking, AI Cooling II for
thermal control and AI Networking II for real-time bandwidth
optimization - offer smart assistance, one click overclocking, efficient
cooling and new levels of ultrafast connectivity.
AI Advisor
ASUS AI
Advisor is an ASUS technical expert that's always available to answer
your questions. Owners of compatible ASUS motherboards can interact with
this AI-powered technology using natural language to learn more about
their hardware. For DIY beginners, it can provide easy-to-understand
explanations of one-click optimization features like AI Overclocking and
AI Cooling II, and for seasoned PC-building veterans, it can offer
guidance and instructions on the latest features offered by ASUS.
AI Overclocking
Maximized
CPU performance, and predictions for ideal CPU and cooling settings,
pushing your system to its limits.
AI Cooling II
Optimized
thermals, and reduced noise via dynamic adjustment of fan speeds, based
on CPU temperatures.
AI Networking II
Optimized
network performance, helping to ensure seamless connectivity and
maximized WiFi 7 speeds.
Dynamic OC
Switcher
Dynamic OC
Switcher maximizes CPU performance by letting you set current and
temperature thresholds to automatically switch between a manual overlock
for heavy multithreaded workloads and Precision Boost Overdrive for
single-threaded tasks. The latest Overclocking Load Guard has an
enhanced instantaneous current protection mechanism to prevent users
from experiencing system crashes during overclocking.
UEFI BIOS
The UEFI
interface delivers easy-to-use configuration options for PC beginners,
and advanced features for veterans.
Premium Power
Design
Stable
power is crucial for maximizing the performance of AMD processors. The
motherboard is designed to meet the needs of high-core-count CPUs. It
features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side
and low-side MOSFETs and drivers into packages rated for up to 80A each.
This configuration ensures optimal power delivery, efficiency, stability
and performance for both current and future AMD processors.
DRAM Overclocking
Performance
Comprehensive
memory tuning options are the cornerstone of TUF GAMING motherboards.
With the motherboard, you can extract all the potential out of your DDR5
modules, whether they're from an extreme-speed kit or an entry-level set
that would otherwise be locked.
DDR5 Dominance
For those
who want to fly past stock DDR5 speeds, this motherboard is primed and
ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles
for Overclocking (EXPO™) support. Seasoned veterans can further tweak
performance via an extensive array of settings in the UEFI.
Asus AEMP
ASUS
Enhanced Memory Profile (AEMP) is an exclusive firmware feature for
PMIC-restricted memory modules. AEMP automatically detects the memory
chips on your kit and then presents optimized frequency, timing and
voltage profiles that you can quickly apply.
M.2 PCIe 5.0
Support
This
motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest
data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID
configurations to take advantage of the latest available speeds.
AIO Pump Header
An
integrated AIO management system enables full control of PWM or DC water
pumps, making it perfect for custom or all-in-one cooling setups.
Enlarged VRM
Heatsinks
The
extensive surface area of this heatsink covers the MOSFETs and chokes to
improve thermal performance.
Multiple
Temperature Sources
Each
header can dynamically reference five thermal sensors. Fan Xpert 4
allows you to map the temperature of supported ASUS graphics cards to
optimize cooling for GPU- and CPU-intensive tasks.
Superb PCH
Heatsink
An
expanded surface area for the chipset cooler maximizes system
performance and heat dissipation.
Enlarged M.2
Heatsinks
Three of
the four M.2 slots have dedicated heatsinks to help keep M.2 SSDs at
optimal operating temperatures and ensure consistent performance and
reliability.
Cooler
Compatibility
ASUS AIO
coolers offer robust performance, high overclocking potential, bold
aesthetics and customizable functionality for new TUF Gaming
motherboards, empowering you to build your dream gaming rig.
PCIe 5.0 for
Graphics Card
PCIe 5.0
offers twice the data transfer speed of PCIe 4.0, making it robust
enough to handle new data-heavy tasks. PCIe 5.0 also brings other
benefits, such as electrical changes to improve signal integrity,
backward-compatible CEM connectors for add-in cards and backward
compatibility with previous versions of the PCIe bus.
USB4® 40Gbps
Type-C® Port
Each port
delivers up to 40Gbps of bi-directional bandwidth for the latest
super-speed devices and drives. Both ports can be employed for up to two
external 4K displays.
Front USB 20Gbps
Type-C®
This
motherboard features a USB 20Gbps Type-C® front panel connector for
speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD)
3.0 technology to provide up to 30W of quick charging.
PCIe Slot
Q-Release Slim
Simply
tilt the card toward the latching mechanism to automatically unlock it
from the PCIe slot. This makes upgrades and maintenance easier than ever
before. Users will no longer need to fiddle with a tricky latch or even
press a button to release their graphics card from the slot.

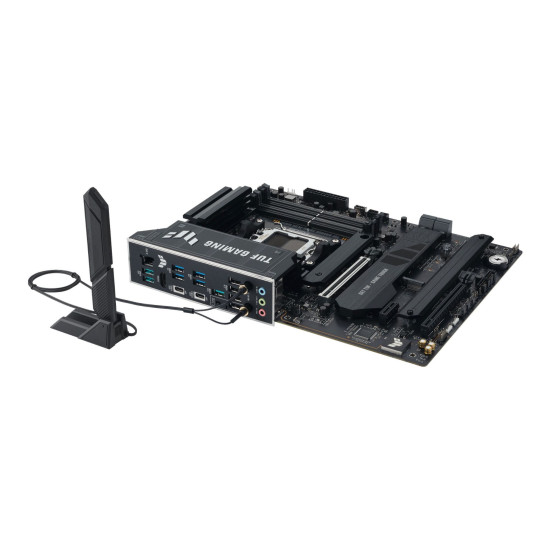

Q-Antenna
With
Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast.
Instead of slowly rotating two fasteners until they finally lock in,
they just snap into place. Less hassle, and more consistent performance.
M.2 Q-Latch
The
innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD
without the need for specific tools or screws. This design employs a
simple locking mechanism to secure the drive and neatly detach it with
one tap.
Q-LED
The
on-board Q-LED troubleshooting lights give PC builders a quick indicator
to confirm that key components - CPU, RAM, graphics card, storage
devices - are functioning normally during startup. It can also alert
them when memory modules have not been properly installed--even before
booting.
BIOS FlashBack™
BIOS
FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32
USB stick, insert it into the BIOS FlashBack™ port, and press a
button-no CPU or memory needed.
SafeSlot &
SafeDIMM
SafeSlot
is a reinforced metal sheath integrated with a PCIe slot to keep a card
firmly installed and to ensure the highest possible data speeds. The
SafeDIMM sheath is integrated to protect memory modules, empowering you
to insert them with speed, accuracy and confidence.
ESD Guards
ASUS added
special TVS diodes to boost electrostatic discharge prevention by up to
+/- 10 kV of air discharge and +/- 6 kV of contact discharge - well
above the industry standard.
TUF LANGuard
TUF
LANGuard is a military-grade innovation that integrates advanced
signal-coupling technology and premium surface-mounted capacitors to
improve throughput, helping to protect the motherboard from lightning
strikes and static electricity.

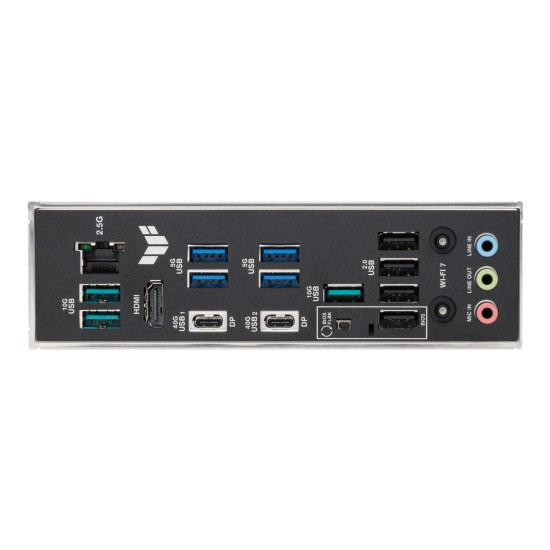

Stainless Steel
Back I/O Panel
TUF Gaming
motherboards feature a corrosion-resistant stainless steel rear I/O
panel with up to a 3X longer lifespan. These models pass a rigorous
72-hour salt fog test, surpassing the industry standard.
2.5Gb Ethernet
On-board
2.5Gb Ethernet kicks your LAN connection up a notch by improving
bandwidth speeds up to 2.5X faster than 1Gb connections.
WIFI 7
WiFi 7
ensures stable connections and low latency.
ASUS WiFi
Q-Antenna
ASUS WiFi
Q-Antenna delivers up to 18% stronger wireless signal reception compared
to the previous generation.
Realtek 7.1
Channel Audio
This
motherboard utilizes an audio codec designed in close collaboration with
Realtek - the Realtek ALC1220P. It features an unprecedented 120 dB
signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for
the line in, providing pristine audio quality. Additionally, an
impedance-sensing circuit automatically adjusts gain to ensure an
optimal volume range for your headphones.
DTS Audio
Processing
DTS® Audio
Processing enhances gaming headset and speaker audio experiences by
reducing distortion and by providing deeper bass, so games, movies and
music sound better. It also allows you to customize audio settings.
Outshine the
Competition
ASUS Aura
Sync offers synchronized lighting with other Aura Sync products,
including motherboards, graphics cards, monitors and peripherals.
Addressable Gen 2
RGB Headers
Automatically
optimize lighting effects for the number of LEDs present in compatible
ARGB gear.
