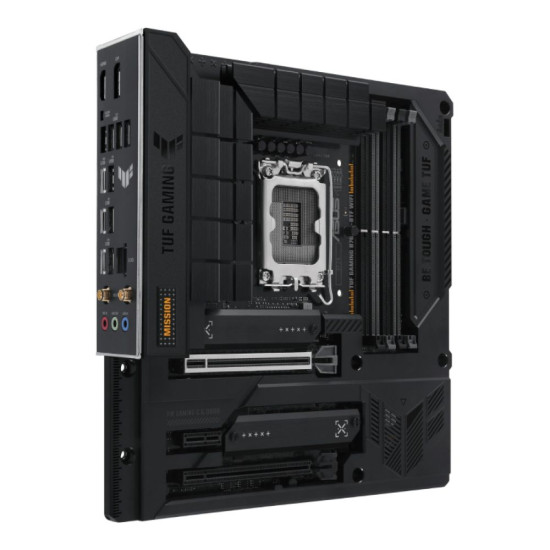

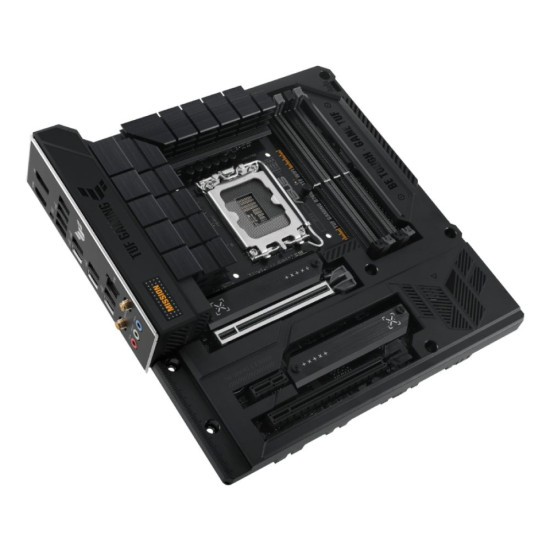

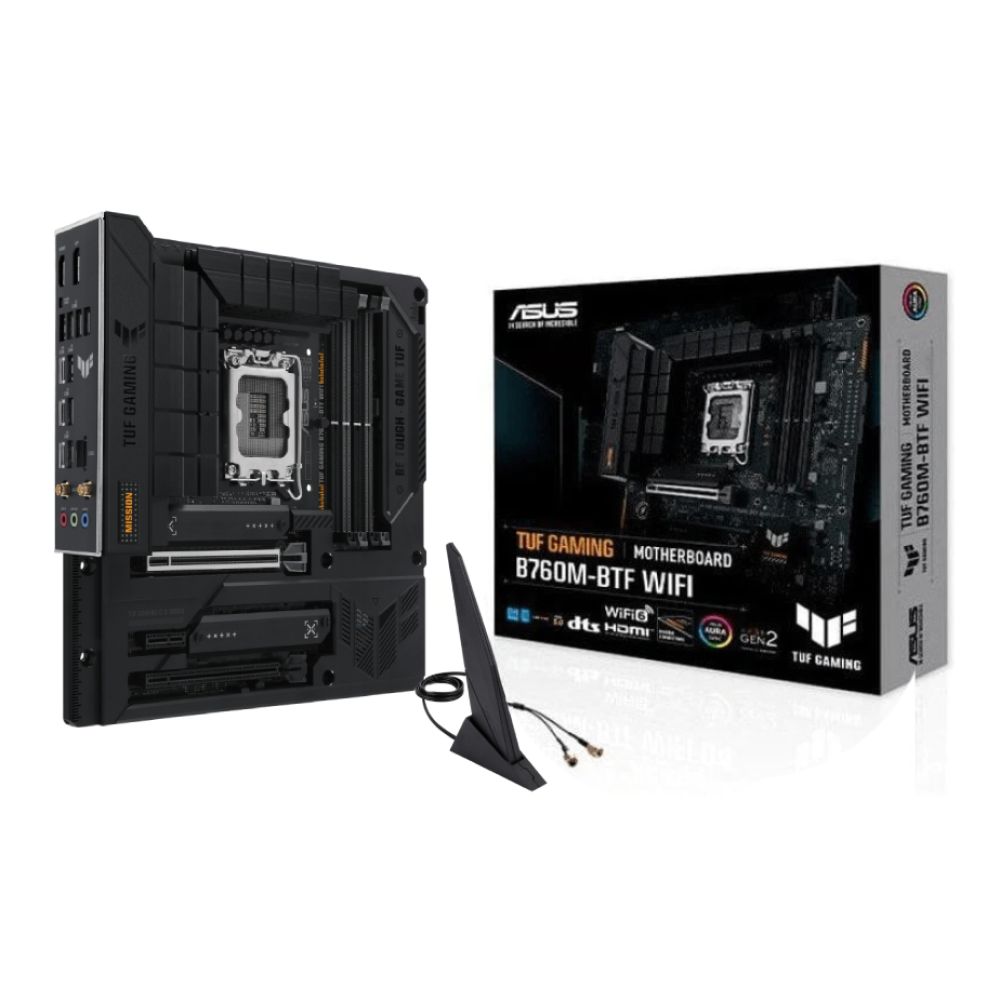

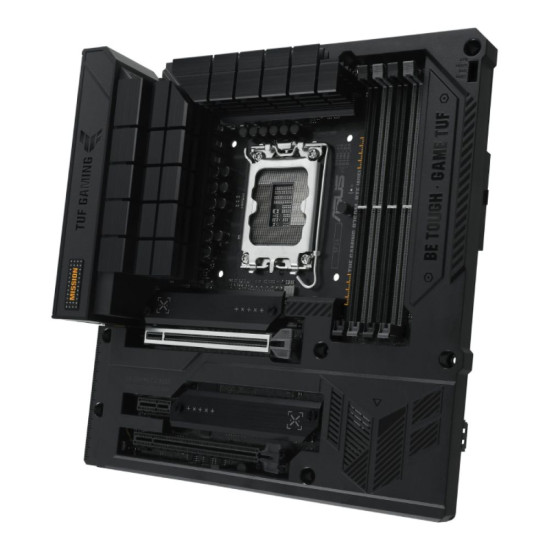

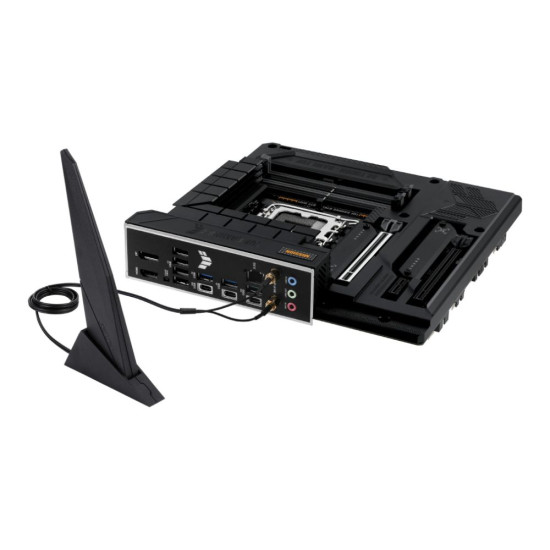

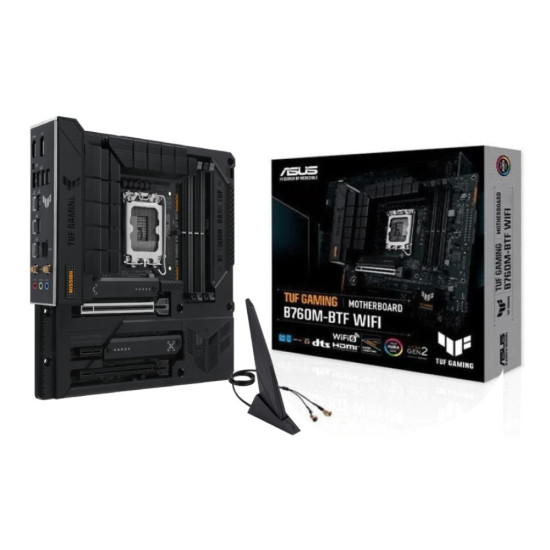

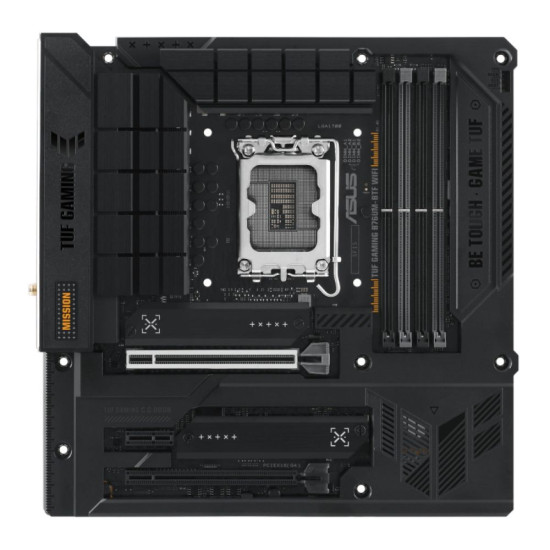

The TUF GAMING B760M-BTF
WIFI takes all the essential elements of the latest Intel® processors

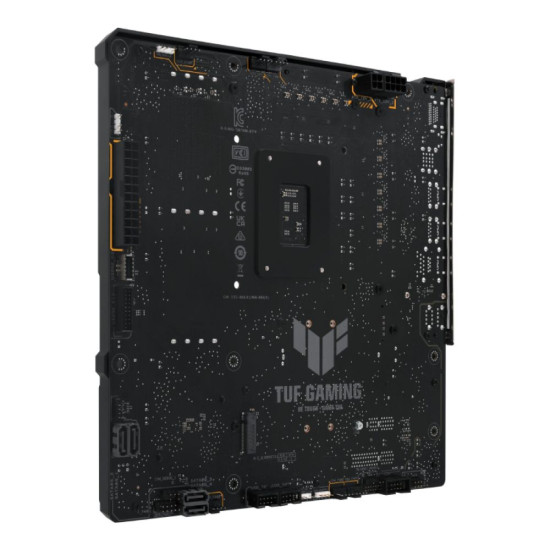

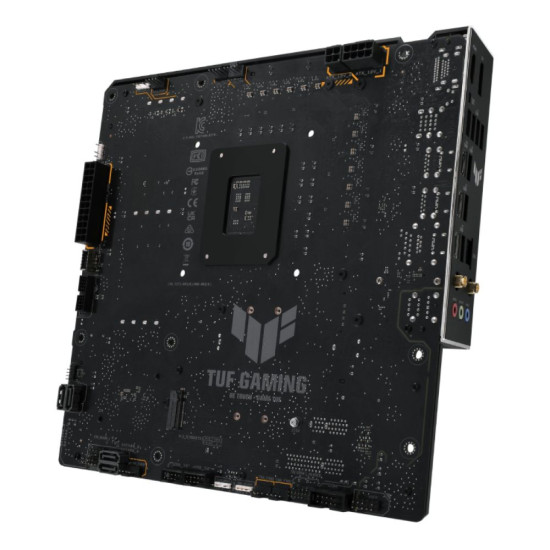

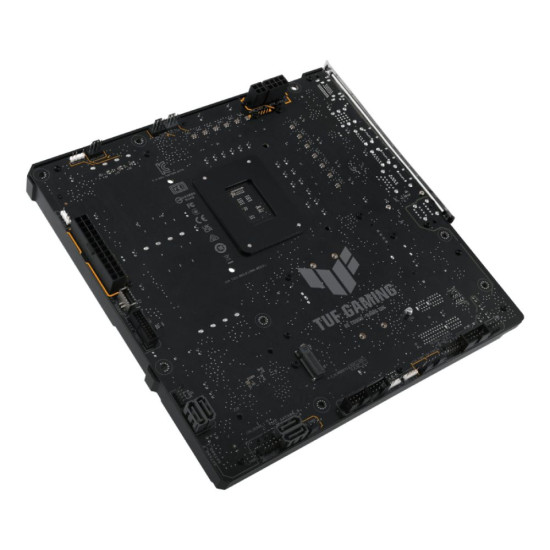

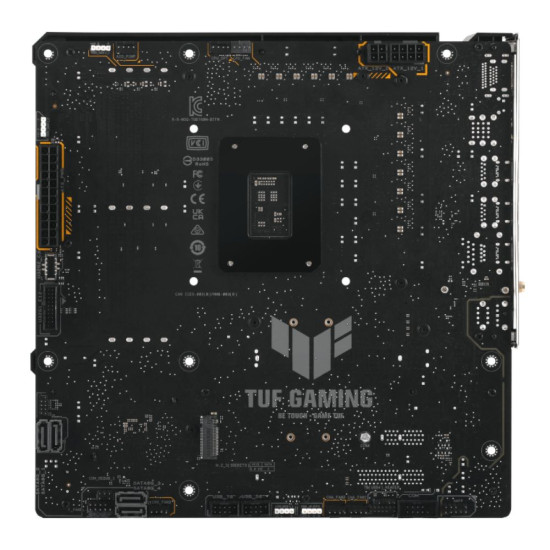

and combines them with game-ready features and proven durability. BTF
means Back To (the) Future for a new era for all PC DIY gamers; the
BTF series hides its connectors on the underside of the motherboard for
clean cable management and a minimalist build appearance.
This motherboard is engineered with military-grade components, an
upgraded power solution and a comprehensive cooling system so that it
can go beyond expectations with rock-solid performance and marathon
gaming.
INTELLIGENT CONTROL
The TUF GAMING B760M motherboards pack flexible tools to tune
every aspect of your system, enabling performance tweaks to expertly
match the way you play.
All-Around Energy Efficiency
The Power Saving function contains several settings that can
easily optimize power consumption and maximize energy savings. You can
enable a CPU power limit, darken Aura lighting, and set the fan profile
to a power saving mode. You can also toggle the Power Saver plan that is
built into Microsoft Windows.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to
configure, tweak and tune your system. It offers intelligently
simplified options for PC DIY beginners and comprehensive features for
seasoned veterans.
Armoury Crate
The ASUS-exclusive Armoury Crate software centralizes control
of all supported gaming products. A single intuitive interface lets you
customize RGB lighting for all compatible devices and link them to Aura
Sync for unied illumination. It also displays information from, and
enables control of, a growing hardware ecosystem. Armoury Crate also
enables easy product registration and features a news section to keep
you in touch with the gaming community.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options
to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0
storage, the TUF GAMING B760M-BTF WIFI is the perfect foundation for
your next Intel battle rig.
DrMOS Power Stages
12+1 power stages combining high-side and low-side MOSFETS and
drivers into a single package to deliver power, efficiency and stable
performance for all compatible Intel processors.
Six-Layer PCB Design
The multi-layered printed circuit board design quickly
dissipates heat around the voltage regulators to improve overall system
stability and provide the CPU with more overclocking headroom.
8+4 Pin ProCool Power Connectors
Compared to most power inputs, ASUS ProCool connectors are
built to tight specifications to ensure full contact with PSU power
cables. The resulting lower impedance helps prevent hotspots and
connector failure.
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to
the CPU, improving system stability.
TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider
temperature tolerance and a 2.5X-longer lifespan than standard
motherboard capacitors.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of
the finest in the industry, optimized for ultra-smooth and ultra-clean
power delivery to the CPU at all times.
Unleash DDR5 With AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware
feature for PMIC-restricted memory modules. AEMP II is based on a CPU
and memory modules ability to train the memory chips on your kit, and
it presents an optimized clock speed that can effortlessly unleash
performance.
Built through a flexible training method, AEMP II makes it easy to not
only tune the memory above baseline settings but also maintain the
stability of system operation, whether getting the most out of an
entry-level module or priming a high-speed kit for ultimate performance.
PCIe 4.0 Support
The two PCIe 4.0 M.2 slots on the topside and one PCIe 4.0 M.2
slot on the underside support up to three 2280 devices and the
data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker
boot-up and app load times with OS or application drives.
Cooler By Design
1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes
to improve heat dissipation.
2. Optimized M.2 Heatsink Design
The two topside M.2 slots have dedicated heatsinks, keeping M.2 SSDs at
optimal operating temperatures to ensure consistent performance and
reliability.
Comprehensive Fan Controls
TUF GAMING B760M motherboards feature comprehensive fan
controls that can be configured via the Fan Xpert 2+ utility in Armoury
Crate or via the award-winning ASUS UEFI BIOS.
Connectivity
The TUF GAMING B760M-BTF WIFI reaches new heights of
performance potential with the latest version of PCI Express, while an
arsenal of USB ports includes four Type-C connections, and Thunderbolt 4
expands compatibility and bandwidth even further.
EASY PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF
GAMING Alliance ecosystem grants compatibility, while Armoury Crate has
Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options
and peripheral settings. This platform has intuitive tools to build and
optimize dream rigs.

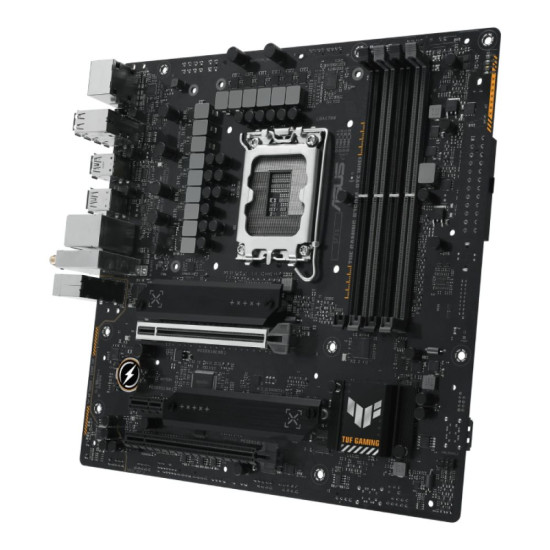

Optimized Cable Management
The hidden-connector design can be ideal for a first-time
builder, because it allows easier cable management and also enhances a
builds appearance by presenting neat and clean internals.
*This motherboard is compatible with specific case models.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted
PC component brands to ensure compatibility across a wide range of
parts, such as PC cases, power supplies, CPU coolers, memory kits and
more. With new partnerships and components being added regularly, the
TUF GAMING Alliance will continue to grow even stronger.
SafeSlot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe
slot to keep a card firmly installed. In addition, the ASUS SafeDIMM
sheath is added to support and protect memory modules on select ASUS
motherboards, empowering you to insert modules with speed, accuracy and
confidence.
ESD Guards
ESD Guards prolong the life of components while preventing
damage from electrostatic discharge, providing protection for up to +/-
10 kV of air discharge and +/- 6 kV of contact discharge greatly
surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.
Surface-mounted TVS diodes in a dual in-line package help protect your
PC from voltage spikes.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates
advanced signal-coupling technology and premium surface-mounted
capacitors to improve throughput, protecting the motherboard from
lightning strikes and static electricity.

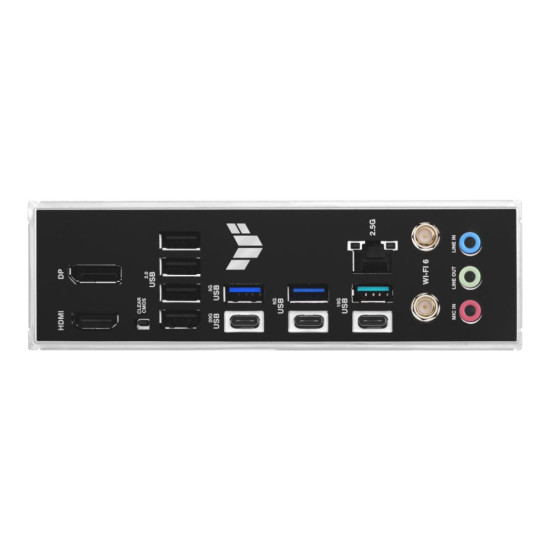

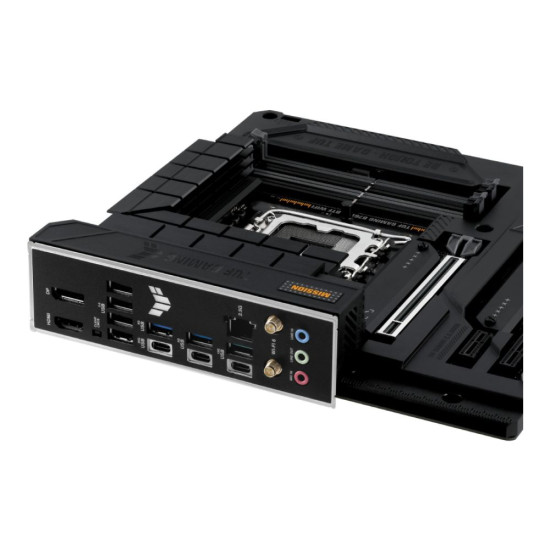

Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless
steel back I/O panel bonded with chromium oxide to provide a lifespan
thats three times longer than traditional panels. With this protective
feature, TUF GAMING motherboards passed 72-hour salt fog testing, while
other brands only passed 24-hour testing.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an
M.2 SSD without the need for specific tools. The design employs a simple
locking mechanism to secure the M.2 SSD, neatly eliminating the need for
screws.
Removable Captive Screws
Specialized M.2 slot screws reduce the risk of dropping or
losing a screw somewhere in your case during M.2 heatsink removal.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a
quick indicator to confirm that key components CPU, RAM, graphics
card, storage devices are functioning normally during startup.
Clear CMOS
The Clear CMOS button quickly resets BIOS settings to factory
default. It can also be used to reboot the PC if incorrect BIOS settings
have been selected.
IMMERSIVE GAMING
TUF GAMING B760M motherboards provide a feature-packed
high-performance gaming package, with ultrafast networking for smoother
online gameplay, pristine audio with positional cues for FPS Gaming, and
onboard RGB lighting that syncs with attached gear to personalize your
gaming atmosphere.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive
deep-learning database to reduce background noise from the microphone*
and incoming audio while preserving voices. Distracting keyboard
clatter, mouse clicks and other ambient noises are muffled so you can
hear and be heard with excellent clarity while gaming or during calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a
3.5 mm headset.
Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with
Realtek for TUF GAMING B760M motherboards feature an unprecedented
signal-to-noise ratio for the stereo line out, providing pristine audio
quality.
DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio
experiences by reducing distortion and by providing deeper bass, so
games, movies and music sound better. It also allows you to customize
audio settings.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs
on Gen 2 RGB devices, empowering Aura Sync to automatically tailor
lighting effects across your whole system. The new headers also offer
full backward compatibility with existing Aura Sync gear.
