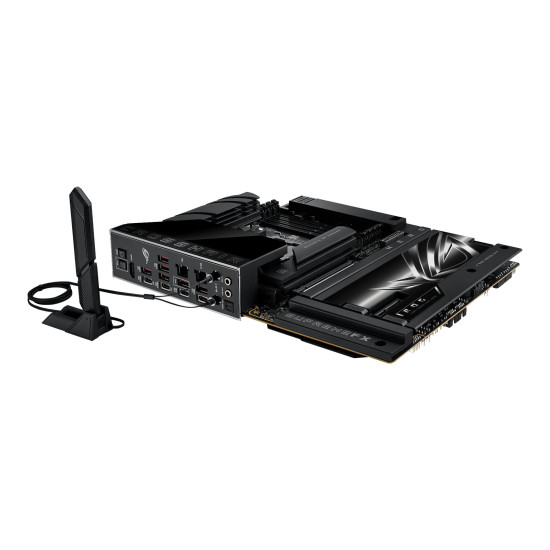

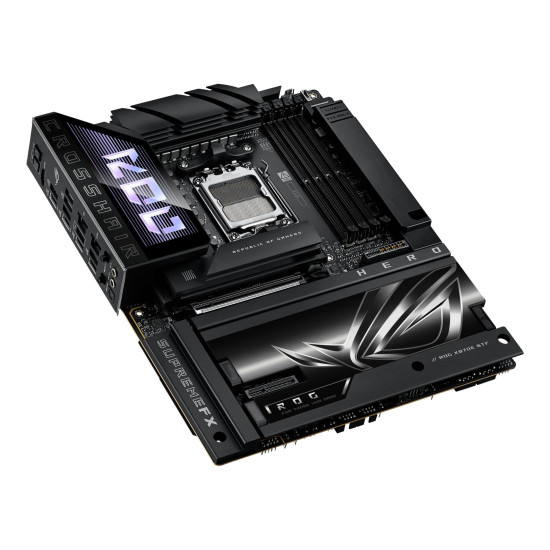

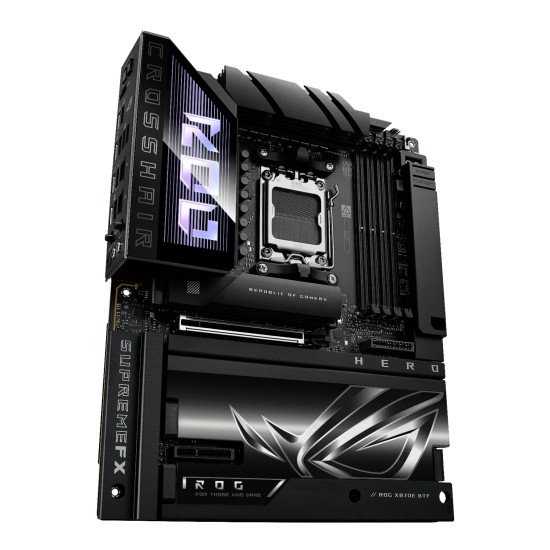

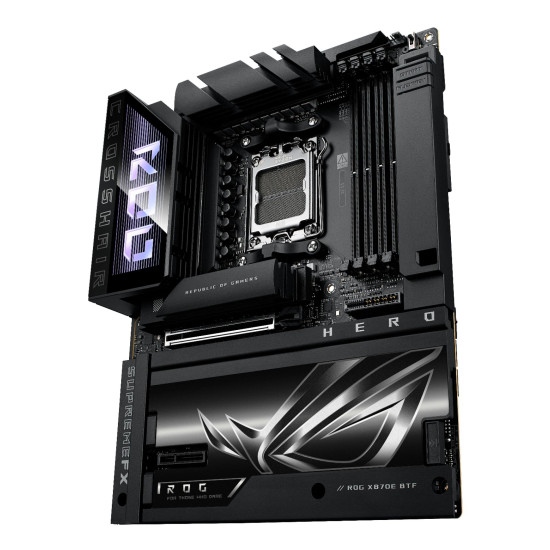

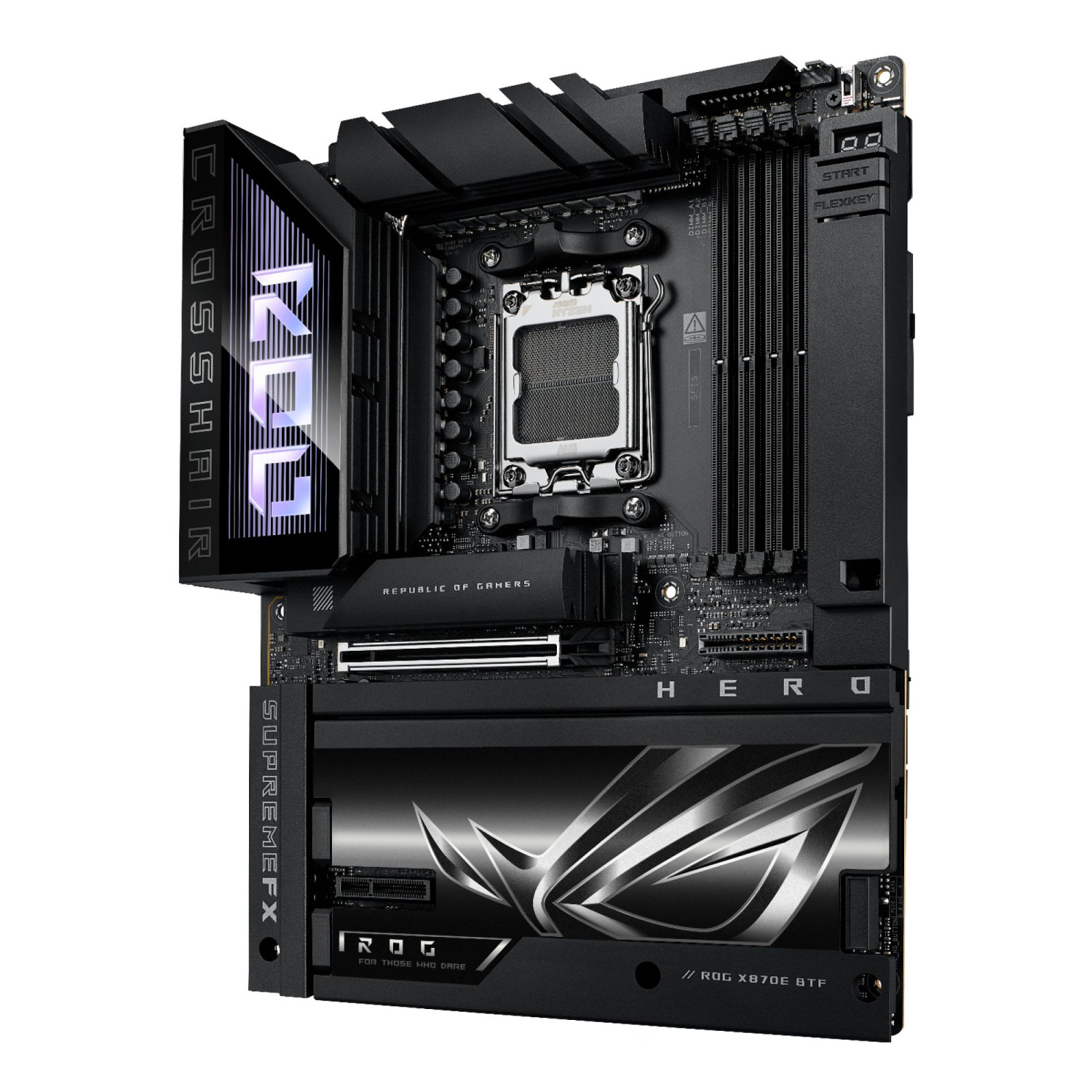

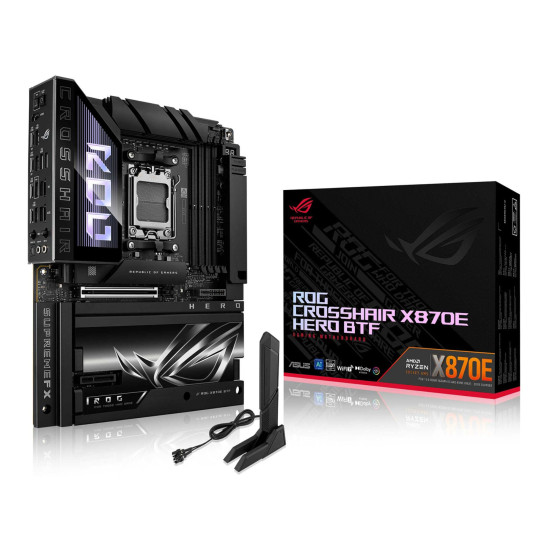

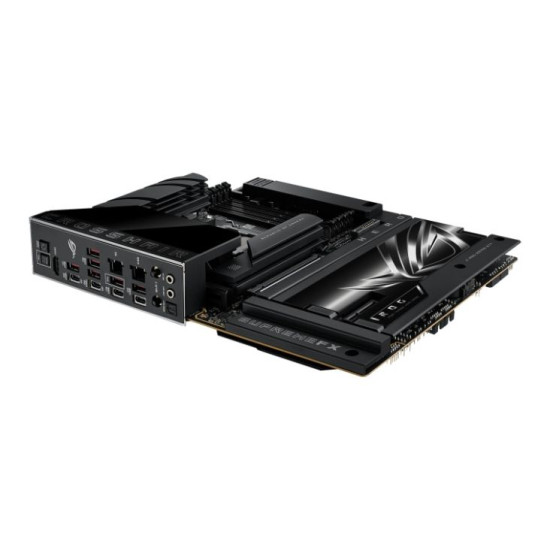

ASUS ROG CROSSHAIR X870E
HERO BTF ATX Motherboard
The ROG CROSSHAIR X870E
HERO BTF is a premium AMD AM5 motherboard crafted for high-performance

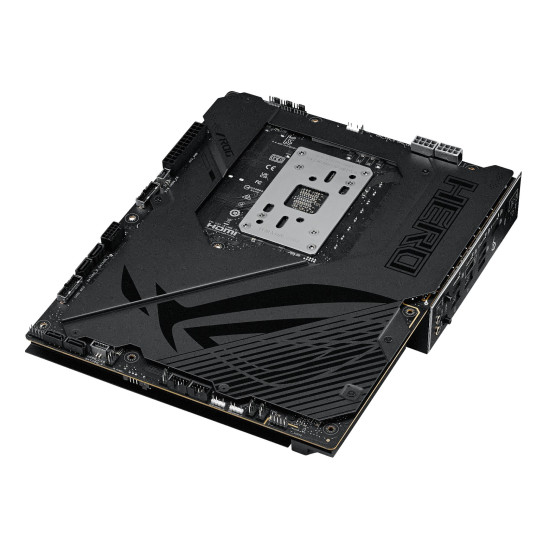

gaming and enthusiast builds. Featuring ASUSs innovative BTF ("Back to
the Future") hidden-connector design, this board routes power and data
cables such as CPU power, SATA, USB, and fan headers to the back edge of
the motherboard for ultra-clean cable management and improved airflow.
It includes a high-power PCIe 5.0 x16 slot on the front to deliver up to
600W directly to compatible BTF graphics cards, eliminating the need for
bulky external GPU power cables while maintaining support for standard
GPUs. With robust DDR5 memory support beyond 8200+ MT/s, Wi-Fi 7, dual
2.5Gb and 5Gb Ethernet, multiple USB4 Type-C ports, and comprehensive
cooling, the HERO BTF balances extreme performance, advanced
connectivity, and sleek aesthetics. Perfect for next-gen AMD Ryzen 7000,
8000, and 9000 Series processors, this motherboard empowers clean,
powerful, and visually stunning PC builds.
Advanced BTF Design
With the combination of a
BTF graphics card, motherboard and chassis, you can enjoy a full
hidden-connector experience. This Advanced BTF approach is achieved
through the new graphics card high-power slot available on BTF
motherboards, which can deliver up to 600 watts to BTF-compatible
graphics cards. With a full set of BTF components, builders can
eliminate visible cables for an ultra-clean aesthetic.
Hidden Connector Design
The hidden-connector design can be ideal for first-time
builders because it provides easier cable management. The absence of
visible cables also creates a clean and tidy look that would normally
require an expert.
High-Power GPU Slot
The graphics card high-power slot stands ready to supply all
the wattage that a BTF graphics card needs. This special design can
deliver up to 600 watts through the motherboard itself, eliminating the
need for visible 8-pin or 16-pin power cables on the front.
ASUS AI Intelligence
ASUS AI Cache
Boost
Supercharge
your large language model (LLM) workflows with AI CACHE BOOST. Exclusive
to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series
CPUs, this BIOS setting optimises CPU cache and memory pathways to
deliver up to 29% faster local LLM performance with high-speed memory
tuning.
ASUS AI Advisor
Using AI technology to understand natural-language questions or
scenario descriptions, ASUS AI Advisor allows users to explore the
functionality and advanced features of ASUS motherboards in a simple and
straightforward way.
AI Overclocking
ASUS AI Overclocking profiles the CPU and cooling to predict
the optimal configuration and push the system to its limits. Predicted
values can be engaged automatically or used as a launching ground for
further experimentation.
AI Cooling II
A proprietary ASUS algorithm slashes unnecessary noise while
running a quick stress test and then monitors CPU temperatures to
dynamically adjust fans to optimal speeds.
AI Networking II
AI Networking II combines intelligent technologies to
continuously optimise network performance, provide trustworthy and
seamless connectivity, and unleash the full speed of WiFi 7.
Overclocking Enthusiast?
Dynamic OC
Switcher
Dynamic OC
Switcher maximises CPU performance by letting you set current and
temperature thresholds to automatically switch between a manual
overclock for heavy multithreaded workloads and Precision Boost
Overdrive for single-threaded tasks. The latest Overclocking Load Guard
has an enhanced instantaneous current protection mechanism to prevent
users from experiencing system crashes during overclocking.
Core FLEX
Core Flex empowers you to smash limits farther than ever before
by letting you control clock, power, and thermals in creative new ways.
Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair X870E
Hero BTF features a built-in clock generator that isolates the CPU base
clock from memory, PCIe, and the Infinity Fabric speed.
PBO Enhancements
AMD Precision Boost Overdrive (PBO) pushes the CPU current and
voltage budget to opportunistically increase performance.
Incredible Memory
Performance
DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely
analyses individual memory modules to optimise performance and pinpoint
potential issues, whereas DIMM Fit Pro is an advanced option that
provides more extensive customisability for memory optimisation.
AEMP
AEMP automatically detects the memory chips on your kit and
then presents optimised frequency, timing and voltage profiles that you
can effortlessly apply to unleash performance.
A Robust Power Solution
18+2+2 Power
Stages
The VRM
features 18+2+2 power stages, each rated to handle up to 110 amps
8 + 8-pin ProCool II Power Connectors
Dual ProCool connectors ensure a snug and reliable connection
to the EPS 12V power lines.
10K Black Metallic Capacitors
Input and output filtering is provided by solid-polymer
capacitors rated for high operating temperatures.
MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability
alloy-core choke rated to handle 45 amps.
An Impeccable Thermal
Solution
VRM & Aluminium
I/O Heatsink
A VRM
heatsink on the MOSFETs and chokes is connected to the aluminum I/O
cover via an embedded heatpipe to increase mass and surface area for
dissipation.
M.2 Heatsinks & Backplates
Large aluminum heatsinks provide extensive surface area to cool
mounted M.2 drives, and each of the three onboard PCIe 5.0 M.2 slots has
a dedicated backplate for additional heat dissipation.
Chipset Heatsink
A dedicated heatsink draws heat away from the chipset to
maintain optimum operating temperature.
High-Condusctivity Thermal Pads
Each thermal pad improves overall heat transfer from the system
by bridging the heat generated by the power stages to the heatsink.
Connectivity Bolstered by
The Latest Gen Tech
PCIe 5.0 Expansion
Slot
The first
x16 expansion slot has the PCIe 5.0 treatment to offer incredible speeds
up to 64 GB/s for compatible devices, with full support for next-gen
graphics cards. To bear the brunt of massive graphics cards, it is also
protected with SafeSlot retention bracket and can be released easily
thanks to the PCIe Slot Q-Release Slim.
Five Onboard M.2 Slots
The ROG Crosshair X870E Hero BTF features five onboard M.2
slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s
speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0
interfaces.
WiFi 7
The revolutionary WiFi 7 is up to 4.8X times faster than
standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz
band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi
connection and lower latency, unlocking the realms of the unknown in
gaming, streaming and industrial IoT.

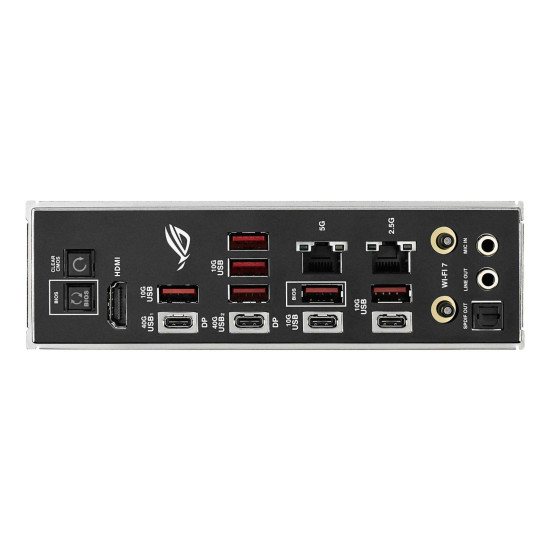

2.5 & 5 Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution
video streaming are among the many perks of onboard Intel and Realtek
ethernet.
Two USB4 Type-C Ports
Each USB4® port delivers up to 40 Gbps of bidirectional
bandwidth for the latest super-speed devices and drives. External
display support reaches up to 8K output if one of the ports is in use,
or both can be employed for dual 4K displays.
Two USB 20Gbps Type-C Front Panel Connectors
The ROG Crosshair X870E Hero BTF comes loaded with two USB
20Gbps Type-C® connectors for speedy data transfers up to 20Gbps.
UEFI BIOS
The renowned ROG UEFI
(BIOS) provides everything you need to configure, tweak, and tune your
rig. It offers intelligently simplified options for newcomers to PC DIY,
as well as more comprehensive features for seasoned veterans.
BIOS Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard.
Its intuitive visual representation of hardware connections and
corresponding BIOS settings takes the complexity out of setting up your
system. Upgrade now, and discover the power of BIOS Q-Dashboard to
easily and efficiently enhance your computing setup.
Advanced Mode
When youre ready for a deeper dive, delve into the UEFIs
Advanced mode and take complete control. Advanced mode enables full
control over every aspect of the motherboard, and a built-in search
function helps you quickly find the setting you need.
