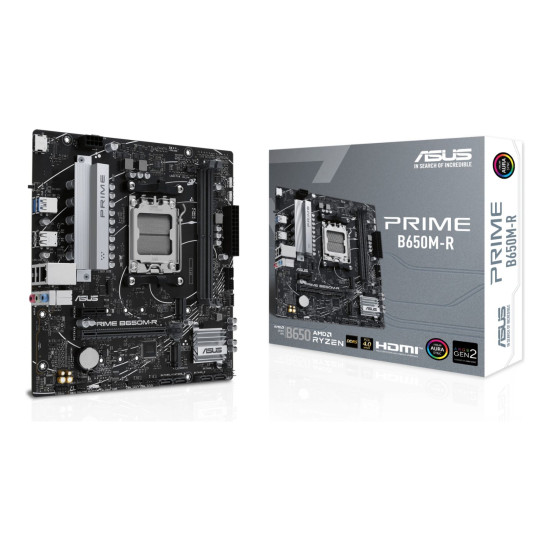

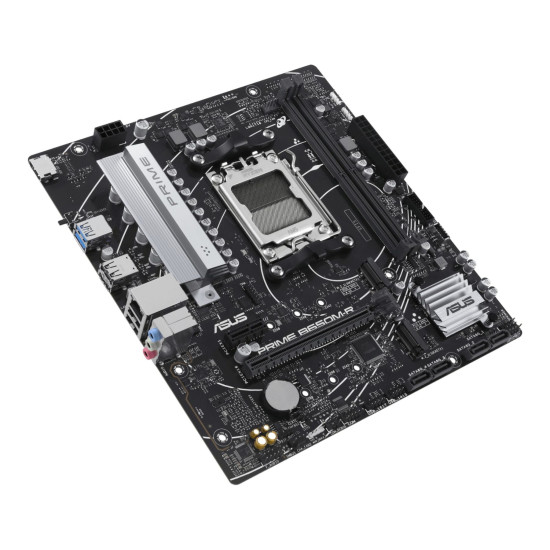

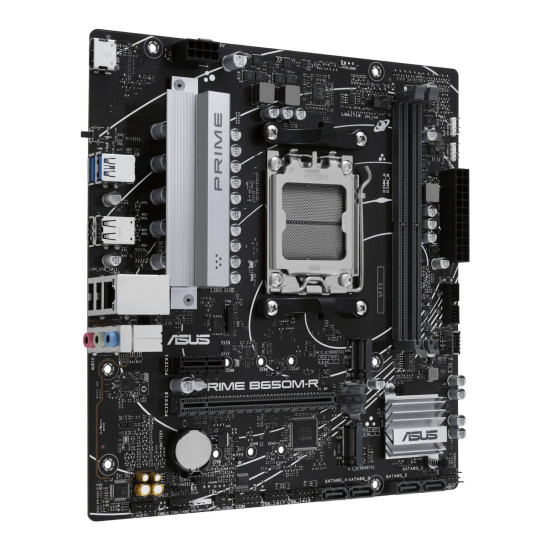

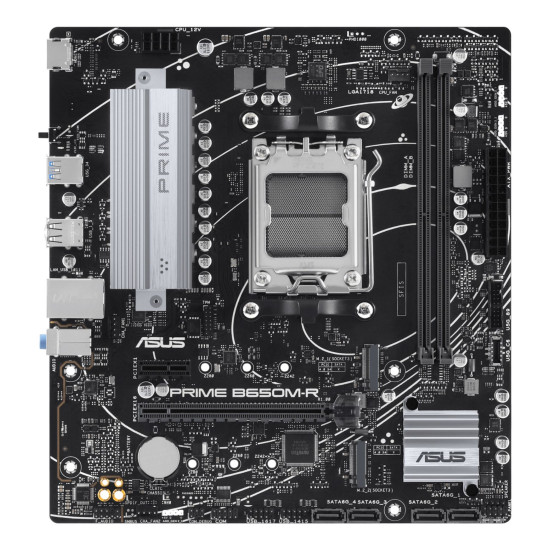

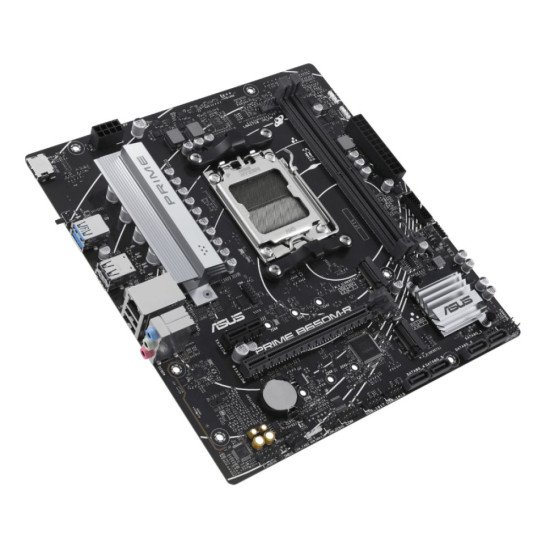

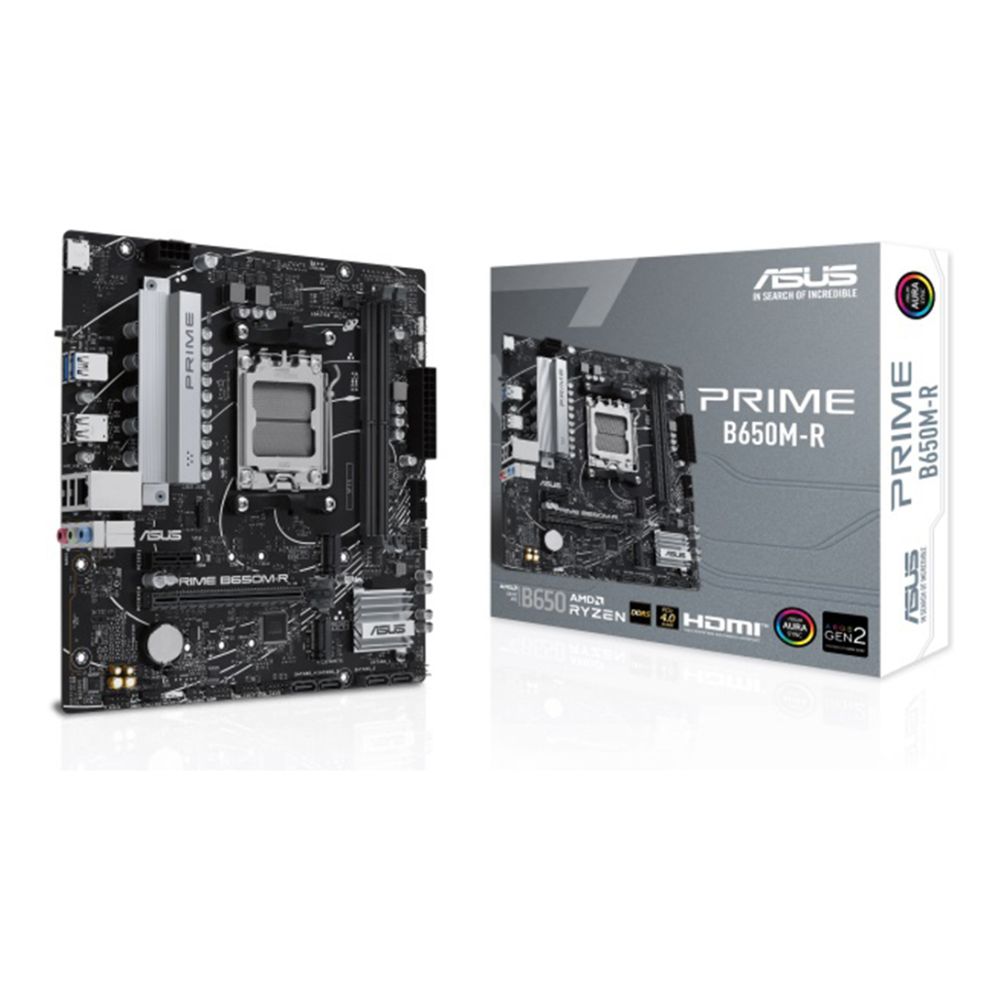

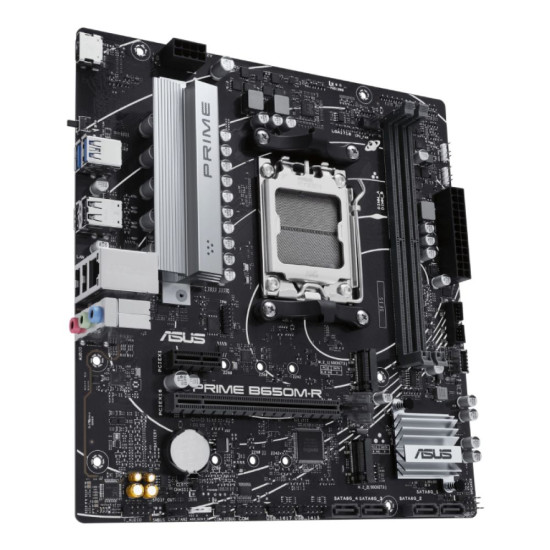

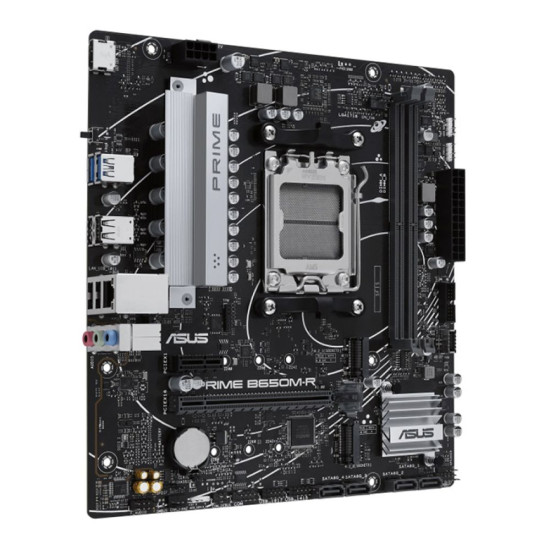

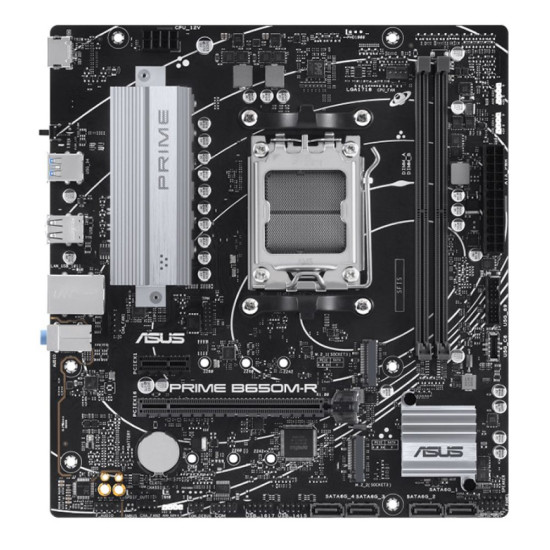

ASUS Prime series
motherboards are expertly engineered to unleash the full potential of
AMD Ryzen 7000-series processors. Boasting a robust power design,
comprehensive cooling solutions and intelligent tuning options, PRIME
B650M-R provides users and PC DIY builders with a range of performance
optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME
series. The PRIME B650 motherboard packs flexible tools to tune every
aspect of your system, enabling performance tweaks to perfectly match
the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and
voltage budget to opportunistically increase performance. By
aggressively tuning the PBO parameters, AMDs algorithm can leverage the
motherboards robust power solution to ramp up performance even higher.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily
optimize power consumption and maximize energy savings. You can enable a
CPU power limit, darken Aura lighting, and set the fan profile to a
power saving mode. You can also toggle the Power Saver plan that is
built into Microsoft Windows.
Flexible Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over
fans. An Auto-Tuning mode intelligently configures all parameters with a
single click. Theres also an Extreme Quiet mode that reduces chassis
fan speeds to below the default minimum to keep your system
whisper-quiet when performing light tasks. Fans can also be controlled
via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time
control over voltage droop, automatically switching frequency and
power-efficiency settings. It also allows you to fine-tune your CPU for
ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to
configure, tweak and tune your system. It offers intelligently
simplified options for PC DIY beginners, as well as comprehensive
features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take
complete control. A built-in search feature makes it easy to find
options, and various advanced functions let you intelligently make
nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers
guided wizards, drag-and-drop functionality, and one-click application
of important settings all to help you get your rig up and running in
no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve
with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard
LED, for a subdued aesthetic touch.
COOLING
Prime B650 series are engineered with multiple onboard
heatsinks and an array of hybrid fan headers to ensure your rig stays
cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the
MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime B650 series feature comprehensive cooling controls that
are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Stack Cool 3+
2oz copper PCB design can draw heat away from critical
components to keep the optimal operating temperatures.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts
and bandwidth demands of AMD processors. ASUS B650 motherboard provides
all the fundamentals to boost daily productivity, so your system will be
ready for action with stable power, intuitive cooling and flexible data
transfer options.
Memory
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of
PRIME motherboards. With the PRIME B650M-R, you can extract all of the
potential out of your DDR5 modules, whether they're from an
extreme-speed kit or an entry-level set that would otherwise be locked.
For entry-level modules without EXPO memory support, weve got you
covered. Click here to learn more about AEMP. arrow.
For those who want to fly past stock DDR5 speeds, the PRIME B650M-R is
primed and ready for enthusiast-grade kits courtesy of vast AMD Extended
Profiles for Overclocking (EXPO) support. Seasoned veterans can further
tweak performance via the extensive array of settings in the UEFI.
Storage
PCIe 4.0 M.2 Support
PRIME B650M-R offers two M.2 slots that supports data-transfer
speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app
load times with OS or application drives.
*Actual transmission speeds will be lower than the theoretical maximum
speed.
Connectivity
PCIe 4.0 Slot
Prime B650 motherboards offer PCIe 4.0 Slot connectivity for
the latest GPUs. The wide bandwidth and superfast transmission speeds
allow you to create feature-rich builds that can handle high loads
effortlessly.
Front USB Type-C
A full complement of USB ports support high-end rigs loaded
with peripherals, including a front-panel USB 5Gbps Type-C connector
that provides data transfer speeds of up to 5Gbps.
Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers
exceptionally high TCP and UDP throughput for faster, smoother data
transfers.
LANGuard
ASUS LANGuard is a hardware-level network protection feature
that integrates advanced signal-coupling technology and premium anti-EMI
surface-mounted capacitors to improve throughput and ensure a more
reliable connection.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality
unlike anything youve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and
greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels
deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional
clarity and fidelity.
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic.
ASUS Aura offers full RGB lighting control with a variety of functional
presets for the built-in RGB LEDs as well as strips and devices
connected to the onboard RGB headers and it can all be synced with an
ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 Headers
Two addressable Gen 2 headers are capable of detecting the
number of LEDs on second-gen addressable RGB devices, allowing the
software to automatically tailor lighting effects to specific devices.
The new headers also offer backward-compatibility with existing Aura RGB
gear.
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to
reduce background noise from the microphone and incoming audio, while
preserving vocals at the same time. This removes distracting keyboard
clatter, mouse clicks and other ambient noises so you can hear and be
heard with crystal clarity while gaming or in calls.
Armoury Crate
Within a single intuitive interface, Armoury Crate offers
easily customized Aura Sync RGB settings for every compatible device in
your arsenal , plus controls for an ever-growing family of ASUS
products, including keyboard and mouse preferences. Armoury Crate also
integrates product registration and a news feed so that you never miss
updates of interest to the ASUS community.
Q-LED Core
The Q-LED Core display produces light patterns by power LED
during the Power-On Self-Test (POST) that can help users troubleshoot
potential issues.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen 7000 Series processor and
PRIME B650M-R to experience advanced performance. With up to 16 Zen 4
cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the
AMD Ryzen 7000 Series keeps you ahead of the game.1
Youll also gain access to new features for gamers with AMD Socket AM5,
from the speed of DDR5 memory to the increased bandwidth of PCIe 5.0.
AMD Ryzen 7000 Series processors and AMD socket AM5 motherboards are
unlocked for overclocking to personalize your experience. Gain even more
performance when you overclock your DDR5 memory with AMD EXPO
technology.2
