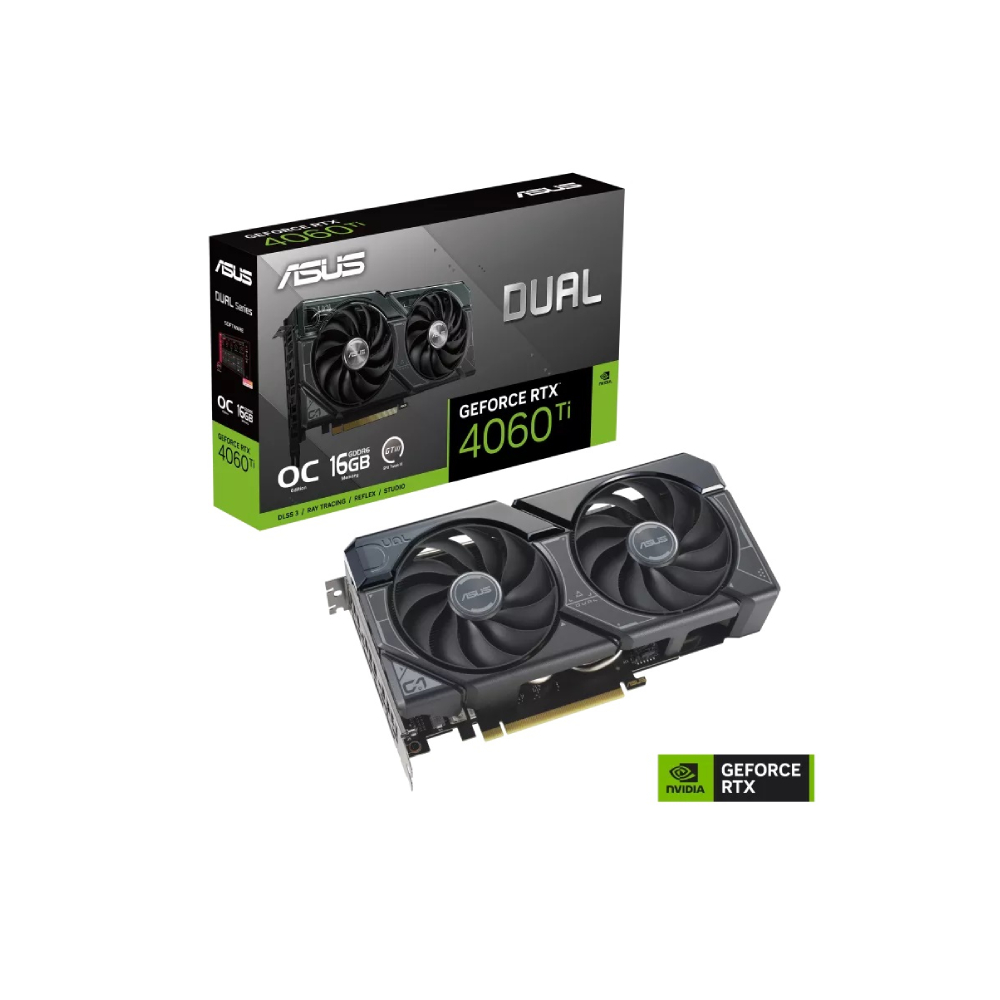

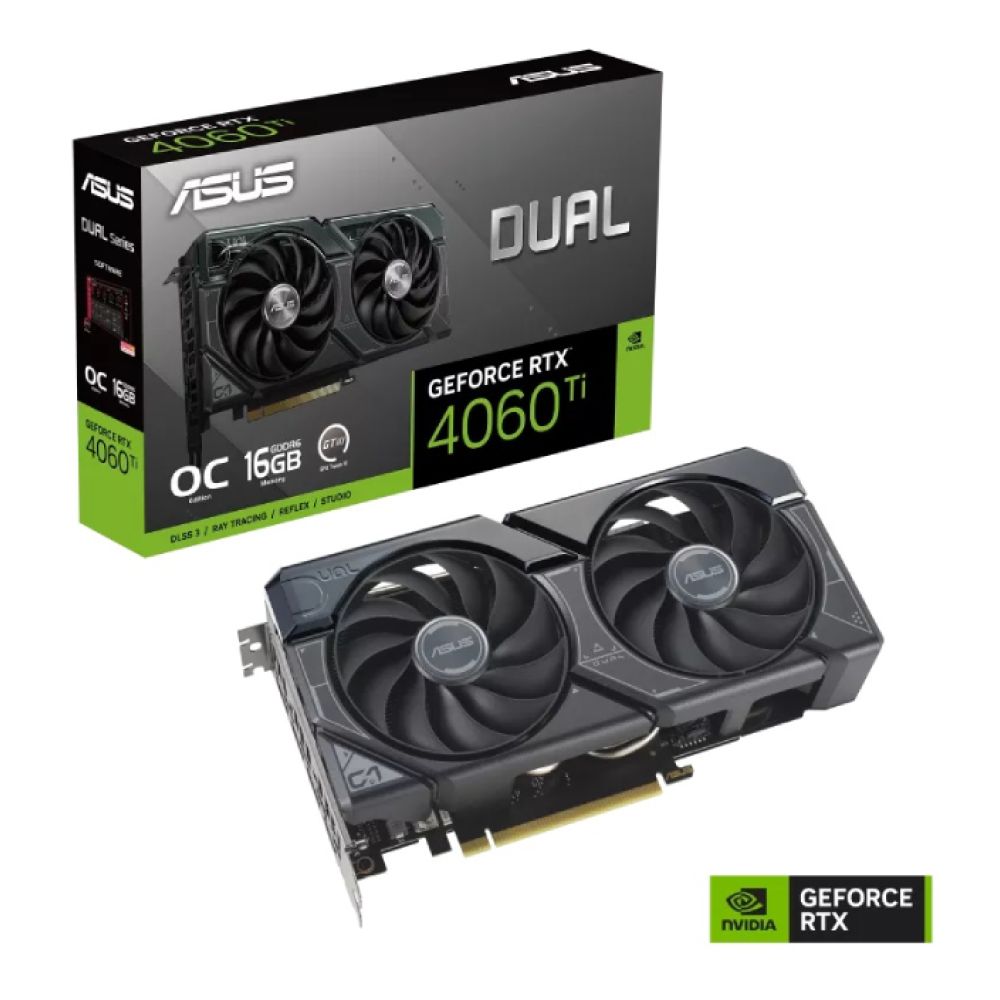

ASUS GeForce RTX 4060 Ti DUAL OC 16GB Ada Lovelace Graphics Card

SKU
90YV0JH0-M0NA00

Highlights

  • 16 GB GDDR6 Memory
  • Default mode : 2595 MHz (Boost) -- 2625 MHz OC mode
  • NVIDIA GeForce RTX 4060 Ti Graphics
  • 7680 x 4320 Max. Resolution
  • 3 x DisplayPort 1.4a, 1 x HDMI 2.1a
  • Speed: 18000 MHz
  • DUAL-RTX4060TI-O16G
  • Black Colour
  • 3 Years Warranty
  • 90YV0JH0-M0NA00
  • Claim a Free Game with ASUS
More Info Add to Wishlist
£460.00 inc. VAT.
In stock | *Free Next Working Day Delivery

Finance

Pay in 3 interest-free payment of £153.33
box.co.uk

Order by 3pm
for Free Next Day
Delivery*

Easy
Returns

Pay over 3 Months
with 0% Interest*

Product Description


ASUS GeForce RTX 4060 Ti DUAL OC 16GB Ada Lovelace Graphics Card

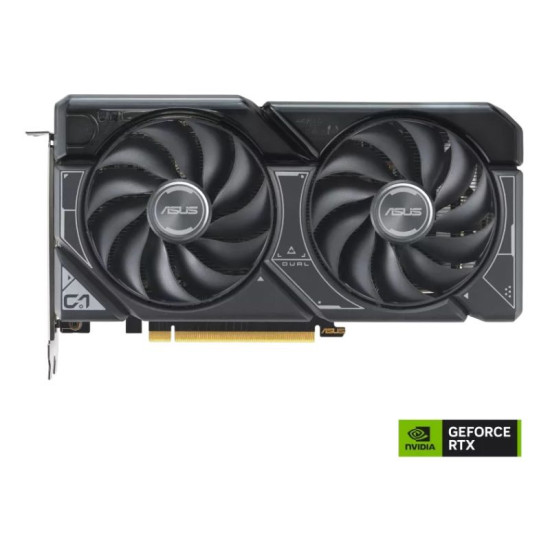

Axial-tech Fan Design


Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology

To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

Dual Ball Fan Bearings

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Dual BIOS

Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.




2.5-slot Design

A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the cards size.

Auto-Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

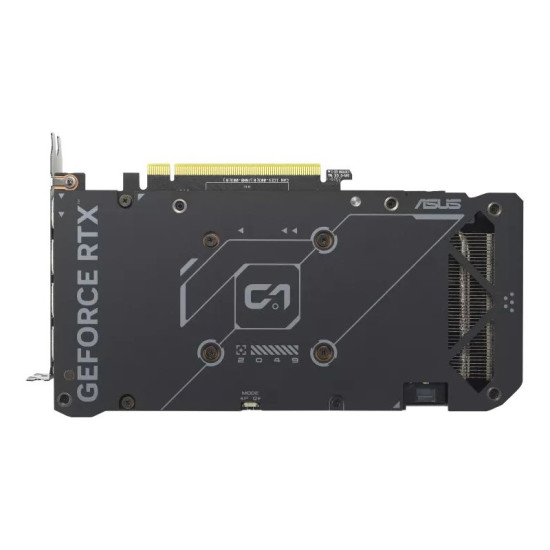

Protective Backplate

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

Stainless Steel Bracket

The mounting bracket of the Dual has been beefed up with 304 Stainless Steel thats harder and more resistant to corrosion.

GPU TWEAK III


The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.


Note: The content above is generic for the series.
For Correct info about this particular model, please refer to Specifications section.


Technical Specifications
Condition
Condition New
Product Identifiers
MPN 90YV0JH0-M0NA00
EAN 4711387275290
Type Graphics Card
Brand ASUS
Model DUAL-RTX4060TI-O16G
Display
Max. Resolution 7680 x 4320
Cores & Clocks
CUDA Core 4352
Engine Clock Default mode : 2595 MHz (Boost) -- 2625 MHz
Boost Chip Clock 2625 MHz
Memory (RAM)
Memory Type GDDR6
Memory Size 16 GB
Memory Speed 18000 MHz
Memory Interface 128 Bit
Ports & Interfaces
Connectivity 3 x DisplayPort 1.4a, 1 x HDMI 2.1a
Interface Type PCIe 4.0
Compatible Port/Slot PCI Express 4.0
Features
AMD FreeSync No
NVIDIA G-SYNC Yes
Power Supply Compatibility
Power Connector 1 x 8-pin PCIe
Key Specifications
Chipset/GPU Manufacturer NVIDIA
Graphic Engine NVIDIA GeForce RTX 4060 Ti
Cooler type 2 Fan
Other Specifications
Warranty 3 Years
Colour Black
Dimensions 227.2 x 123.24 x 49.6 mm
