All-Around Energy
Efficiency
The Power
Saving function contains several settings can easily optimize power
consumption and maximize energy savings. You can enable a CPU power
limit, darken Aura lighting, and set the fan profile to a power saving
mode. You can also toggle the Power Saver plan that is built into
Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over
fans and all-in-one (AiO) coolers. Whether cooling with air or water, an
Auto-Tuning mode intelligently configures all parameters with a single
click. Theres also an Extreme Quiet mode that reduces chassis fan
speeds to below the default minimum to keep your system whisper-quiet
when performing light tasks. Fans, AiO coolers can also be controlled
via the UEFI BIOS.
Precise Digital Power Control
The Digoltage-regulator module (VRM) delivers real-time control
over voltage droop, automatically switching frequency and
power-efficiency settings. It also allows you to fine-tune your CPU for
ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to
configure, tweak and tune your system. It offers intelligently
simplified options for PC DIY beginners, as well as comprehensive
features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take
complete control. A built-in search feature makes it easy to find
options, and various advanced functions let you intelligently make
nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers
guided wizards, drag-and-drop functionality, and one-click application
of important settings all to help you get your rig up and running in
no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve
with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard
LED, for a subdued aesthetic touch.
COOLING
ASUS B650E series are engineered with multiple onboard
heatsinks and an array of hybrid fan headers to ensure your rig stays
cool and stable under intense workloads.
M.2 Heatsink
The M.2 heatsink is flexible, which can take care of the M.2_1
or M.2_2 slot, warding off throttling that can occur with M.2 storage
during sustained transfers. The heatsink is held in place by captive
screws.
VRM Heatsinks and Thermal Pads
VRM heatsinks and thermal pads improve heat transfer from the
MOSFETs and chokes for better cooling performance.
Cooler by Design
ASUS B650E series feature comprehensive cooling controls that
are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors.
Fan Xpert 2+ allows you to map the temperature of supported ASUS
graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling
setups.
Smart Protection
A dedicated integrated circuit protects each fan header from
overheating and overcurrent.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The ASUS B650E series is built to handle the high core counts
and bandwidth demands of AMD processors. ASUS B650 motherboard provides
all the fundamentals to boost daily productivity, so your system will be
ready for action with stable power, intuitive cooling and flexible data
transfer options.
Robust Power Design
Stable power is essential to extract every last bit of

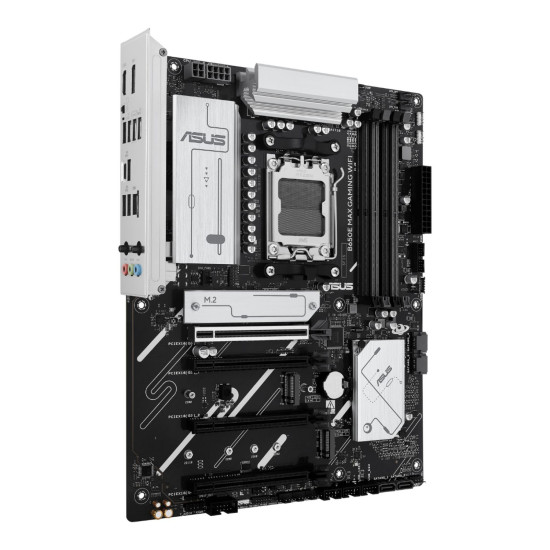

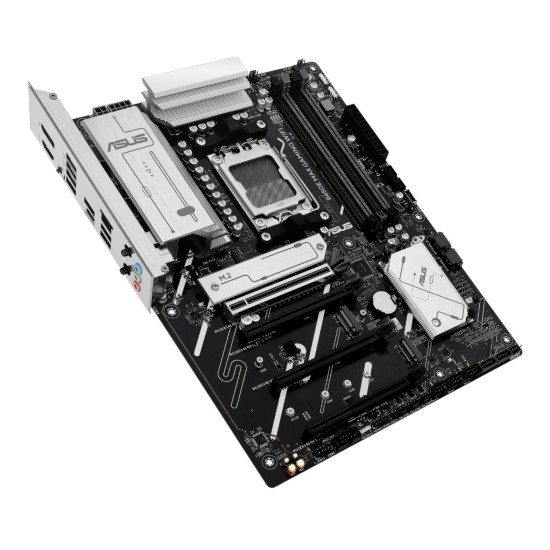

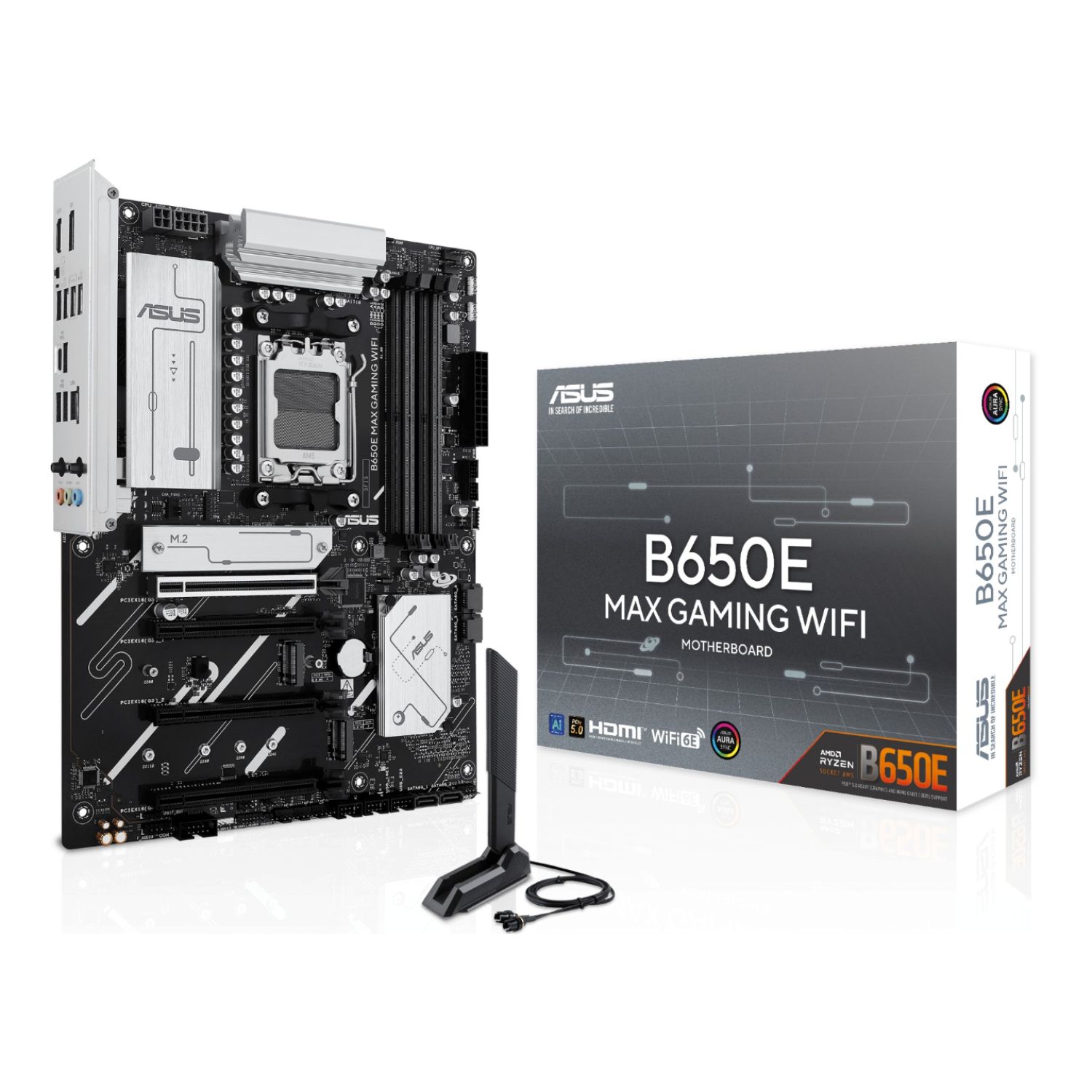

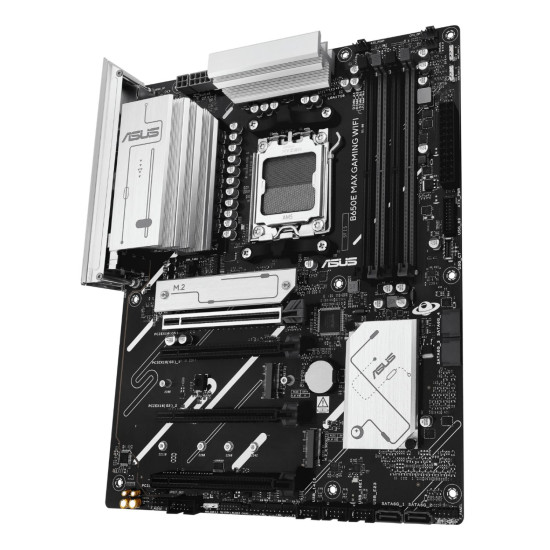

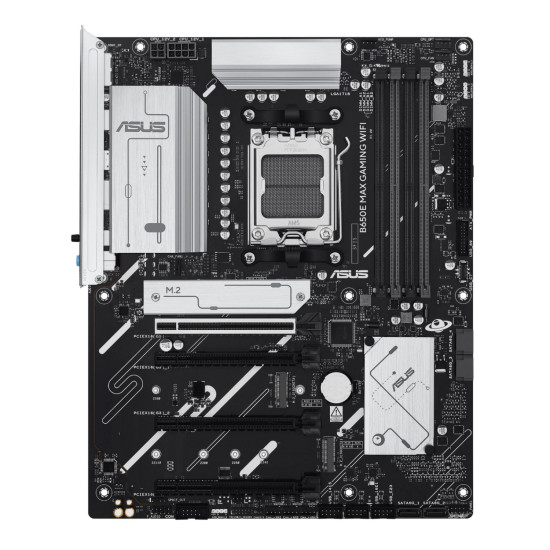

performance out of AMD processors. The B650E MAX GAMING WIFI is geared
to cater to the demands of these high-core-count CPUs.
Digital Power Design
B650E MAX GAMING WIFI features an 8+2+1 phase power design with
discrete MOSFETs, ensuring efficient and stable power delivery for AMD
processors plus steady performance for day-to-day use.
Six-Layer PCB Design
Multiple PCB layers optimize heat management for critical
components, providing more headroom to push CPUs beyond stock speeds.
Memory
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of
B650E motherboards. With the B650E MAX GAMING WIFI, you can extract all
of the potential out of your DDR5 modules, whether they're from an
extreme-speed kit or an entry-level set that would otherwise be locked.
For entry-level modules without EXPO™ memory support, weve got you
covered. Click here to learn more about AEMP. arrow.
For those who want to fly past stock DDR5 speeds, the B650E MAX GAMING
WIFI is primed and ready for enthusiast-grade kits courtesy of vast AMD
Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans
can further tweak performance via the extensive array of settings in the
UEFI.
ASUS OptiMem II
Revisions to the motherboards trace routing provide the latest
processors with unrestricted access to memory bandwidth. ASUS OptiMem II
technology carefully maps memory signal pathways across different PCB
layers to reduce vias and adds shielding zones that significantly reduce
crosstalk.
Benefits of ASUS OptiMem II:
Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin
Motherboards with OptiMem II technology were tested with Synopsys HSPICE
simulation software
Storage
PCIe 5.0 M.2 Support
B650E MAX GAMING WIFI offers a total of three M.2 slots, the
first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0,
enabling quicker boot-up and app load times with OS or application
drives.
* Actual transmission speeds will be lower than the theoretical maximum
speed.
Connectivity
PCIe 5.0 Slot
B650E MAX GMING WIFI series motherboards offer PCIe 5.0 Slot
connectivity for the latest GPUs. The wide bandwidth and superfast
transmission speeds allow you to create feature-rich builds that can
handle high loads effortlessly.

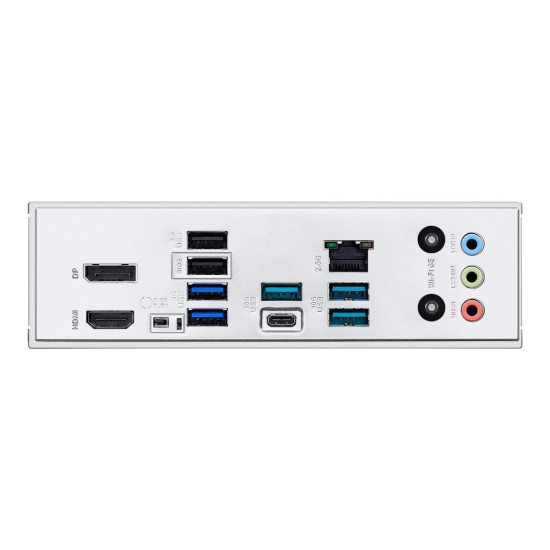

USB 10Gbps Type-C®
A batch of USB ports support high-end rigs loaded with
peripherals, including a rear USB Type-C® connector with ultrafast USB
10Gbps for transmission speeds of up to 10Gbps.
USB4® Support
B650E MAX GAMING WIFI motherboard features USB4® support via a
Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ASUS
motherboards can enable bi-directional speeds of up to 40 Gbps on a
single cable, while providing power to fast-charge device. Additionally,
this card has a daisy-chain function for multi-screen connection and
supports up to dual displays with 4K resolution.
*ASUS add-on card is sold separately.

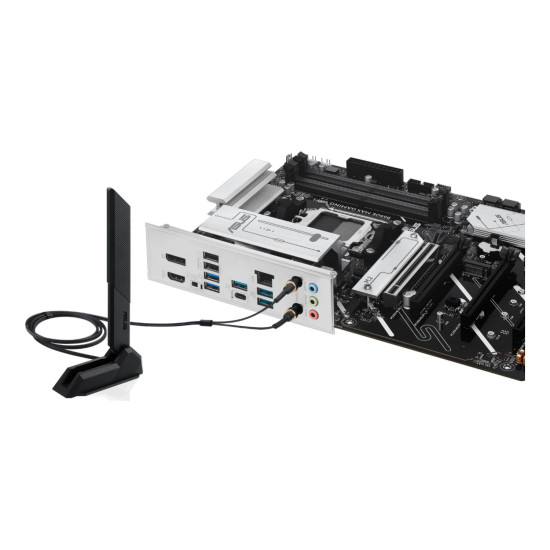

WiFi 6E
Built-in WiFi 6E technology takes advantage of the newly
available radio spectrum in the 6 GHz band. With triple the bandwidth of
the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking
speeds with improved capacity and better performance in dense wireless
environments.
*WiFi 6E availability and features are dependent on regulatory
limitations and co-existence with 5 GHz WiFi.
Realtek 2.5Gb Ethernet
Realtek 2.5Gb Ethernet reduces CPU overhead and offers
exceptionally high TCP and UDP throughput for faster, smoother data
transfers.
LANGuard
ASUS LANGuard is a hardware-level network protection feature
that integrates advanced signal-coupling technology and premium anti-EMI
surface-mounted capacitors to improve throughput and ensure a more
reliable connection.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality
unlike anything youve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and
greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels
deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional
clarity and fidelity.
BY
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic.
ASUS Aura offers full RGB lighting control with a variety of functional
presets for the built-in RGB LEDs as well as strips and devices
connected to the onboard RGB headers and it can all be synced with an
ever-growing portfolio of Aura-capable hardware.
Addressable RGB Gen 2 Headers
Three addressable RGB Gen 2 headers are capable of detecting
the number of LEDs on second-gen addressable RGB devices, allowing the
software to automatically tailor lighting effects to specific devices.
The new headers also offer backward-compatibility with existing Aura RGB
gear.
Armoury Crate
Within a single intuitive interface, Armoury Crate offers
easily customized Aura Sync RGB settings for every compatible device in
your arsenal , plus controls for an ever-growing family of ASUS
products, including keyboard and mouse preferences. Armoury Crate also
integrates product registration and a news feed so that you never miss
updates of interest to the ASUS community.
Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS motherboards deliver. With
faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe®
5.0 support for both graphics and NVMe, you can play the most demanding
games and deliver your biggest projects with the revolutionary
performance of an ASUS motherboard and AMD Ryzen™ 9000, 8000, and 7000
Series processors.
