Ready Out-of-the-Box -
Easy Installation
The Liquid Freezer III
is ready for immediate use thanks to its pre-installed radiator fans
in push configuration. The fan cables are integrated into the jacket
of the hoses so that only one cable needs to be connected to the
motherboard. With the MX-6 thermal compound included in delivery, you
have everything you need for quick and easy installation.
Future-Proof
Compatibility
The Liquid Freezer III
is multi-compatible with Intel and AMD sockets. Intel will release the
new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC
customers don't need to worry that the new CPUs will also require new
coolers. We guarantee full compatibility. All Liquid Freezer III can
be used with the new LGA1851 socket from Intel without limitation.
Silent and Powerful VRM Fan
The voltage converters
of motherboards often work at their maximum temperature in combination
with power-hungry CPUs. To compensate the lack of airflow from a tower
cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm
PWM-controlled fan enables almost silent cooling of the socket area
when VRM cooling is insufficient, in cases with poor airflow or
especially in overclocking scenarios. This enables a continuously
higher load and a longer service life for the voltage converters.
Contact Frame for Intel
LGA1700 and LGA1851
Intel's Independent
Loading Mechanism (ILM) deforms the CPU by pressing it into the socket
at two points with over 40 kg. This causes pressure in the PCB, the
die and the solder layer between the die and IHS (Integrated Heat
Spreader). With high thermal load, this can lead to long-term
problems. The patent-pending mounting frame from ARCTIC does not
deform the CPU, reduces the mechanical load on the CPU massively, is
quick and easy to install and allows the cooler to be screwed onto the
CPU's backplate. As a result, mechanical stress on the mainboard and
CPU is minimised, cooling performance remains consistent and
installation is quick and uncomplicated.

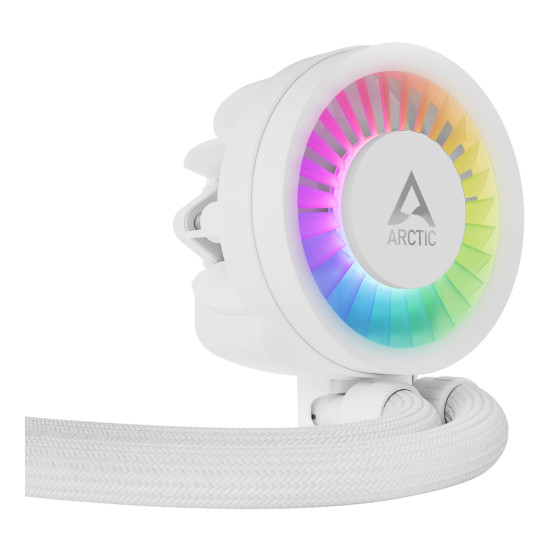

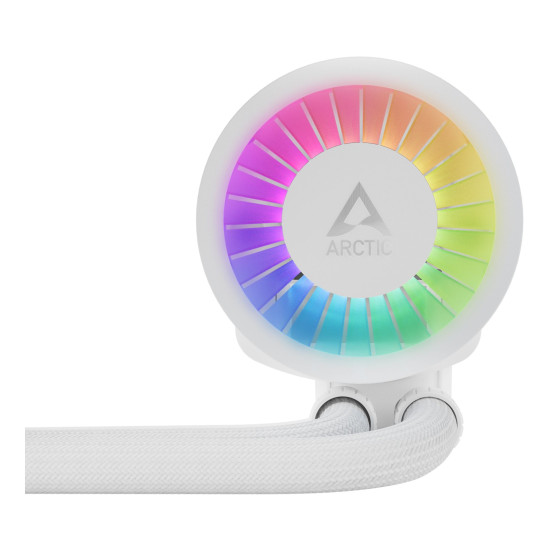

Optimised, In-House
Developed Water Pump
The Liquid Freezer III
is equipped with a specially developed PWM-controlled water pump,
which has been further optimised in terms of both performance and
noise. Thanks to the improved coldplate with an extended fin surface
and optimised water pipes, the Liquid Freezer III increases its
performance while maintaining quiet operation.
Complete Control or
Simple Control
Two connection cables -
two control options:<br><br>Separate regulation: By using the splitter
cable with three separate connections, the pump, VRM fan and radiator
fan can be controlled independently of each other. This allows, for
example, the speed of the VRM fan to be controlled independently of
the CPU and to be adjusted analogue to the temperature of the voltage
converters via PWM.<br><br>All-in-One: Like the Liquid Freezer II,
this allows the entire unit to be controlled via a single connection,
whereby the speed of the radiator fans is output. The pump, VRM and
radiator fans can therefore be easily controlled via a single PWM
setting.
Native AMD Offset
Mounting
For several generations,
AMD has been using a multi-die chiplet design for its Ryzen desktop
processors. Unlike Intel CPUs, the hotspot on these processors is not
located centrally under the IHS (Integrated Heat Spreader), but is
slightly offset. The AMD mounting solution therefore has a 5 mm offset
in order to achieve optimum heat dissipation.
Improved Radiator Design
The cooling surface of
the 38 mm thick radiator has been extended by 23 % by increasing the
fin stack. This not only enables improved heat dissipation, but also a
larger liquid volume. Consequently, the heat build-up in the water
cooling system is slowed down and power and temperature peaks can be
effectively managed over a longer period of time.
High Static Pressure
ARCTIC relies on the
well-proven P fans, which have already received several awards for
their outstanding performance. The P series is particularly suitable
for use on heat sinks and radiators with a high fin density. Thanks to
their high static pressure, they achieve significantly better results
compared to fans designed for high air circulation.
Limited Compatibility
with Few Motherboards
Some motherboards are
incompatible with the Liquid Freezer III due to oversized SSD coolers
in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for
affected motherboards.
Addressable LEDs for all
Requirements
ARCTIC uses standardised
3-pin cables instead of proprietary connectors. This not only ensures
compatibility with most lighting systems for motherboards, cases,
controllers and accessories, but also enables software-based control
with the most common control programmes. The daisy-chain function also
ensures that each LED can display an individual colour at any time,
offering countless combination options for every preference.
Wide Range of Variants
The Liquid Freezer III
offers outstanding cooling performance in four different sizes and
three variants. While the Black version is completely black, the A-RGB
versions are available in black or white and have digitally
addressable lighting for the pump head and radiator fans. With
radiator sizes of 240, 360, 280 and 420, the Liquid Freezer III offers
the ideal combination of performance, technology and design for
everyone!
Quality You Can Rely On
To ensure the longevity
of our products, we carry out long-term tests under different,
sometimes very adverse conditions. In this way, we learn how we can
permanently improve our products for our customers. In addition, the
excellent results of long-term testing give us the assurance that our
products are not only outstanding in terms of quality, but also in
terms of durability. This is a certainty that we are happy to pass on
to our customers, which is why we give a 6-year manufacturer's
guarantee.
