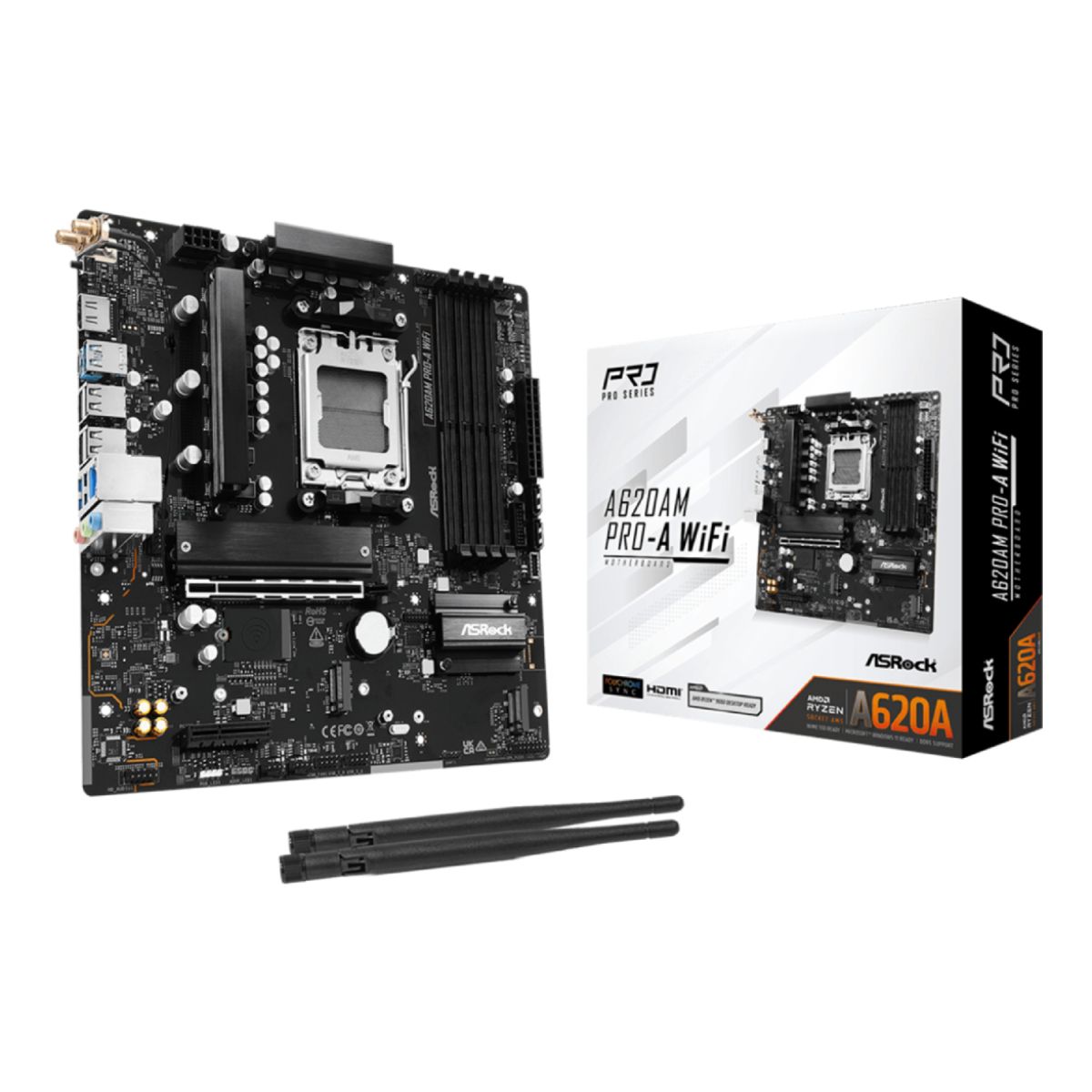

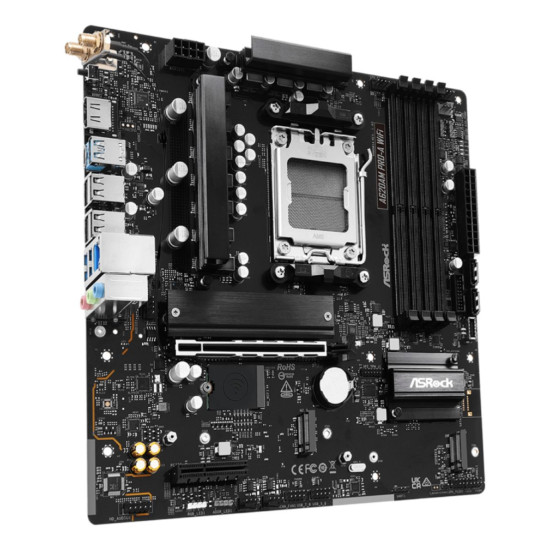

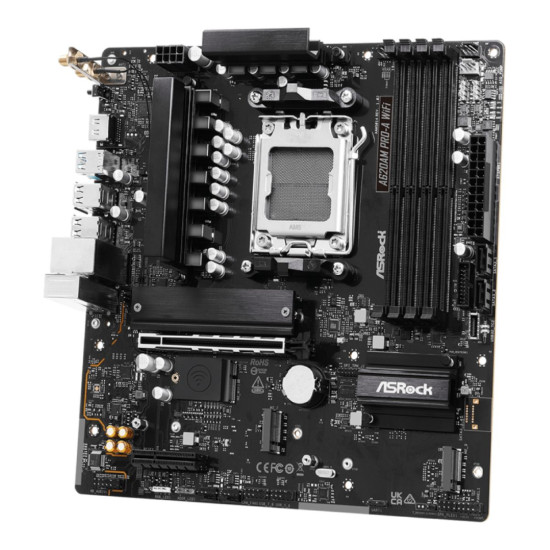

Asrock A620AM PRO-A WIFI AMD A620A DDR5 Micro-ATX Socket AM5 Motherboard

The ASRock A620AM Pro-A WiFi is a Micro-ATX motherboard built for AMDs latest AM5 processors, supporting Ryzen 7000, 8000, and even 9000 series CPUs. It uses the AMD A620A chipset and delivers a strong balance of performance and value, making it a reliable choice for gaming and productivity builds. Equipped with 4 DDR5 DIMM slots, it supports up to 256 GB of memory with EXPO/XMP profiles for speeds exceeding 8000 MT/s (OC). For storage, it provides two PCIe Gen4 M.2 slots, one PCIe Gen3 M.2, and two SATA3 ports, ensuring plenty of flexibility for fast NVMe SSDs or traditional drives. Expansion is handled by a PCIe 4.0 x16 slot for GPUs and a PCIe 3.0 x4 slot, while onboard HDMI 2.1 output supports up to 4K @ 120 Hz when paired with a compatible Ryzen APU.

Beyond raw specs, the board integrates modern connectivity, including Realtek 2.5 GbE LAN, WiFi 6E with Bluetooth 5.2, and a mix of USB 3.2 Gen1 Type-C and Type-A ports for peripherals. It also offers troubleshooting aids like Post Status LEDs and BIOS Flashback, plus RGB headers with ASRock Polychrome Sync for lighting customisation. With its 6-layer PCB, 6+2+1 phase power design, and compact Micro-ATX form factor, the A620AM Pro-A WiFi is designed to be stable, versatile, and efficient an ideal foundation for builders who want up-to-date AM5 performance without stepping up to premium-priced chipsets.

Main Features:

• Socket / CPU Support: AMD AM5, compatible with Ryzen 7000 / 8000 / 9000 series CPUs
• Chipset: AMD A620A
• Form Factor: Micro-ATX (24.4 cm 24.4 cm)
• Memory: 4 x DDR5 DIMM slots, up to 256 GB, 8000+ MT/s (OC), ECC & non-ECC support, EXPO/XMP profiles
• Graphics Output: HDMI 2.1, up to 4K @ 120 Hz with HDR & HDCP 2.3
• Expansion Slots: 1 PCIe 4.0 x16, 1 PCIe 3.0 x4
• Storage: 2 PCIe Gen4 M.2, 1 PCIe Gen3 M.2, 2 SATA3 ports

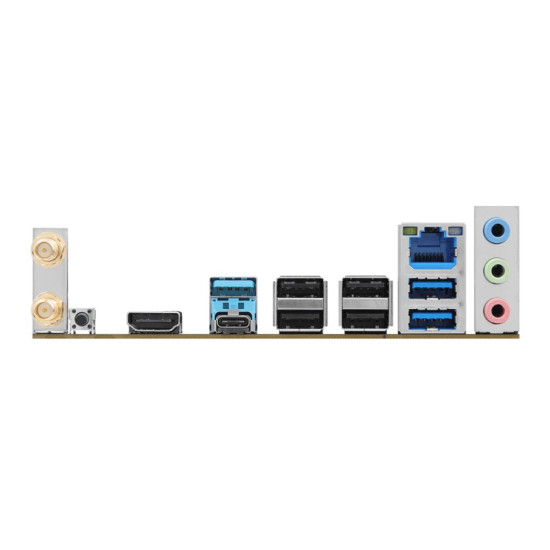

• Networking: Realtek 2.5 GbE LAN
• Wireless: WiFi 6E (dual band, 6 GHz support) & Bluetooth 5.2
• Audio: 7.1 channel HD audio with Realtek ALC897 codec
• USB Ports: USB 3.2 Gen1 Type-C, multiple USB 3.2 Gen1 Type-A & USB 2.0 ports
• Power Design: 6 + 2 + 1 phase VRM with Dr.MOS
• PCB: 6-layer design for stability & durability
• DIY Features: BIOS Flashback, Post Status LEDs, Auto Driver Installer
• RGB Support: Polychrome RGB with addressable & standard RGB headers
