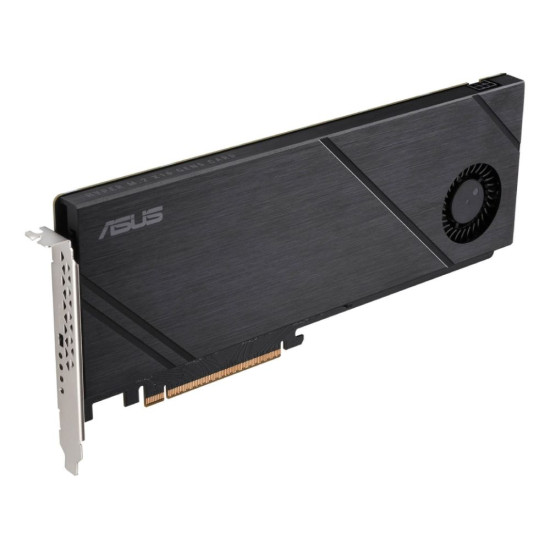

ASUS Hyper PCIe 5.0 x16 Gen5 4 x M.2 Interface Expansion Card

Support RAID Function

The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.

*M.2 SSD support dependent on CPU and motherboard design. Please check the specifications and user manual of your motherboard. Update to the latest BIOS and set up PCIe bifurcation settings before using the NVMe RAID function.

One Card, 8X The Bandwidth

The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card 8X the bandwidth of a single PCIe 4.0 drive.

Enhanced Cooling

The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.

Effective Thermal Solution

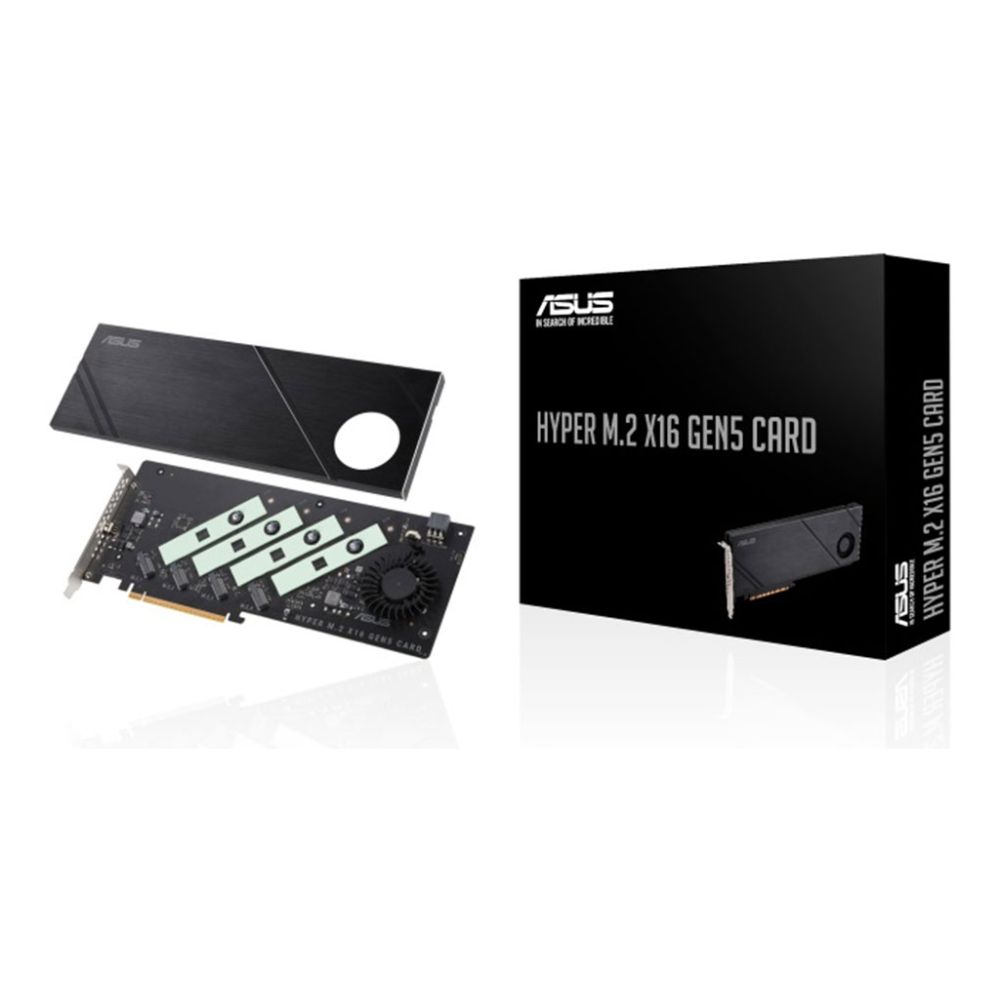

A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.

Fan Xpert 4 Support

The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.

Designed For Unthrottled Transfer Speeds

The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots supporting both PCIe 5.0 and 4.0 that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.
