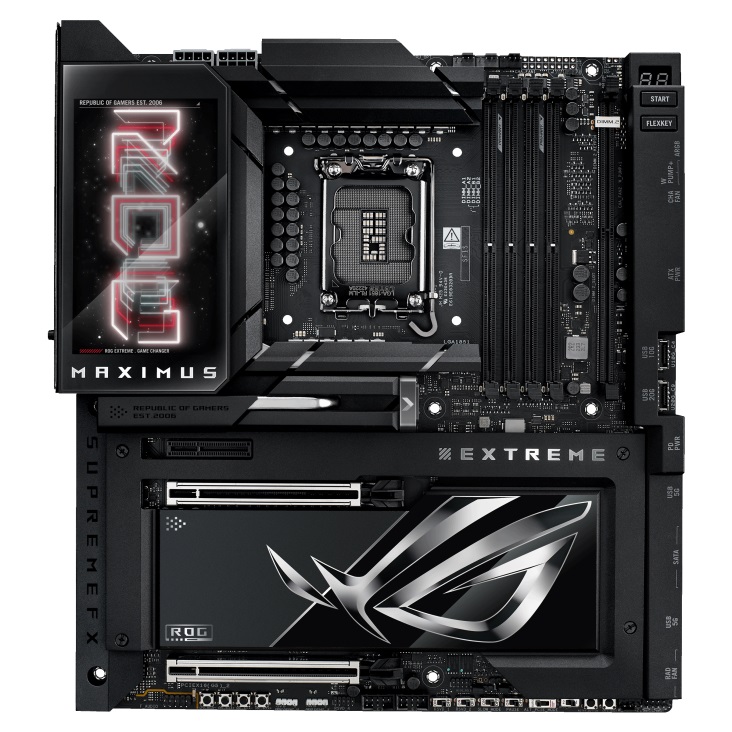

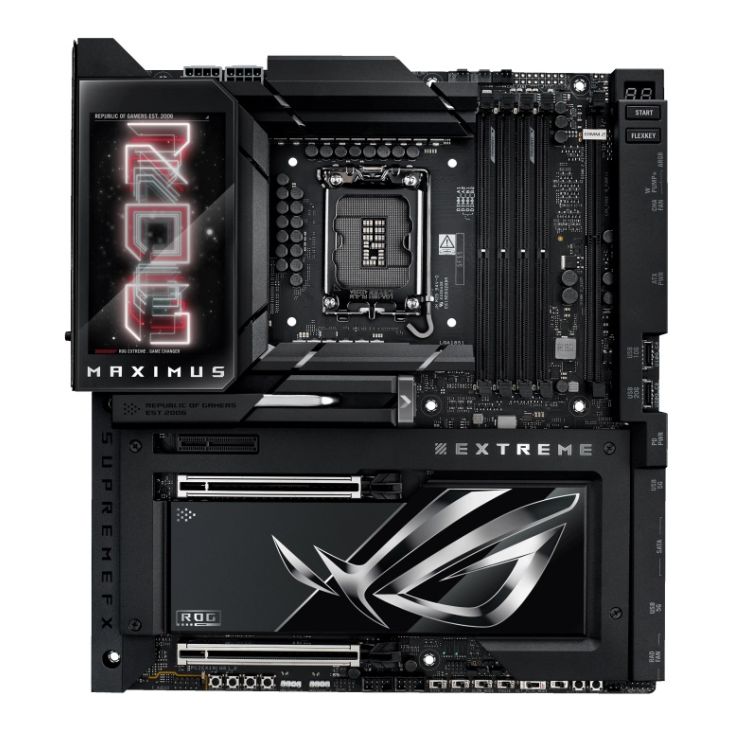

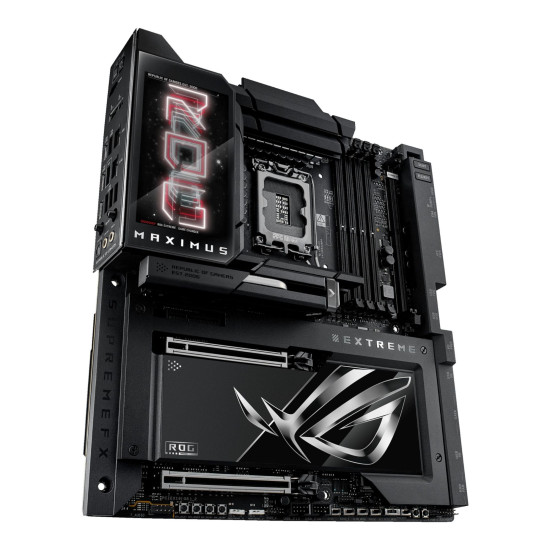

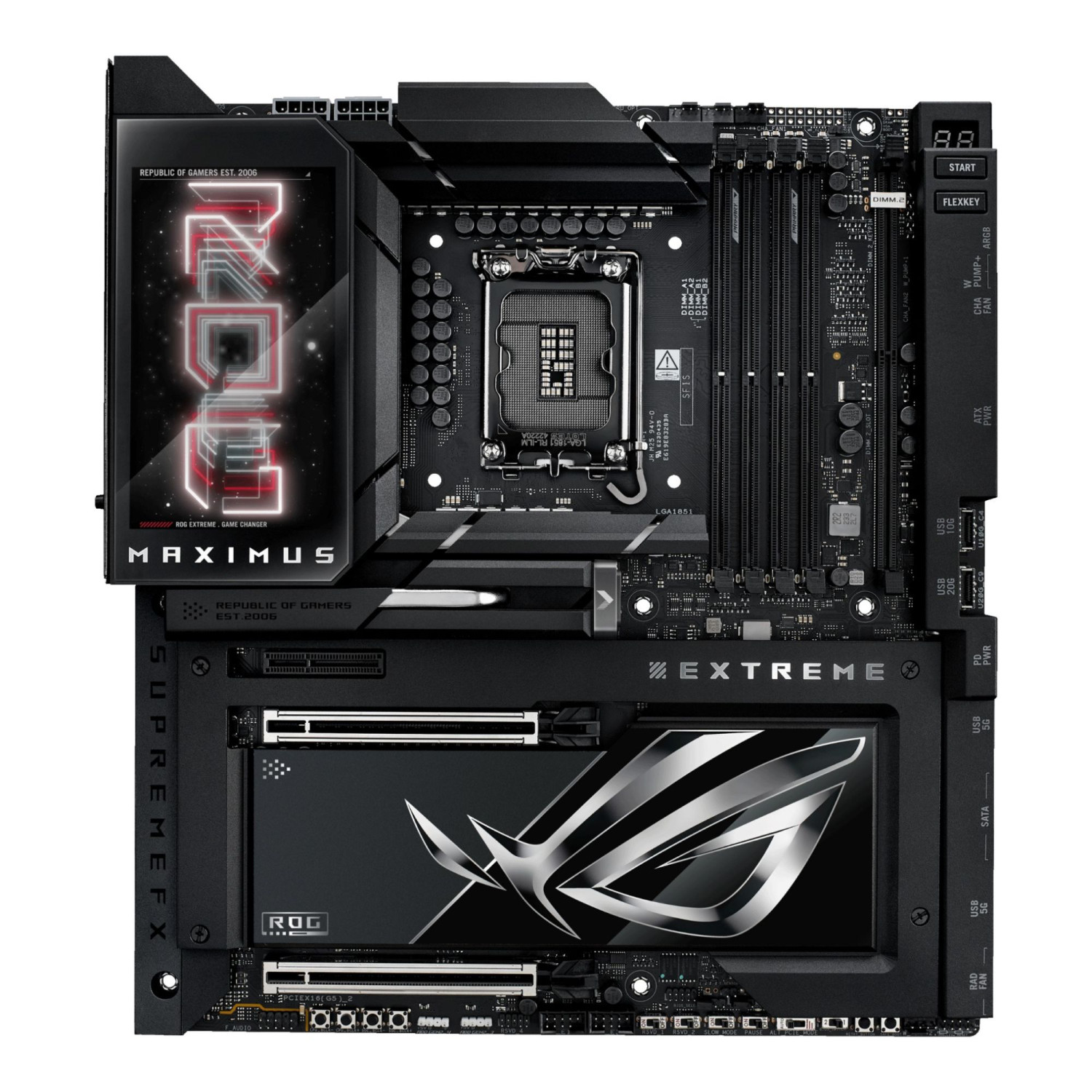

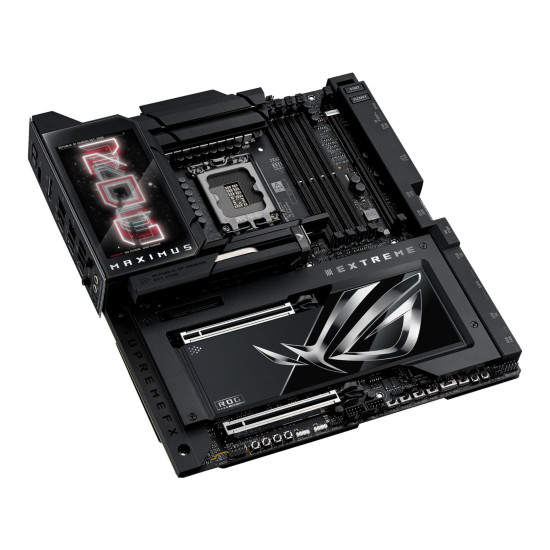

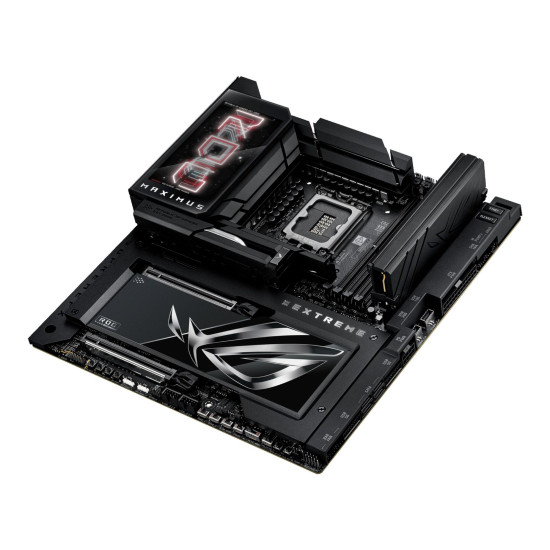

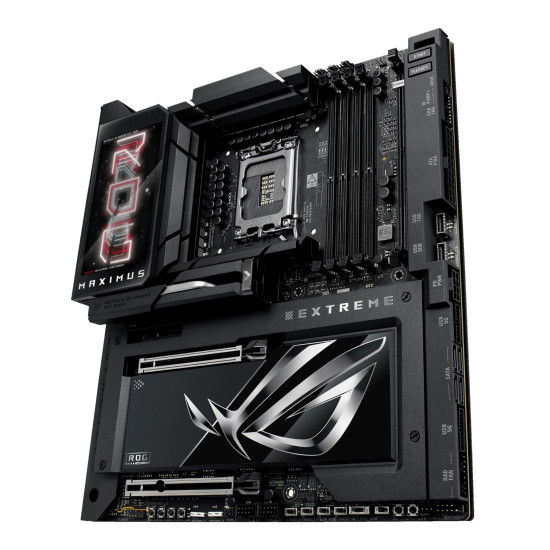

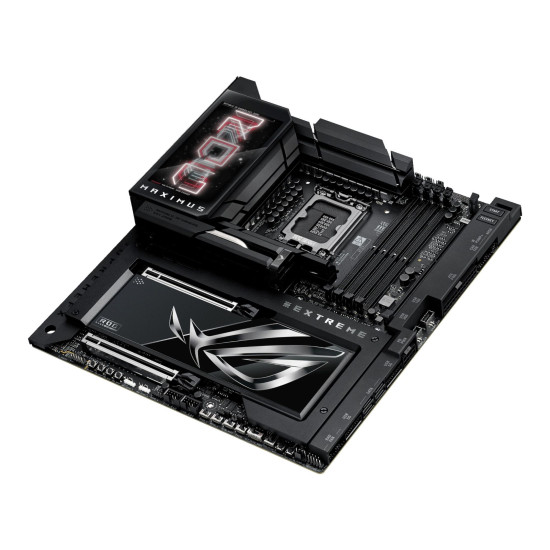

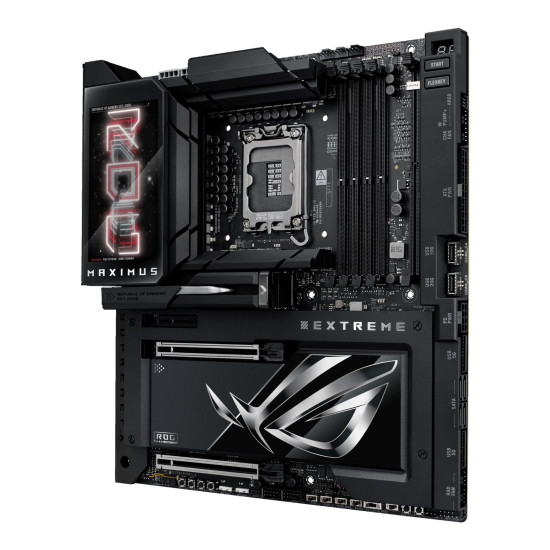

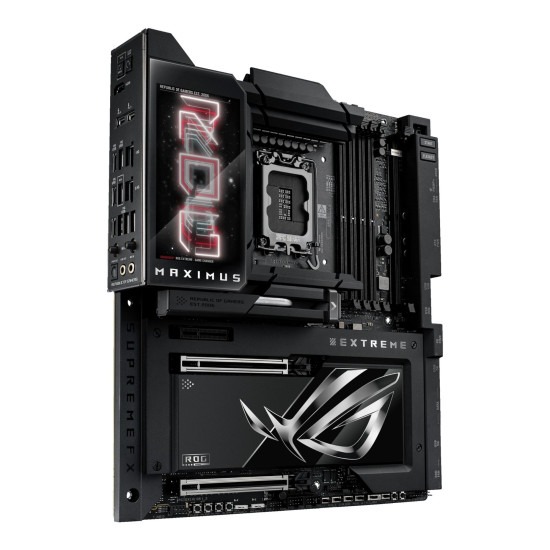

ASUS ROG Maximus Z890 EXTREME Intel LGA 1851 DDR5 ATX Wi-Fi 7 Motherboard

Intel® Z890 LGA 1851 E-ATX motherboard

Advanced AI PC-ready

24+2+1+2 power stages

NPU Boost, DDR5 slots with NitroPath DRAM Technology

DIMM Flex

AEMP III

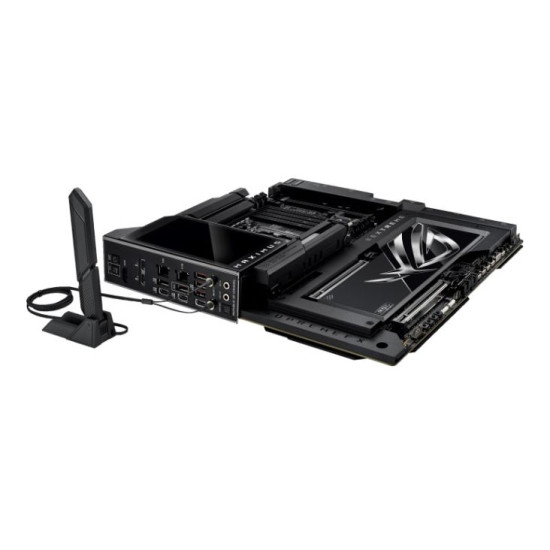

WiFi 7 with ASUS WiFi Q-Antenna

3D VC M.2 Heatsink

Three PCIe 5.0 M.2 slots and one PCIe 4.0 slot onboard with ROG M.2 PowerBoost

Two PCIe 4.0 M.2 slots on ROG Q-DIMM.2 card

Two PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim

Full support for next-gen graphics cards

PCIe Slot Q-Release Slim

Two Thunderbolt™ 5 ports

USB 20Gbps Type-C® front-panel connector

ASUS AI Advisor

AI Overclocking

AI Cooling II

AI Networking II

Full Colour 5 LCD Display

Overclocking

Memory

AEMP III - ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM FLEX - DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

8 + 8-pin ProCool II power connectors - Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

24+1+2+2 power stages - The VRM features 24+1+2+2 power stages, each rated to handle up to 110 amps



MicroFine alloy chokes- Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Cooling

VRM and aluminum I/O heatsink - A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

High-conductivity thermal pads- Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

3D VC M.2 Heatsink- The 3D vapor chamber M.2 heatsink offers a larger heat dissipation area, connected to extended heat pipes through a temperature equalization plate to form a vacuum chamber, significantly improving cooling for PCIe 5.0 M.2 SSDs.

Chipset heatsink- A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

M.2 heatsinks and backplates- Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four onboard M.2 slots have dedicated backplates for additional heat dissipation.

Thermal Management - Multiple temperature sources, 4-pin fan headers.

Cooler Compatibility- ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new Z890 motherboards, empowering you to build your dream gaming rig.

Leading Connectivity

EZ PC DIY

PCIE SLOT Q-Release - With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

M.2 Q-Release - The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

M.2 Q-Slide - This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.

New M.2 Q-Latch - The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.

Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.







Clear CMOS & BIOS Flashback - The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

BIOS Q-Dashboard - Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
