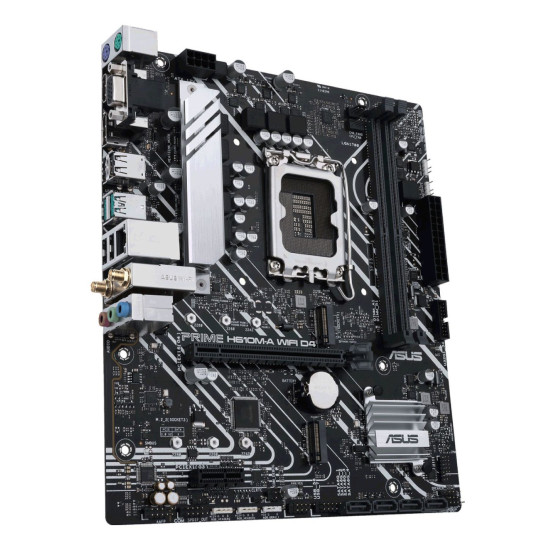

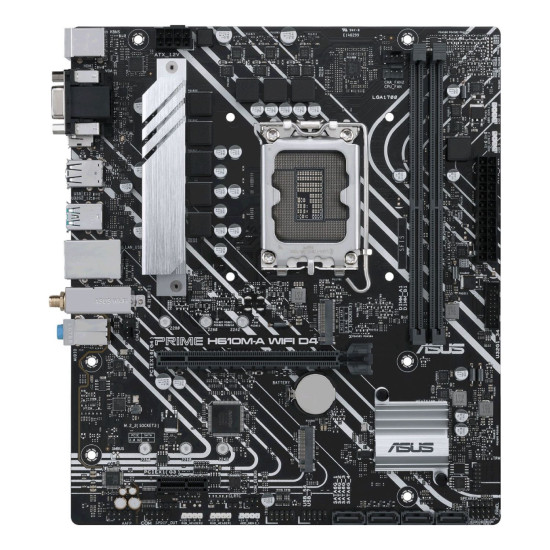

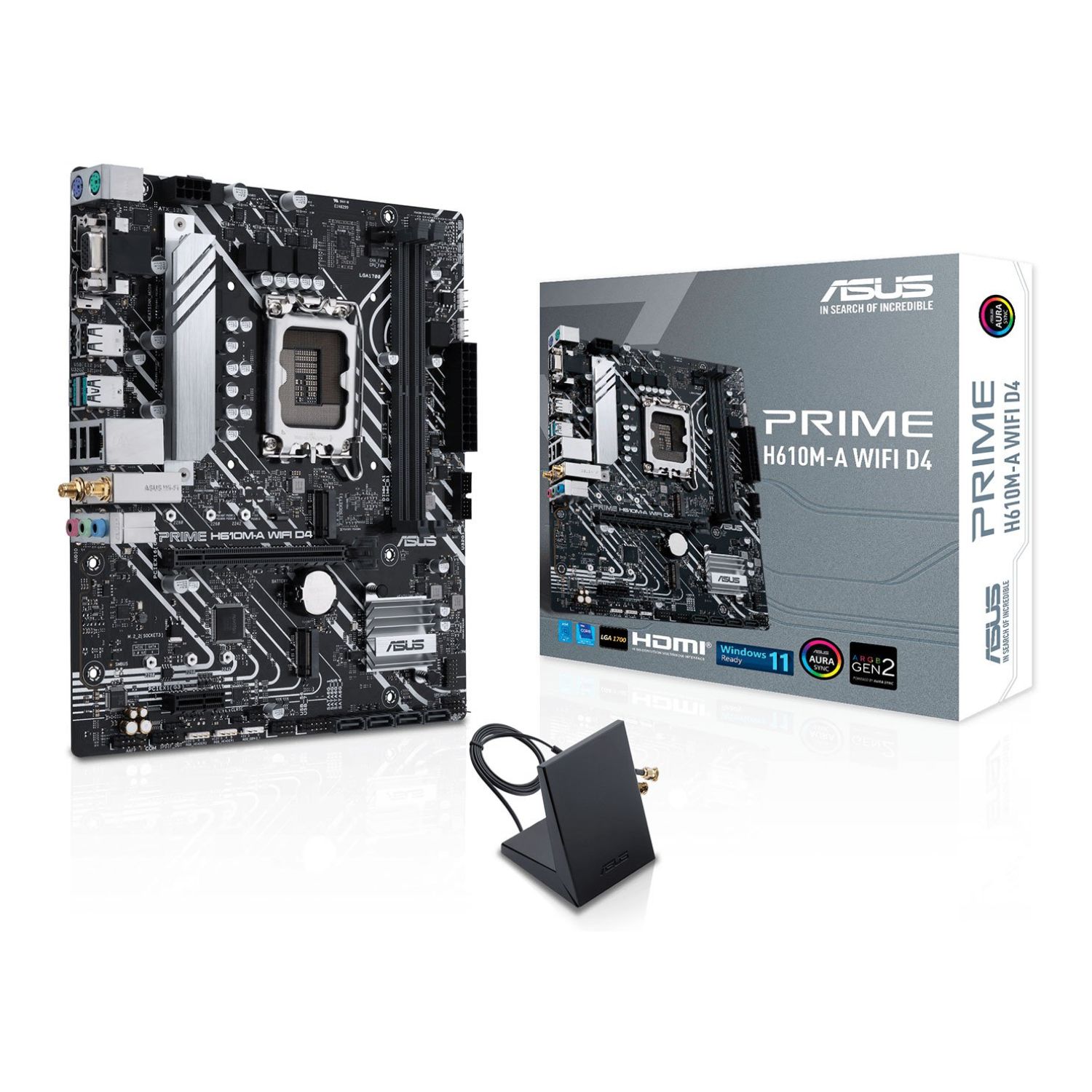

ASUS Intel H610 PRIME H610M-A WIFI D4 LGA 1700 DDR4 micro ATX Motherboard

SKU
90MB1C80-M0EAY0

Highlights

  • DDR4 Memory
  • Intel H610 Chipset
  • LGA 1700 Socket
  • micro ATX Form Factor
  • HDMI | USB 3.2 | VGA | Keyboard | Mouse
  • Black Colour
  • 3 Years Warranty
  • 90MB1C80-M0EAY0
More Info Add to Wishlist
£106.99 inc. VAT.

Finance

Order by 3pm
for Free Next Day
Delivery*

Easy
Returns

Pay over 3 Months
with 0% Interest*

Product Description




Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

COOLING

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Dual M.2 slots (up to 32 Gbps)

Prime H610M-A WIFI D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe 4.0

Prime H610 motherboards are designed specifically for 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 2 ports

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.




Wi-Fi 5

PRIME H610M-A WIFI D4 has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps* transfer speeds to ensure that every connected user experiences the best wireless and online speeds!
*Actual speed varies, and depends on networking conditions.

Intel 1 Gb Ethernet

Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 Headers

Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

Overvoltage Protection

World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

LANGuard

Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Note: The content above is generic for the series.
For Correct info about this particular model, please refer to Specifications section.

Technical Specifications

Condition
Condition New
Product Identifiers
MPN 90MB1C80-M0EAY0
EAN 4711081758211
Type Motherboard
Form Factor micro ATX
Brand ASUS
Series PRIME
Model PRIME H610M-A WIFI D4
Memory (RAM)
Memory 2 x DIMM, Max. 64GB, DDR4
Memory Type DDR4
Ports & Interfaces

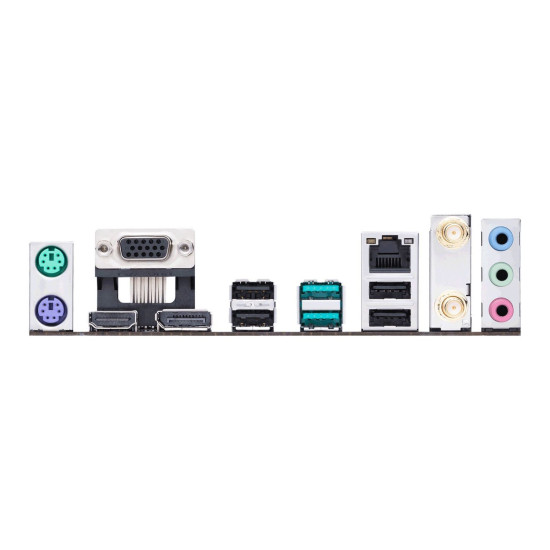

Connectivity HDMI | USB 3.2 | VGA | Keyboard | Mouse
Expansion Slots PCI Express | M.2
I/0 Ports 1 x 24-pin (Power), 4 x SATA III - 6Gb/s, 1 x 4-pin CPU Fan Connector
Features
Water Cooled No
Key Specifications
Compatible Brand Intel
Socket Type LGA 1700
Chipset Intel H610
Ethernet 1 x Intel (Gigabit LAN)
Other Specifications
Warranty 3 Years
Colour Black
Dimensions 244 x 211 mm
