Poly SoundPoint IP Backlit Expansion Module for SoundPoint IP 650 SIP desktop IP phone.

This high-performance attendant console is designed to boost productivity for administrative assistants, receptionists, and power users who manage high call volumes. By integrating seamlessly with your Polycom SoundPoint IP 650, this module provides a sophisticated user interface that simplifies call handling and monitoring.

Product Overview

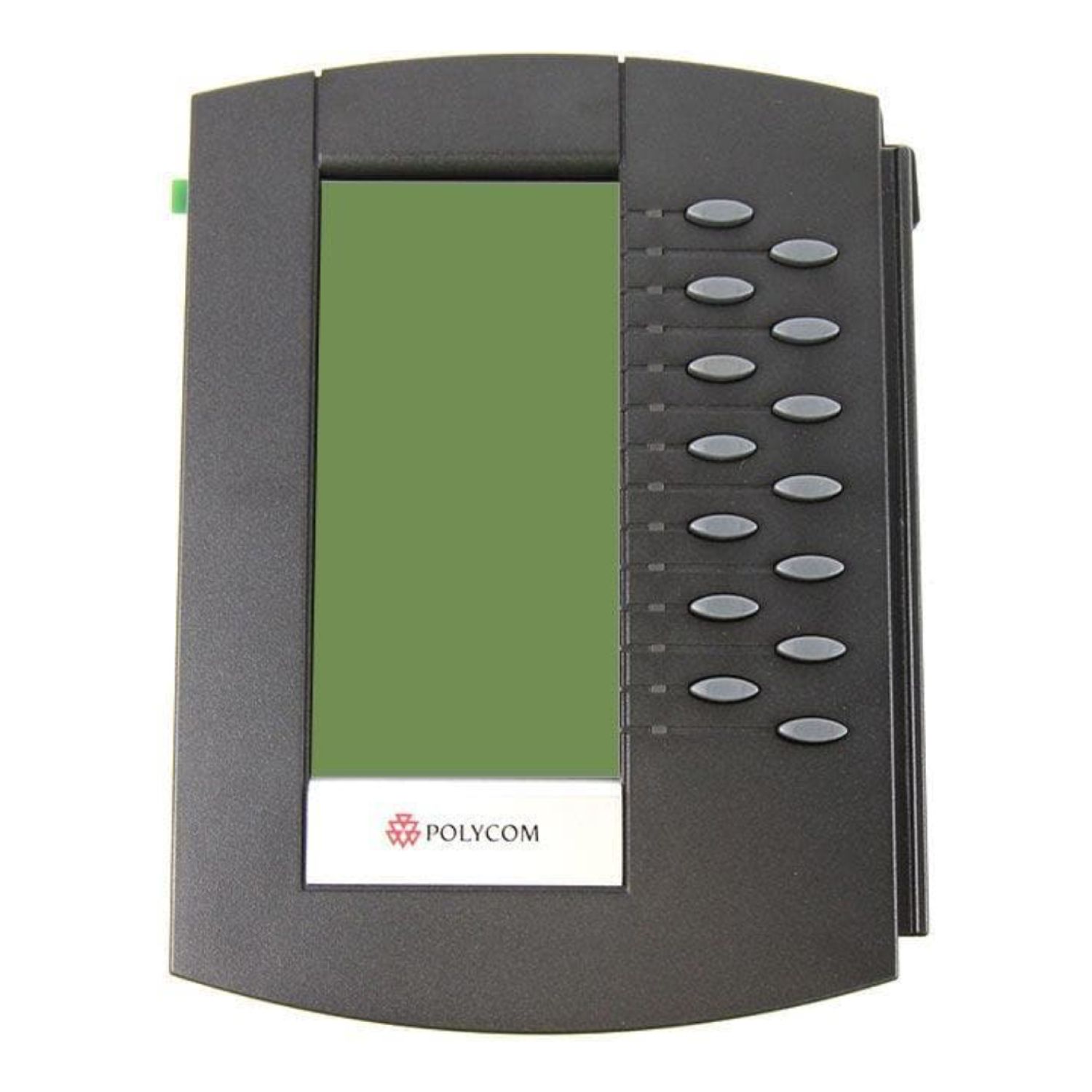

The Polycom SoundPoint IP Backlit Expansion Module (2200-12750-025) expands your desk phone’s capabilities with a high-resolution graphical display and 14 programmable keys. Its backlit screen ensures clear visibility in any lighting, maintaining a uniform look with your host IP 650 phone.

Technical Specifications

Expansion Keys: 14 multifunctional keys, each equipped with dual-color (red/green) LEDs for instant status notification.

Display: 160 x 320 pixel grayscale graphical LCD with a dedicated backlight.

Advanced Functionality: Supports line appearances, speed dials, Busy Lamp Field (BLF), and Direct Station Select (DSS).

Daisy-Chain Scalability: Connect up to three modules to a single phone for a total of 48 additional programmable keys.

Installation: Plug-and-play setup; it snaps directly onto the host phone using the built-in docking connector—no extra cables required.

Power: Draws power directly from the host phone for a single-module setup; multiple modules require an external AC adapter for the phone.
