Mid-Range AMD RX 9060 XT Graphics Cards - Specs & Features

If you're shopping for a powerful mid-range graphics card in 2025, the AMD Radeon RX 9060 XT has likely caught your eye. It's the latest addition to AMD's new Radeon RX 9000 Series lineup, offering a balance of high-performance gaming capabilities and efficiency without pushing into premium-tier pricing. Designed with mainstream PC gamers and creators in mind, AMD RX 9060 XT Graphics Cards sit squarely in the sweet spot for high refresh 1080p and smooth 1440p gaming.

Let's take a detailed look at what makes the RX 9060 XT a strong contender in this competitive space, covering its specs, features, supported technologies, and who it's best suited for.

AMD Radeon RX 9060 XT Graphics Card: An Overview

The RX 9060 XT belongs to the Radeon RX 9000 Series, built with the needs of modern desktop systems in mind. AMD positions this card for incredible gaming performance right out of the box, and it supports a wide range of operating systems, including Windows 10, Windows 11 (64-bit editions), and Linux x86.

From a power and design standpoint, the RX 9060 XT is practical. It uses a single 8-pin power connector, draws around 160W of board power, and requires a minimum 450W PSU, making it accessible for most mid-tier builds.

AMD Radeon RX 9060 XT Specifications

Before we get into the finer details of performance and features, here's a full breakdown of the RX 9060 XT's core specifications. If you're planning a new build or looking for an upgrade, this table gives you everything you need to know at a glance.

Core GPU Architecture and Compute Power

At the heart of the RX 9060 XT are 32 Compute Units, supported by 32 Ray Accelerators and 64 AI Accelerators. This configuration suggests that AMD has kept a close eye on modern gaming needs, particularly those relying more on real-time ray tracing and AI-assisted workloads like upscaling or frame interpolation.

Its Game Frequency is set at 2530 MHz, with Boost Frequencies pushing up to an impressive 3130 MHz. This ensures stable performance in demanding titles while also providing performance headroom for more intensive workloads.

The card offers excellent compute throughput with the following:

• 51.3 TFLOPs peak half-precision performance
• 25.6 TFLOPs peak single-precision performance
• 821 TOPs INT4 and 410 TOPs INT8, making it very capable for AI and inference tasks

With a peak pixel fill rate of up to 200.3 GP/s and 2048 stream processors, the AMD 9060 GPU handles high frame rates in today's visually complex games without sacrificing efficiency.

Memory and Bandwidth

One of the most notable strengths of the RX 9060 XT lies in its memory setup. It comes equipped with 16GB of GDDR6 memory, clocking speeds of up to 20 Gbps. The memory interface is 128-bit, with bandwidth reaching up to 320 GB/s — a significant leap in raw throughput compared to previous mid-tier AMD GPUs.

Also included is AMD's 32MB Infinity Cache, which acts as a high-speed buffer to reduce latency and boost data access. This combination allows the AMD 9060 Graphics Cards to better manage large textures, frame buffers, and VRAM-intensive tasks like 4K media work or asset-heavy game environments.

Rendering and Media Capabilities

The RX 9060 XT is also built with content creators and media enthusiasts in mind. It supports a broad range of hardware encoding and decoding formats, including:

• H264 and H265/HEVC for both decoding and encoding
• AV1 decode and encode support
• Full HDMI 2.1b and DisplayPort 2.1a outputs
• HDMI 4K compatibility for high-resolution displays

Whether you're editing 4K footage, streaming high-quality video, or using a multi-monitor setup, the RX 9060 XT has the right features in place to deliver clean visuals and reliable performance.

Display Outputs and Connectivity

On the I/O front, AMD keeps it simple yet future-ready. The RX 9060 XT includes DisplayPort 2.1a and HDMI 2.1b outputs, ensuring support for high-resolution monitors and 4K displays. These newer standards open the door for 144Hz+ 1440p and 4K displays, variable refresh rate technologies, and advanced display features like HDR10 and DSC.

For gamers, this means smoother gameplay with fewer frame drops and stuttering. For content professionals, it means colour-accurate displays and seamless multi-monitor support.

Supported AMD Technologies

One of the biggest advantages of using RX 9060 XT GPUs is the smart software that runs alongside them. AMD has steadily built a robust ecosystem of tools under the Adrenalin Software umbrella, giving users full control over how their GPU performs, looks, and behaves in everyday use.

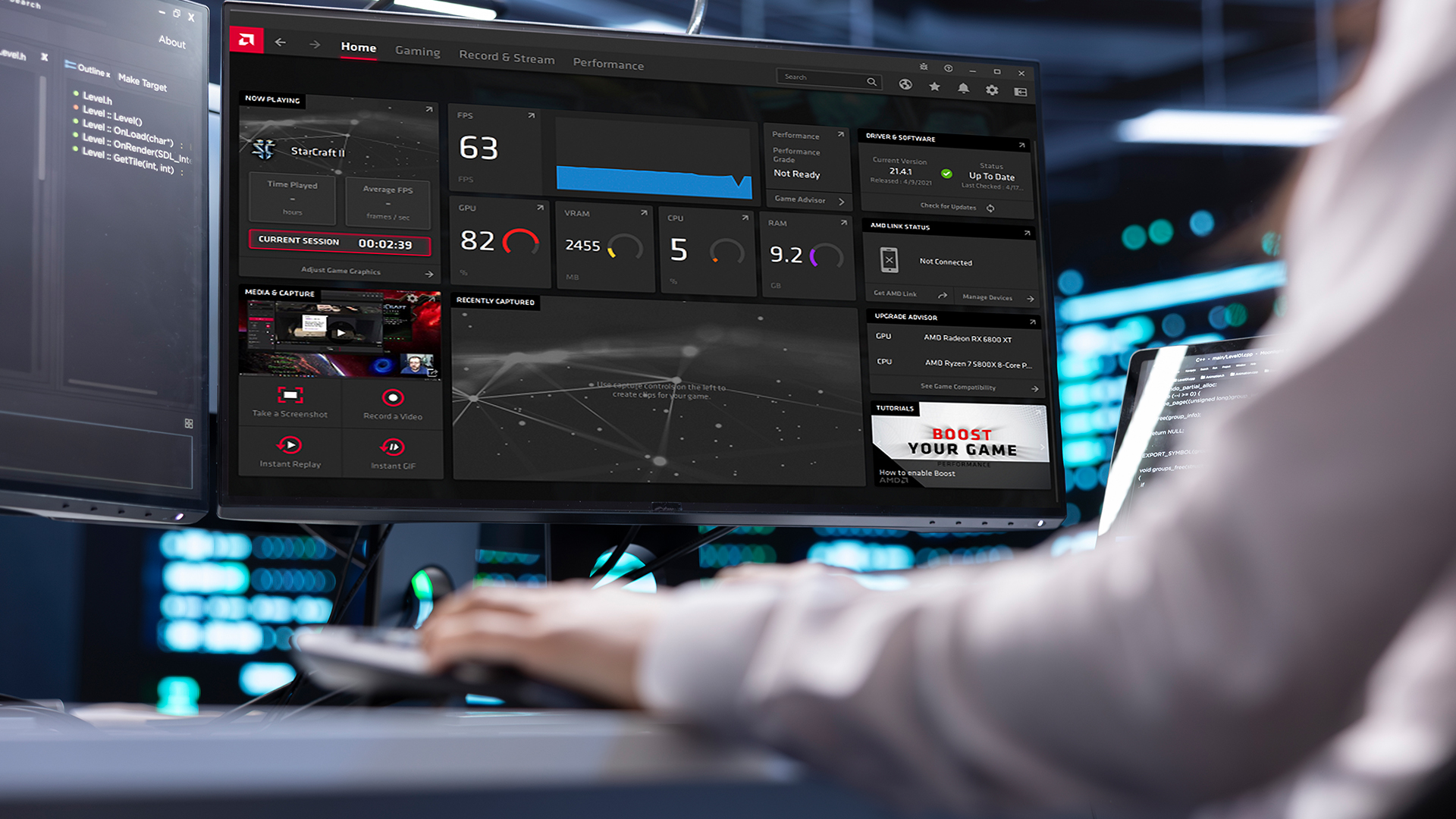

AMD Adrenalin Software Edition

This is your central hub for managing the card. It lets you fine-tune clock speeds, monitor real-time performance, update drivers easily, and even record gameplay without external tools.

FidelityFX Super Resolution 4 (FSR 4)

FSR 4 is AMD's AI-driven upscaling technology, which lifts frame rates in demanding games without sacrificing image clarity. It is perfect for pushing higher frame rates at 1440p or making newer titles more playable on affordable 9060 XT setups.

Fluid Motion Frames

Aimed at smoothness, this feature inserts interpolated frames between real ones to create a higher frame-per-second experience. It can help older games feel more responsive.

Radeon Super Resolution (RSR)

If FSR isn't supported in a game, RSR has you covered. It works universally across titles, ideal for anyone using affordable graphics cards who still wants premium performance.

AMD Noise Suppression

Noise Suppression uses AI to clean up your mic feed during streaming, voice chat, or meetings.

Smart Access Memory (SAM)

Paired with a Ryzen CPU, SAM improves performance by unlocking more efficient VRAM access.

Enhanced Sync and Radeon Chill

These features help reduce lag, screen tearing, and power draw — great for everyday users or performance-focused gamers running the AMD RX 9060 XT Graphics Cards.

Gaming Performance

While AMD has yet to publish official benchmarks at the time of writing, based on the specs alone, the RX 9060 XT appears optimised for 1080p ultra and 1440p high settings with headroom to spare. The high clock speeds and efficient architecture will ensure that games like Cyberpunk 2077, Call of Duty: Warzone, Baldur's Gate 3, and Fortnite run exceptionally well — even with ray tracing enabled.

Games that support FSR 3.1 and beyond will especially benefit from the AI and compute-focused design baked into the AMD 9060 GPU. Add support for AV1 encoding, and you'll get a card that plays games well and handles streaming with minimal performance hit.

Who Should Buy the AMD RX 9060 XT Graphics Cards?

This card is aimed at a mid-range market, but its capabilities reach well into the territory of higher-end models from the previous generation. It's ideal for:

• PC Gamers upgrading from older RX 5000 or 6000 cards
• Streamers and Creators who need encoding power without investing in workstation cards
• 1440p Enthusiasts looking for the best balance between performance and value
• Builders on a budget want a solid GPU that won't require a high-wattage PSU or full tower case

Thanks to its single 8-pin connector and 160W draw, the 9060 XT easily fits existing builds — another reason it stands out among affordable graphics cards in its class.

The Value Proposition

One of AMD's biggest wins with the RX 9060 XT is how much performance it delivers for the money. Priced at approximately £350 to £400, this GPU confidently targets the sweet spot between budget and high-end. At this price point, it competes directly with Nvidia's RTX 4060 Ti but brings some solid advantages to the table. You're getting 16GB of GDDR6 memory (compared to 8GB on many mid-range rivals), full support for DisplayPort 2.1a and HDMI 2.1b, and future-ready encoding for AV1, H.265, and beyond.

Compared to the RX 7600 XT, which is priced around £220 but comes with just 8GB of VRAM and narrower memory bandwidth, the 9060 XT price gets you far better futureproofing and performance headroom for 1440p gaming — a genuine step up in AMD's GPU roadmap.

Final Thoughts

The AMD RX 9060 XT Graphics Cards are among the best mid-range options available in 2025. With their balanced blend of power, efficiency, and advanced software features, they bring serious performance to gamers and creators without the premium price tag. Whether building a new rig or upgrading an existing one, this card ticks the right boxes for modern gaming, streaming, and content creation.

With features like DisplayPort 2.1a, AV1 encoding, 16GB GDDR6 memory, and over 800 AI TOPs performance, the Radeon RX 9060 is ready for the future without making your PC sweat.

AMD Radeon RX 9060 XT Graphics Cards: FAQs

1. Is the AMD RX 9060 XT good for 1440p gaming?

Yes, the AMD RX 9060 XT is designed for smooth 1440p gaming. With 16GB of GDDR6 memory and a boost clock of up to 3130 MHz, it handles modern AAA titles at high settings without breaking a sweat.

2. How does the RX 9060 XT compare to the RX 7600 XT?

The RX 9060 XT offers double the VRAM (16GB vs 8GB), higher compute performance, and support for AV1 encoding. It's a better choice for users seeking more power and futureproofing beyond 1080p.

3. What power supply do I need for the AMD RX 9060 XT?

AMD recommends a minimum 450W PSU. The RX 9060 XT draws around 160W and uses a single 8-pin power connector, making it ideal for most mid-range and compact PC builds.

4. Does the Radeon RX 9060 support ray tracing and AI features?

Yes, the Radeon RX 9060 XT includes 32 Ray Accelerators and 64 AI Accelerators, enabling real-time ray tracing, upscaling technologies like FSR 4, and AI-enhanced performance for modern games.

5. Is the AMD RX 9060 XT a good upgrade from older AMD GPUs?

Absolutely. If you're upgrading from older models like the RX 5700 or RX 6600 XT, the RX 9060 XT delivers major improvements in memory, compute power, and gaming performance, all at an affordable price point.
